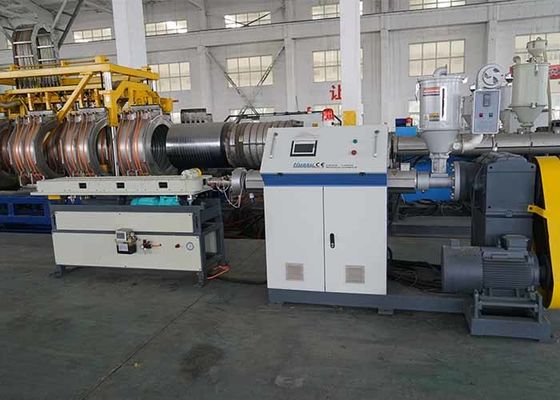

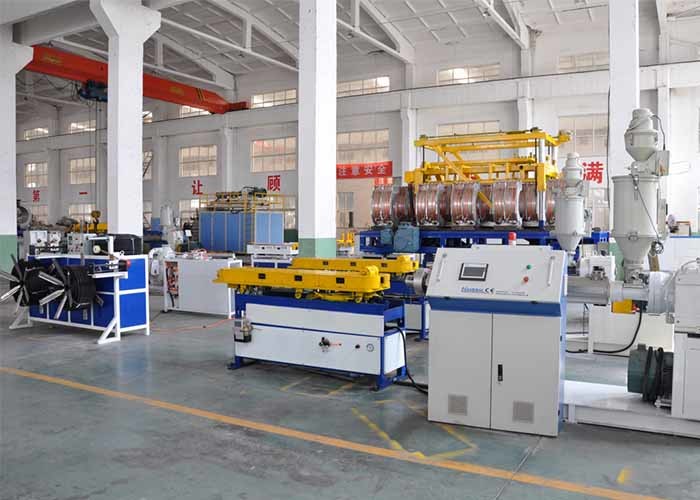

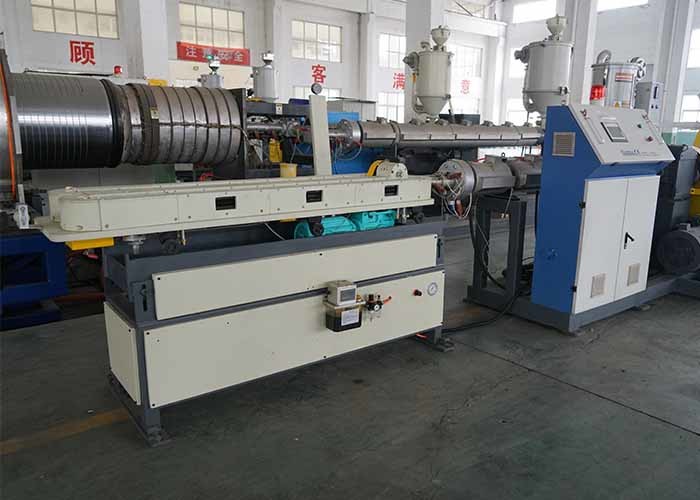

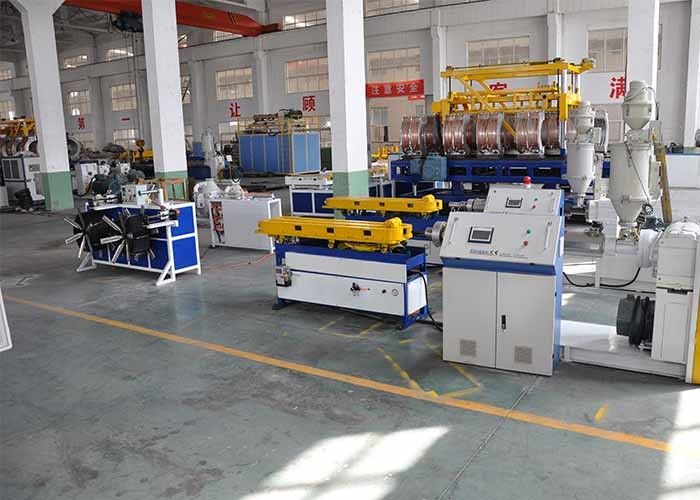

OD 23mm 22kw 80kg/H Single Wall Corrugated Pipe Line
| Place of Origin | CHINA |
|---|---|
| Brand Name | SD HUASU |
| Certification | CE, ISO9001:2008, UL, QS, GMP |
| Model Number | SBG 63H |
| Minimum Order Quantity | 1 SET |
| Packaging Details | STANDARD PACKAGE |
| Delivery Time | 30 WORKING DAYS |
| Payment Terms | T/T |
| Supply Ability | 50 SETS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pipe Diameter | ID 16-50 Mm | Extruder | SJ 65/30 |
|---|---|---|---|
| Max. Output | 80kg/h | AC Motor | 22kw |
| Inverter | ABB | Feeding System | Auto |
| Total Power | 25kw | ||
| Highlight | 80kg/H Corrugated Pipe Line,22kw Corrugated Pipe Line,OD 23mm Corrugated Pipe Line |
||
Product Description
80kg/H Output High Speed Single Wall Corrugated Pipe Line SBG-50 22kw Motor
General Information
- Special request from Customer:
- Specialism:
- Products:
- Application: Electrical conduct, Water drainage
- Pipe length: according the customer’s inquiry
- Recommended raw material:
- Pipe list and pressure grade:
| NO. | Internal Diameter( mm) | Outside Diameter ( mm) | Remark |
| 1 | 16 | ||
| 2 | 23 |
Environment Condition
| Location | Workshop |
| Power Supply | No dangerous area, No power stop area |
| Humidity degree | ≤95% |
| Temperature | 0-36℃ |
Work Condition
| Power | 380V/3phase/50HZ |
| Total Power | 25kw |
| Cooling Water | Recycling water. ≤20℃, ≥0.3Mpa, ～0.5T/h |
| Compressed air | 0.3m3/min, ＞0.5Mpa |
| Line Dimension | 6.5m/1.5m/1.5m |
Main Technical Performance
| Extruder | Motor | Max Output | Note |
| SJ55/30 | 22kw | 80kg/h |
1. The output capacity varies with the materials and the operation conditions.
2. Line speed: According to the thickness, pipe stander and operation condition.
3. Operation direction: From Right to Left.
4. The color of the line: HUASU standard color.
5. Remains the right to improve the specification of the line, if there is any modification in the future customer will not be informed.
Equipment Configuration
| No. | Name & Model | Quantity | |
| 1.0 | Single Screw Extruder SJ-55/30 | 1 set | |
| 2.0 | Molds | die head & mould block (16mm,23mm) | 2 sets |
| 3.0 | Forming Machine | 1 set | |
| 4.0 | Winding Machine | 1 set | |
| 5.0 | PLC Control System | 1 set | |
Detailed technical information
1.0 Single-Screw Extruder SJ-55/30
--Screw hardness of screw HV>740
--Barrel hardness of barrel HV>940
--Material 38CrMoAlA nitriding handling
--Depth of barrel nitriding 0.5--0.7mm
--Depth of screw nitriding 0.4-0.6mm
--Diameter of screw 55mm
--L:D 30:1
Heating& Cooling
--Barrel heating zone 3 zones×4kw
--Barrel cooling zone 3 zones×0.06kw
--Die head heating zone 2zones
Driving
--Drive power 22kw
--Frequency Conversion Hitachi, japan
--Wheel Box hard gear surface
2.0 Molds
2.1 Die Head
--Specification φ16,φ23mm
--Material 40Cr
--Heating loop Stainless steel
2.2 Mould Blocks
--Specification φ16,φ23mm
--Amount 70 pairs
--Mold Block Total Length 70×56.55 = 4071.6mm
--Cooling type Water cooling
3.0 Forming Machine
--Template cooling base water cooling
--Template Material cast iron process
--Transmission Type track transmission
--Mold closing length 1310mm
--Deceleration Box worm wheel,worm wheel deceleration box 1 set
Gear wheel deceleration box 1 set
--Max. Speed 21 m/min
--Drive Power 3kw motor Frequency Conversion
--Meter Counting Type influence
4.0 Auto Winding Machine
--Driving Toque motor
--Winding plate inner220*outer600*width260mm
--Max. length 50m/r
5.0 PLC Control System
--Electric parts use Siemens
--PLC Siemens
