80rpm HDPE Double Wall Corrugated Pipe Extrusion Line

80rpm HDPE Double Wall Corrugated Pipe Extrusion Line

HDPE Corrugated Pipe Extrusion Line

Single Screw Pipe Extrusion Line

80rpm Corrugated Pipe Extrusion Line

Place of Origin:

CHINA

Brand Name:

SD HUASU

Certification:

CE, ISO9001:2008, UL, QS, GMP

Model Number:

SBG

Contact Us
Request A Quote

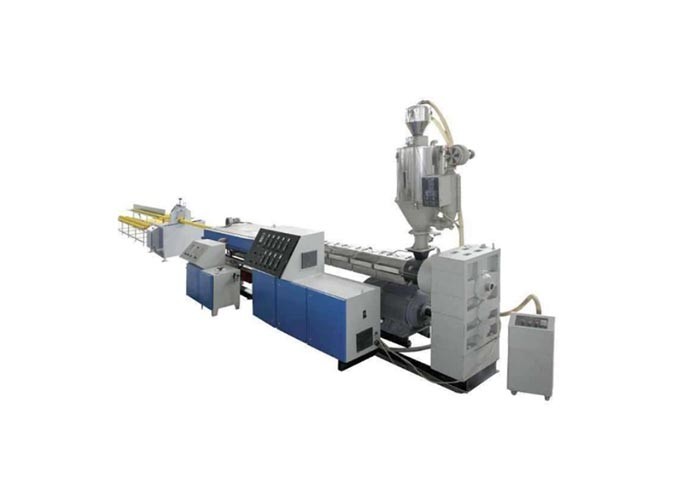

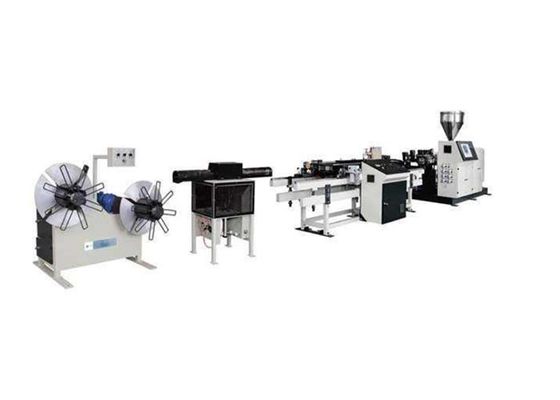

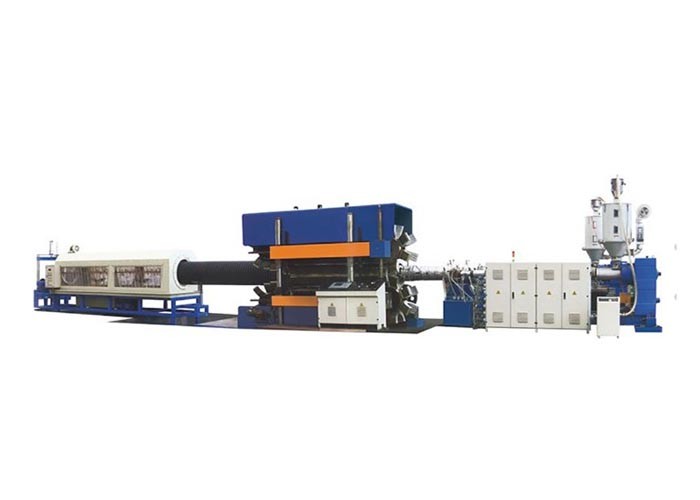

80rpm HDPE Double Wall Corrugated Pipe Extrusion Line 80rpm HDPE Double Wall Corrugated Pipe Extrusion Line 80rpm HDPE Double Wall Corrugated Pipe Extrusion Line
Product Details
Screw Design:
Single-screw
Screw L/D Ratio:
33:1
Application:
PIPE
Screw Diameter:
65mm
Screw Speed (rpm):
80 Rpm
Highlight:

HDPE Corrugated Pipe Extrusion Line

,

Single Screw Pipe Extrusion Line

,

80rpm Corrugated Pipe Extrusion Line

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Packaging Details
STANDARD PACKAGE
Delivery Time
30 WORKING DAYS
Payment Terms
T/T
Supply Ability
50 SETS/MONTH
RELATED PRODUCTS
Good price 32-1600mm Pipe Diameter DWC Pipe Extrusion Line with 60-2000kg/h Capacity and Automatic Production Line online Video

32-1600mm Pipe Diameter DWC Pipe Extrusion Line with 60-2000kg/h Capacity and Automatic Production Line

Get Best Price
Good price Conical Twin-screw Extruder DWC Pipe Extrusion Line for 32-1600mm Pipe Diameter and 60-2000kg/h Capacity online Video

Conical Twin-screw Extruder DWC Pipe Extrusion Line for 32-1600mm Pipe Diameter and 60-2000kg/h Capacity

Get Best Price
Good price DWC Pipe Extrusion Line with 32-1600mm Pipe Diameter 60-2000kg/h Capacity and Siemens PLC Technology for High Efficiency online Video

DWC Pipe Extrusion Line with 32-1600mm Pipe Diameter 60-2000kg/h Capacity and Siemens PLC Technology for High Efficiency

Get Best Price
Good price Dual Wall Corrugated Pipe Production Line with 32-1600mm Pipe Diameter 60-2000kg/h Capacity and Siemens PLC Technology online Video

Dual Wall Corrugated Pipe Production Line with 32-1600mm Pipe Diameter 60-2000kg/h Capacity and Siemens PLC Technology

Get Best Price
CONTACT US
Contact Now
Product Description

380V 50HZ 3Phase (Customized) HDPE Double Wall Corrugated Pipe Extrusion Line

Adopts extruding and forming process, has the features of reliable quality and high efficiency. Compared with other plastic pipe wall structure, double wall corrugated pipe has excellent wall structure design, its low weight reach the lower production cost and improve the market competitiveness.
It is widely used in various field instead of concrete pipe and iron pipes, because it has excellent features such as: easy
connected and accessories installed, and quality reliable.



80rpm HDPE Double Wall Corrugated Pipe Extrusion Line 080rpm HDPE Double Wall Corrugated Pipe Extrusion Line 1

Screw extruter
Extruder type
PVC :conical double screw extruder
PE: high-effective single screw extruder



Die head
Materail: high quality alloy steel, nitrogen treatment
Equipped with stainless steel heater
The die head structure designed reasonably, running channel distribute uniformly, it could ensure extrusion steadily.

Mould

Quantity: 72 pairs of mold blocks.
Material: Adopt good mechanical properties cast aluminium alloy. and process high fatigue strength,and good abrasion resistance.
Type Pipe ID (mm) Max production capacity (kw/h) Energy Consumption (kw)
SJ-55/30 Φ10-Φ32 80 40
SJ-65/30 Φ20-Φ63 120 55
SJ-75/33 Φ50-Φ160 250 85
SJ-90/33 Φ75-Φ250 300 110
SJ-90/33 Φ110-Φ315 400 130
SJ-120/33 Φ250-Φ630 800 300
SJ-150/33 Φ315-Φ800 1100 380
SJ-120/38 Φ710-Φ1200 1300 480

Our service

Perfect service system:
1.We will provide the Feasibility Analysis Report for the wood-plastic project.
2.We will provide the model selection and technical parameter for wood-plastic machinery.
3.We will provide the design for the plant and electric power accounting for the facilities.
4.We will provide the design for wood-plastic formula according to the product requirements.
5.We will provide the technology of wood-plastic product surface treatment
6.We will provide technique training for operator.
7.We will provide solution for the practical problem during the production.
8.We will install and test the machine for free.
9.We will provide turnkey project to customers.
