Name: SJ75/33+90/33 Extruder
Original: CHINA
The extruder use buffer forced feeding,the main drive motor power consumption reduces 30%.extrusion system uses a 33:1 large L/D
ratio for higher efficiency and more stable product extrusion.
wall thickness adjustment of die head can be adjusted while machine is running. Therefore production volume is increased and
material loss is reduced.
All Products
Contact Person :
Sisi Zhao
Phone Number :
+86-13853290988
Single Screw Aluminum Corrugated DWC Pipe Extrusion Line
| Place of Origin | CHINA |
|---|---|
| Brand Name | SD HUASU |
| Certification | CE, ISO9001:2008 |
| Model Number | SDHS |
| Minimum Order Quantity | 1 SET |
| Packaging Details | STANDARD PACKAGE |
| Delivery Time | 45 WORKING DAYS |
| Payment Terms | T/T |
| Supply Ability | 30 SETS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Screw Design | Single Screw | Plastic Processed | PP, PVC, HDPE, HDPE/PP, PE/PP |
|---|---|---|---|
| Place Of Origin | Shandong, China | After-sales Service | Rovided: Video Technical Support, Free Spare Parts, Field Installation |
| Marketing Type | Hot Product 2021 | Processing Type | Exturding Machine |
| Color | Customer's Requirement | ||
| Highlight | Corrugated DWC Pipe Extrusion Line,Single Screw DWC Pipe Extruder,Aluminum DWC Pipe Extrusion Line |
||
Product Description
Shandong Factory Price PE PP PVC Extruder Double Wall Corrugated Pipe Production Line
Aluminum pipe forming mould,specializing in the production of large diameter pipe. Through the overall optimization design of the waveform structure, can achieve the perfect combination of high ring stiffness and low. The forming machine adopts the powerfull water-cooled and air-cooled corrugated forming system,which can ensure the high production speed during continuons production.
| No | name | Qty |
| 1 | SJ90/33 singe screw extruder | 1set |
| 2 | SJ75/33 single screw extruder | 1set |
| 3 | Die head | 1set |
| 4 | forming mould | 1set |
| 5 | forming machine with water cooled | 1set |
| 6 | 4m spray water tank | 1set |
| 7 | saw dust Cutting machine | 1set |
| 8 | stacker | 1set |

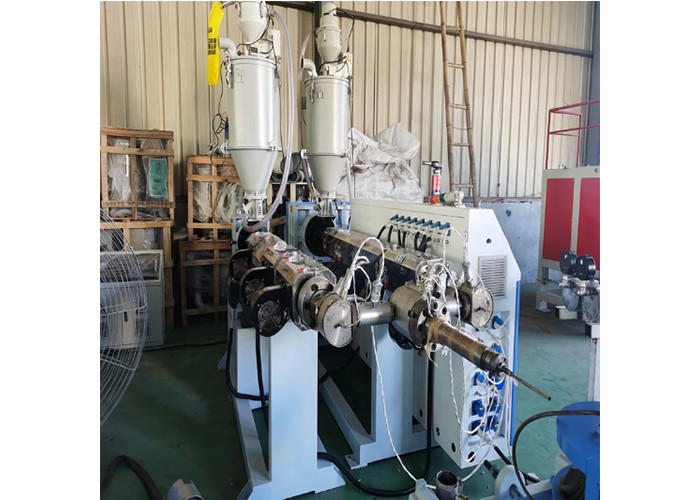

1. SJ75/33+SJ90/33 single screw extruder
2.Die head
1)Material:High-quality Alloy Steel
2)Nitriding Treatment
3)With the adjustment of pads, wall thickness adjustable.
4)Combined nose, reasonable structure, uniform distribution of flow channel, to
ensure a smooth extrusion.
5)Stereotyped use of high-quality stainless steel water jacket materials, materials, through a complicated shape, and cold roll
annealing process to ensure the processing performance and physical performance
2)Nitriding Treatment
3)With the adjustment of pads, wall thickness adjustable.
4)Combined nose, reasonable structure, uniform distribution of flow channel, to
ensure a smooth extrusion.
5)Stereotyped use of high-quality stainless steel water jacket materials, materials, through a complicated shape, and cold roll
annealing process to ensure the processing performance and physical performance
3.Aluminum forming mould
Forming Mould made of mechanical and physical properties of cast aluminum alloy material with high fatigue resistance, abrasion
resistance and strength
resistance and strength
4.High speed forming mould
Our Advantages: our corrugator(forming machine) is high speed design,speed can get 2.8-4m/min. Corrugated moulding machine with a
new horizontal structure layout, compared with the vertical structure layout, the machine is more riglower center of gravity,
running more smoothly, more convenient for operation and maintenance
new horizontal structure layout, compared with the vertical structure layout, the machine is more riglower center of gravity,
running more smoothly, more convenient for operation and maintenance

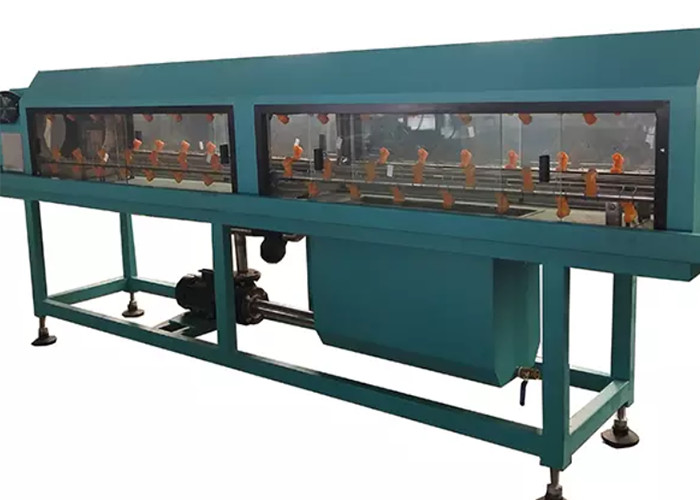

5.Spray water tank
5.spray water tank
1) The cooling water tank adopts double-sided side-opening structure, which is easy to operate and maintain
2) Tank materials: stainless steel
1) The cooling water tank adopts double-sided side-opening structure, which is easy to operate and maintain
2) Tank materials: stainless steel
6.Saw dust cutting machine
1) No chip cutting, hydraulic feeding mechanism, high precision, ensure smooth section
2) Clamping mode: pneumatic clamping;
3) The PLC control system is controlled and equipped with standard communication interface to facilitate the connection with
compatible devices
2) Clamping mode: pneumatic clamping;
3) The PLC control system is controlled and equipped with standard communication interface to facilitate the connection with
compatible devices
7.stacker
1) The height of the feeding rack is adjusted by electric power, which is convenient to operate
2) Equipped with thoughtful protective devices to ensure the safety of the production site.
2) Equipped with thoughtful protective devices to ensure the safety of the production site.
