Water Supply 180kw 160mm HDPE Pipe Extrusion Line

  • Water Supply 180kw 160mm HDPE Pipe Extrusion Line
  • Water Supply 180kw 160mm HDPE Pipe Extrusion Line
  • Water Supply 180kw 160mm HDPE Pipe Extrusion Line
  • Water Supply 180kw 160mm HDPE Pipe Extrusion Line
  • Water Supply 180kw 160mm HDPE Pipe Extrusion Line
Place of Origin CHINA
Brand Name SD Huasu Brand
Certification CE, ISO9001:2008, UL, QS, GMP
Model Number SD HUASU
Minimum Order Quantity 1 SET
Packaging Details STANDARD PACKAGE
Delivery Time 30 WORKING DAYS
Payment Terms T/T
Supply Ability 50 SETS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pipe Diameter 75/90/110/115/140/160 Other Diameter Available
Total Power 180kw Extruder 90/30 Bigger One For Extrude Pipes
Extruder 30/25 Smaller One For Extrude Color Lines Fro Marking
Highlight

160mm HDPE Pipe Extrusion Line

,

180kw HDPE Pipe Extrusion Line

,

GMP HDPE Pipe Extrusion Line
Leave a Message
Product Description

Domestic And Urban Water Supply Pipes Machine Supplier For PE Plain Pipe Manufacturer

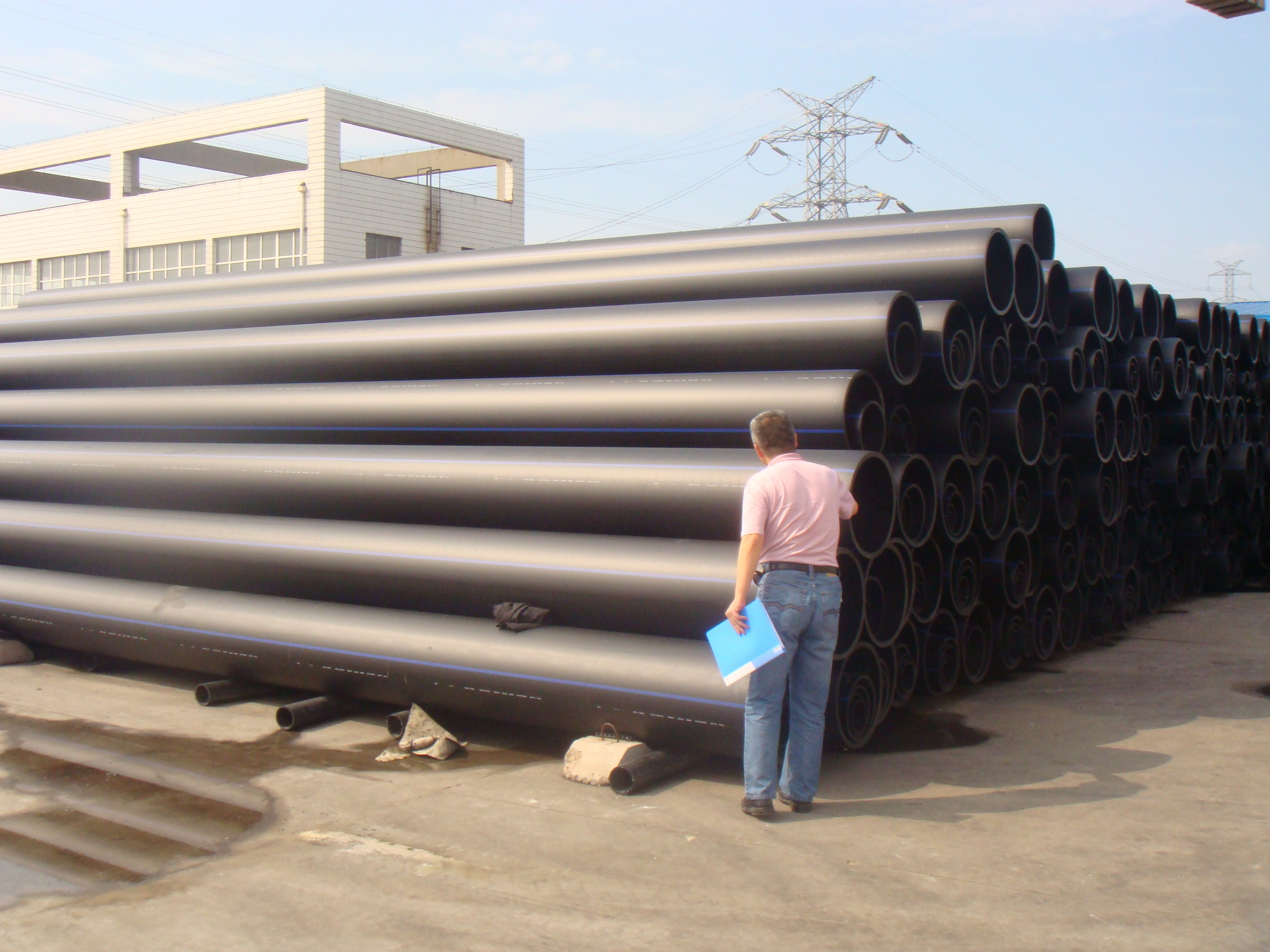

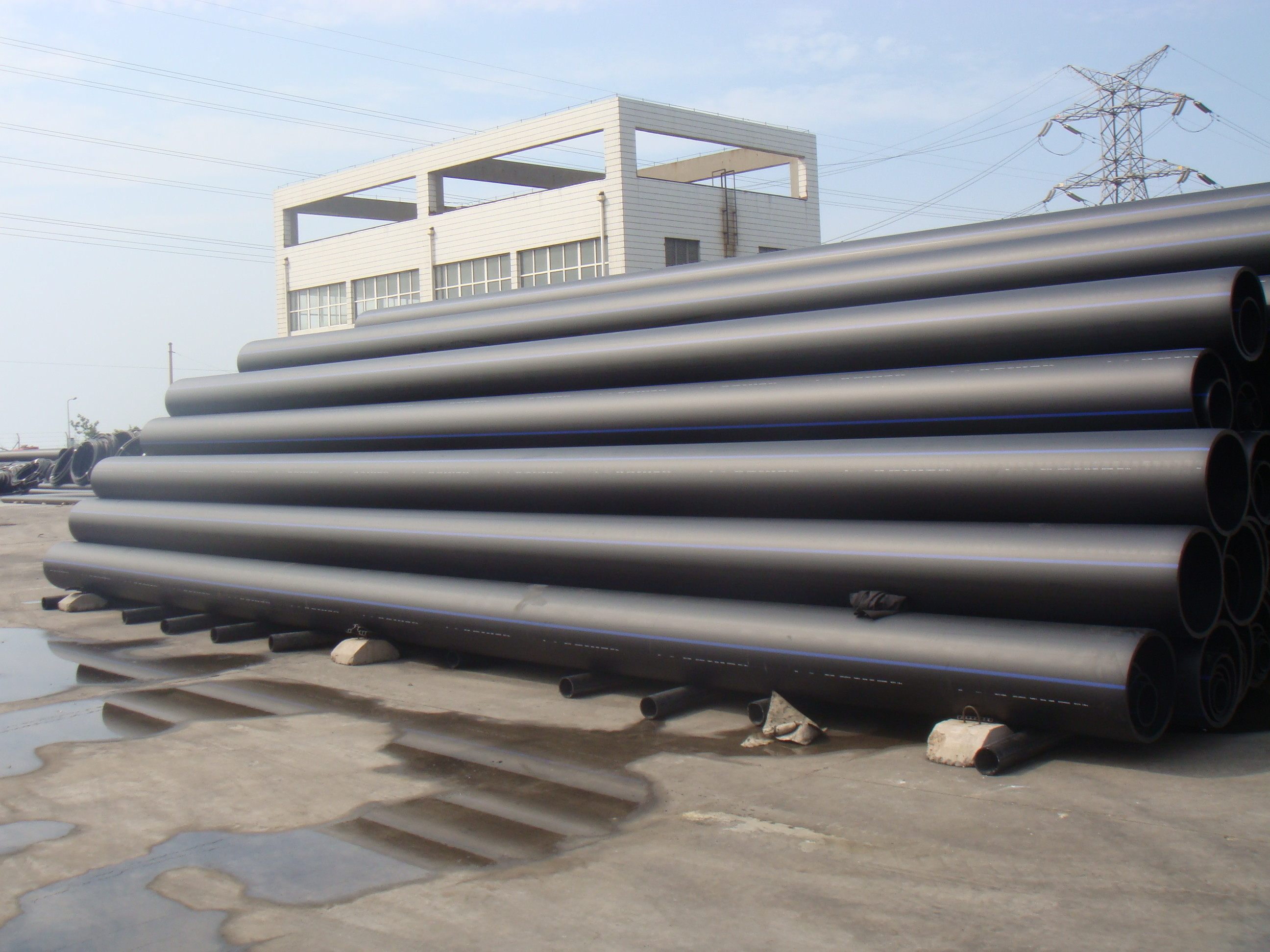

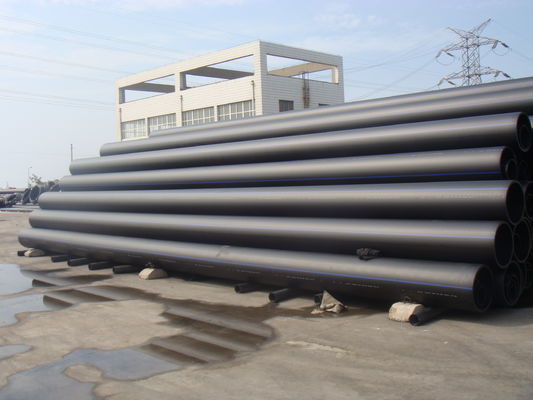

  • Products
  • Application: Water supply and gas distribution
  • Pipe length: according the customer’s inquiry
  • Recommended raw material: PE80, PE100 material for PE pipe
  • Pipe list and pressure grade:



NO.



Inner Diameter( mm)



Outside Diameter ( mm)



Remark


1   75
2   90
3   110
4   125
5   140
6   160



Environment Condition



Location  Workshop
Power Supply

No dangerous area, No power stop area


Humidity degree  ≤95%
Temperature  0-36℃



Work Condition



Power  380 V x 50 Hz x 3 Phase

Total Power



 180kw

Cooling Water



 Recycling water. ≤20℃, ≥0.3Mpa, ～7M3/h

Compressed air



 0.3m3/min, ＞1.2Mpa

Line Dimension



 47 m *2.7 m * 2.5 m



Main Technical Performance



Extruder



Motor



Max Output



Note


SJ90/30 75kw 260kg/h
SJ30/25 1.5kw 10kg/h



Equipment Configuration



No.



Name&Model



Quantity


1.0 Single Screw Extruder SJ 90/30  1set
2.0 Single Screw Extruder SJ 30/25 1set

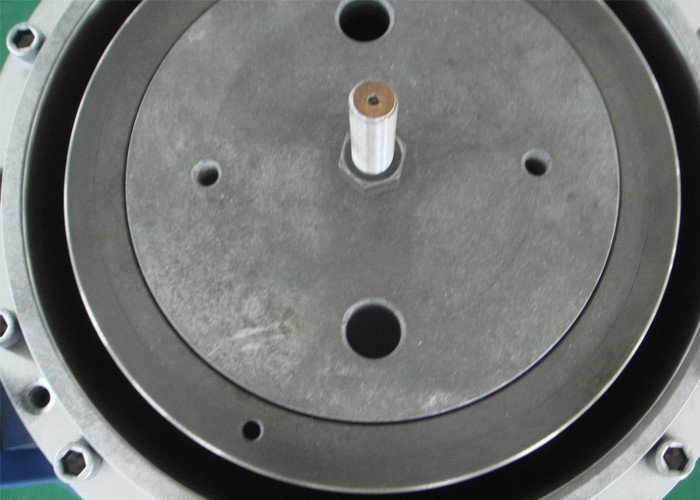

3.0 Die head  1set

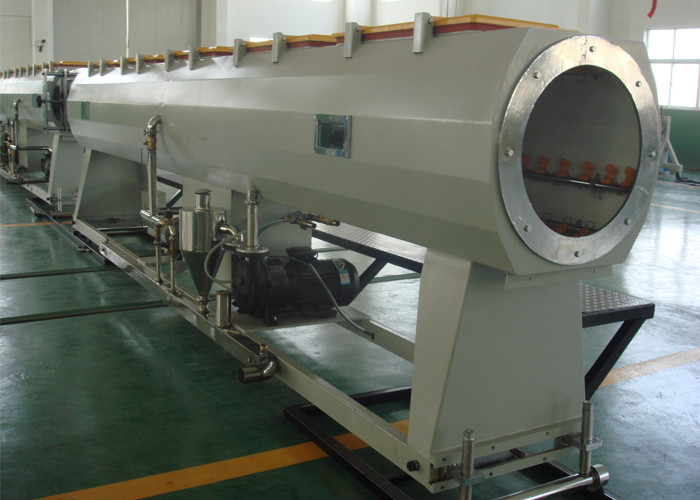

4.0 Vacuum Tank  1set

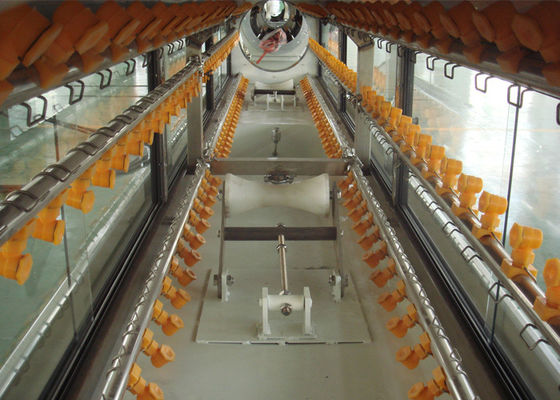

5.0 Water Spraying Cooling Tank  1set
6.0 Hauling—Off Machine  1set
7.0 Printer  1set
8.0 Planetary Cutting Machine 1set
9.0 Overturning Bracket  1set
10.0 PLC Control System PLC 1set



Water Supply 180kw 160mm HDPE Pipe Extrusion Line 0
