Huasu Brand Polyethylene Plain Pipe Manufacturing Machinery SRQG 400 Making Water Supply And Gas Distribution Pipes

Equipment Configuration

Application:

PE, PP pipe extrusion line is specially for pipes used in water pipe supply of house and industry, compress air transportation.

Advantages:

Good effect of plastication, up to 20m/min of small diameter pipes.

Stable haul-off unit, to make sure of high-quality pipes.

Special PLC control, with stable production.

High-speed extrusion.

Single Screw Extruder SJ 90/33

Screw hardness of screw HV>740

Material 38CrMoAlA nitriding handling

Barrel hardness of barrel HV>940

Material 38CrMoAlA nitriding handling

Depth of barrel nitriding 0.4--0.7mm

Depth of screw nitriding 0.3-0.6mm

Screw diameter 90mm

L: D 33:1

Heating & cooling

Barrel heating zone 6zones × 4.6kw

Barrel fan cooling 6zones × 0.25kw

Barrel heating power 27.6kw

Blower Taiwan Made SIROCCO FAN

Heater ceramic heater, inside with air groove, stainless steel cover

Driving

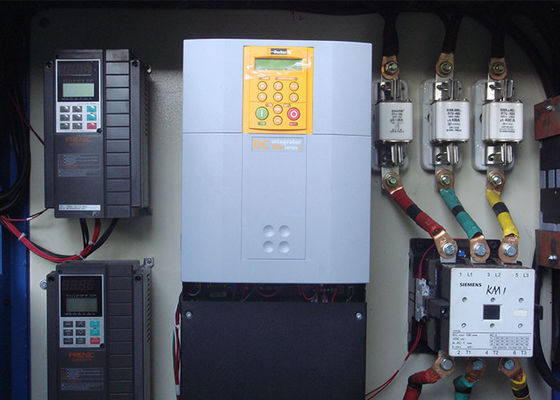

DC Motor 132kw

Converter ABB

            Over loading & Circuit wanting-phase protective

Gearbox Hard gear surface, bevel wheel

            nitriding &quencher treatment ,

Water cooling system, low noise

Gear material 20CrMnTi

Max Output 300-450kg/h

1.1 Automatic Material Feeding System

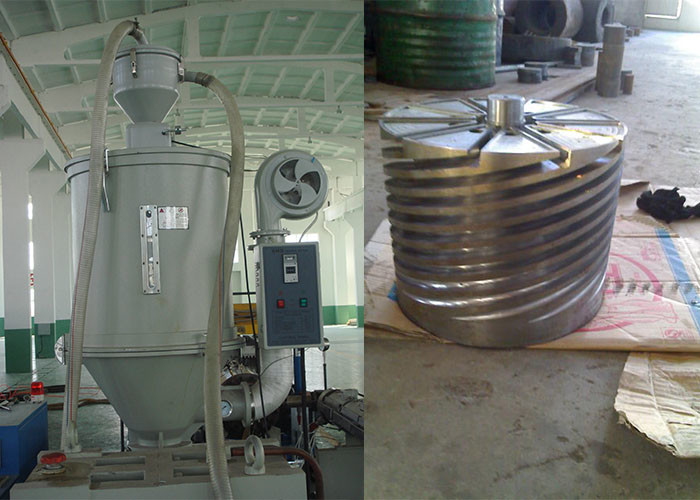

Auto Dryer 1pcs

            Material Auto-Loader 1pcs

Single Screw Extruder SJ 30/25

Screw hardness of screw HV>740

Material 38CrMoAlA nitriding handling

Barrel hardness of barrel HV>940

Material 38CrMoAlA nitriding handling

Depth of barrel nitriding 0.4--0.7mm

Depth of screw nitriding 0.3-0.6mm

Diameter of screw 30mm

Heating

Barrel heating zone 3 zones×1kw

Driving

Motor Power 1.5kw

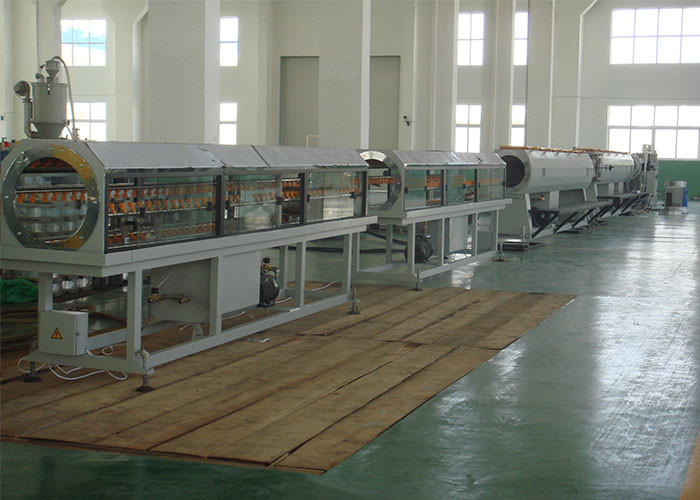

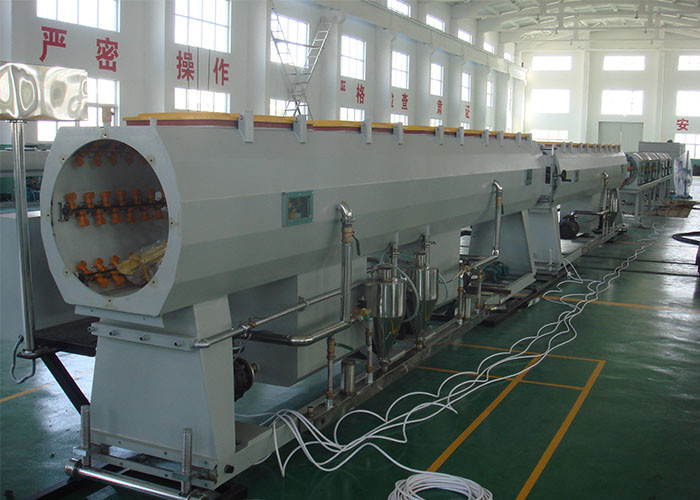

Raw material+master batches→mixing → vacuum feeding → material dryness → single screw extruder → basket co-extrusion mould → calibrator → spray vacuum calibration tank → spray cooling water tank → belt haul-off → single screw glue extruder → winder → winding roller forming → water cooler → pipe rack → finished product inspecting&packing
