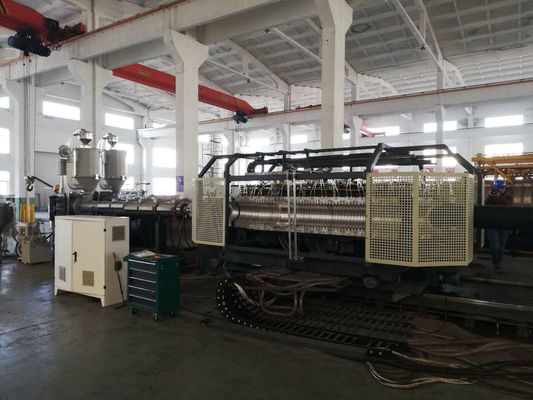

800kg/H Double Screw Corrugated Pipe Extrusion Line
| Place of Origin | CHINA |
|---|---|
| Brand Name | SD Huasu Brand |
| Certification | CE, ISO9001:2008, UL, QS, GMP |
| Model Number | high speed PE pipe extrusion line |
| Minimum Order Quantity | 1 SET |
| Packaging Details | STANDARD PACKAGE |
| Delivery Time | 30 WORKING DAYS |
| Payment Terms | T/T |
| Supply Ability | 50 SETS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pipe Diameter | 90mm-1200mm | Speed Type | High Speed |
|---|---|---|---|
| Output | High | Water Cooling | Standard Water Cooling Or Pressure Water Cooling Continuously |
| Brand | Shandong Huasu | ||
| Highlight | Double Screw Corrugated Pipe Extrusion Line,800kg/H Corrugated Pipe Extrusion Line,90mm Corrugated Pipe Extrusion Line |
||
Product Description
Double Screw Double Wall Corrugated Pipe Extrusion Line ISO / CE Certified
| NO. | Internal Diameter( mm) | Outside Diameter ( mm) | Remark |
| 1 | 200 | ||
| 2 | 250 | ||
| 3 | 500 | ||
| 4 | 630 |
Environment Condition
| Extruder | Motor | Max. Output | Note |
| SJ120/33 | 250kw | 800kg/h | |
| SJ90/33 | 132kw | 450kg/h |
| No. | Name & Model | Quantity | |
| 01 | Single screw extruder SJ-120/33 | 1 set | |
| 02 | Single screw extruder SJ-90/33 | 1 set | |
| 03 | Molds | OD 200mm die head water sleeve mould block | 1 set |
| OD 250mm die head water sleeve mould block | 1 set | ||
| OD 500mm die head water sleeve mould block | 1 set | ||
| OD 630mm die head water sleeve mould block | 1 set | ||
| 04 | Forming machine SBCJ-600 | 1 set | |

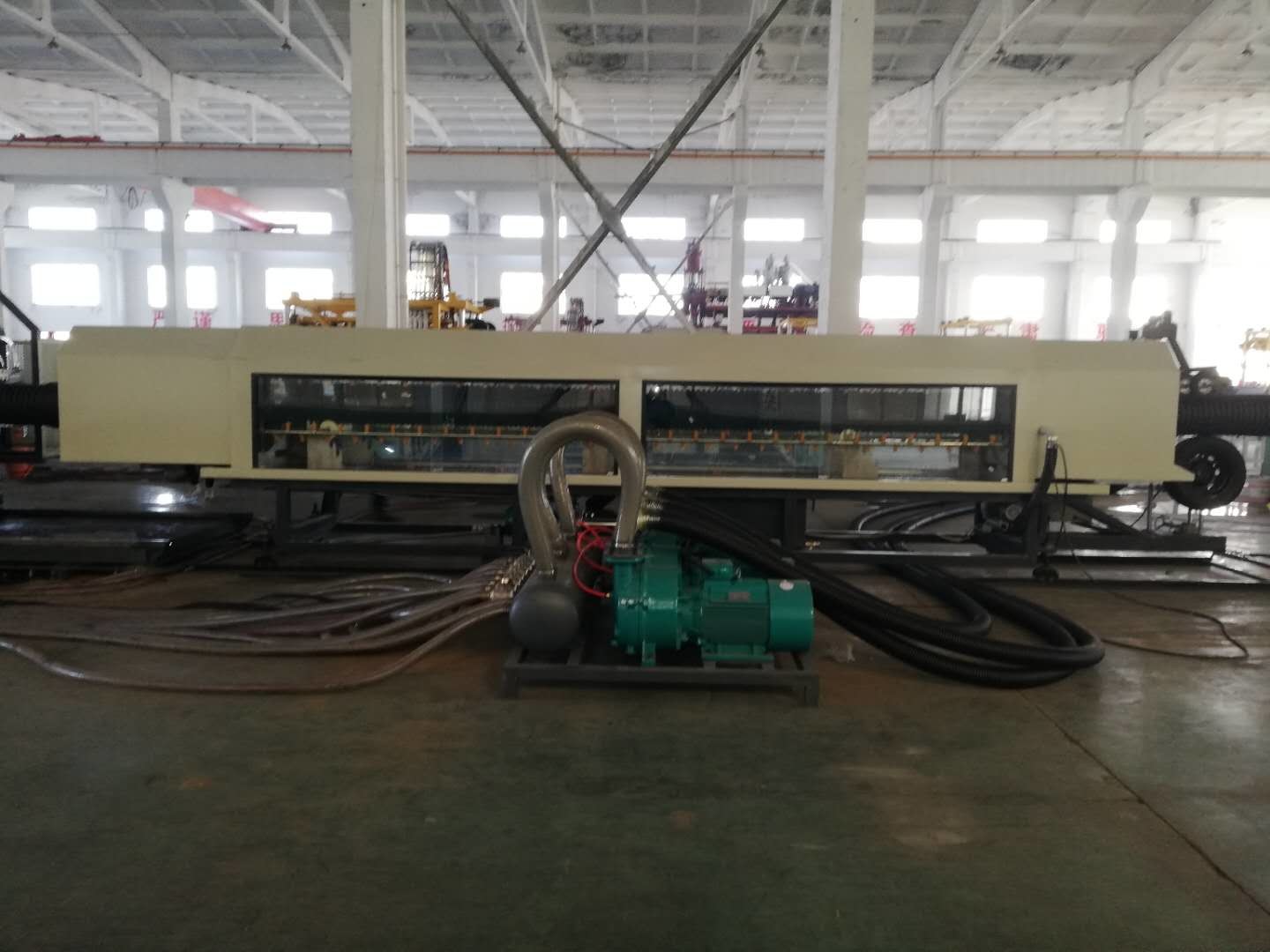

| 05 | Water cooling tank SBSC-600 with haul-off machine | 1 set | |
| 06 | Planetary chip free cutting machine SBQG-600 | 1 set | |
| 07 | Unloading bracket SBXL-600 | 1 set | |
| 08 | PLC control system | 1 set | |
| 09 | Spare parts | 1 set | |
1.0 Single Screw Extruder SJ-120/33
Screw structure: Spiral barrier type screw with mixing section, which greatly improves the plasticizing quality and output; especially suitable for high-efficiency extrusion of materials such as PEPP, and has a wide range of material adaptability;
Barrel structure: Segmented, asymmetrical slotting barrel design, the feed inlet has a water cooling system with automatic temperature control, which greatly improves the conveying efficiency of the feeding section;
Gearbox: The gearbox adopts a vertical structure, the cooling method is forced circulating oil cooling, with a circulating water cooling system. High torque, low noise, hard-tooth surface gear, gear grinding process, heavy-duty thrust bearing;
Automatic feeder, dryer: Automatic feeder inductive design, with material shortage alarm function. The dryer adopts an integrated design of drying and storage, automatic temperature control and intelligent display with all stainless steel lining;
Temperature control: Imported PLC control system, dual PID parameter temperature control, temperature control accuracy ±1℃;
Pipe Extrusion Production Line Introduction
1. This PVC pipe Extrusion line is designed with advanced west Europe technology.
2. The extruder is conical twin screw with double screw, it is mainly used for PVC powder.
3. And we are able to make PVC water supply pipe, drainage pipe, conduit pipe for your optional.
Applications
1 . This plastic extruder (conical two screw extruder, conical two-screw extruder, extruder, conical twin-screw extruder) machine is mainly used to process pp, pe, wpc, abs and other plastics.
2 . Equipped with auxiliary machines, it can manufacture profile, pipes, sheets and other plastic products and granulation.
3 . It has the advantage of simple production technological process, high output, stable quality and low cost.
SJZ Series conical double screw plastic extruders are especially suitable for various pvc powder to extrusion and molding.
4 . Equipped with different kinds of molds and auxiliary machines, it can produce various kinds of
pvc pipes, profiles, plates, bars and granulation.
