Place of Origin: | CHINA |
Brand Name: | SD Huasu Brand |
Certification: | CE, ISO9001:2008, UL, QS, GMP |
Model Number: | high speed PE/PP pipe extrusion line |
Minimum Order Quantity: | 1 SET |
---|---|
Packaging Details: | STANDARD PACKAGE |
Delivery Time: | 30 WORKING DAYS |
Payment Terms: | T/T |
Supply Ability: | 50 SETS/MONTH |
Outside Diameter: | 40mm-1500mm | Speed Type: | High Speed |
---|---|---|---|
Output: | Absolutly High Output | Water Cooling: | Pressure Water Cooling Continuously |
Brand: | Shandong Huasu | ||
High Light: | Double Wall Corrugated Pipe Extruder,Water Cooled Corrugated Pipe Extruder,40mm Corrugated Pipe Extruder |
Huasu machinery horizontal water-cooled double wall corrugated pipe production line / horizontal water-cooled double wall corrugated pipe equipment Huasu horizontal machine mainly produces PE (polyethylene) and PP (polypropylene) corrugated pipes, which are composed of extruder, extrusion die, molding machine, spray tank, haul-off machine, cutting machine, stacker, electric control system, etc. Suitable for OD40 - OD1500 specification, stable operation; using pressure water circulation cooling, fast production speed. The center has low height, convenient operation and maintenance, and high reliability.
Standard configuration of High Speed Type 800H
No. | Name & Model | Quantity | |
01 | Single screw extruder SJ-120/33 | 1 set | |
02 | Single screw extruder SJ-90/33 | 1 set | |

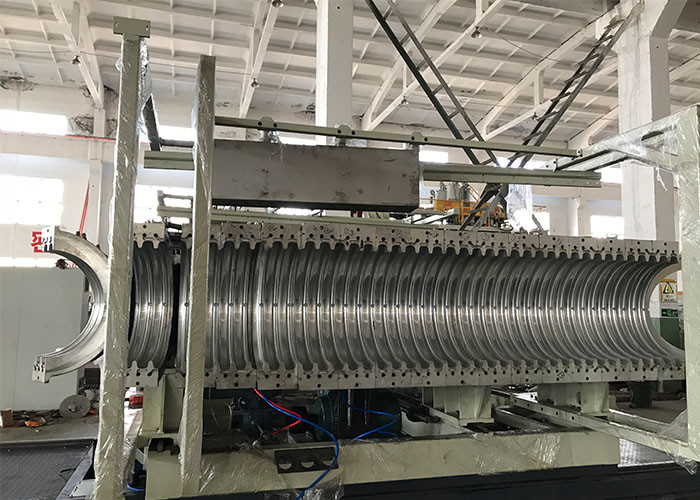

03 | Forming machine SBCJ-800H | 1 set | |
04 | Spray water tank SBSC-800H with haul-off machine | 1 set | |
05 | Planetary chip free cutting machine SBQG-800H | 1 set | |
06 | Unloading bracket SBXL-800H | 1 set | |
07 | PLC control system | 1 set | |
08
|

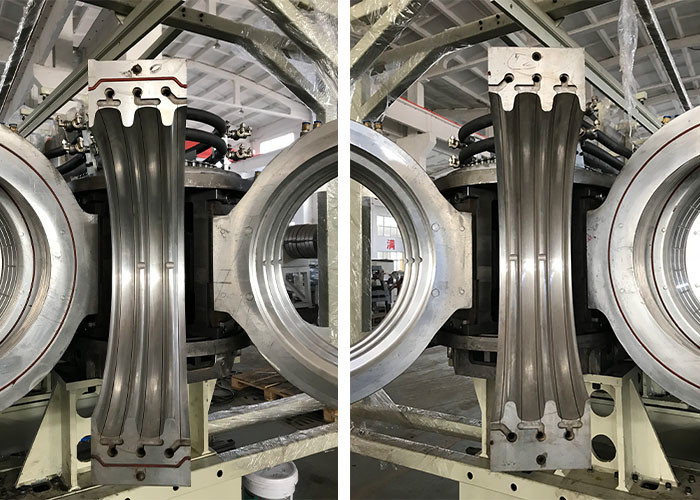

Molds including double-layer online expansion module
|
OD 250mm die head water sleeve mould block | 1 set |
OD 450mm die head water sleeve mould block | 1 set | ||
OD 800mm die head water sleeve mould block | 1 set | ||
OD 1000mm die head water sleeve mould block | 1 set | ||
09 | Spare parts | 1 set |
The photos are taken by Ellen Liu in the factory and please contact Ellen Liu for more details.
The configuration can be differents as your requirements.
