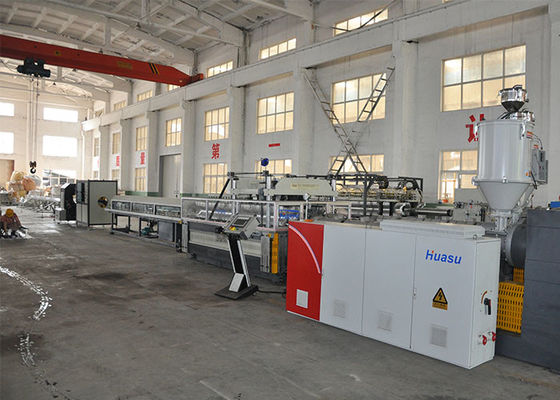

120kg/H 250mm Horizontal Corrugated Pipe Extrusion Line
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Inner Diameter | 90mm-250mm | Speed Type | Standard Production Speed |
|---|---|---|---|
| Output | Absolutly High Output | Cooling | Water Cooling And Air Cooling |
| Brand | Shandong Huasu | ||
| Highlight | 250mm Corrugated Pipe Extrusion Line,120kg/H Corrugated Pipe Extrusion Line,PLC Corrugated Pipe Extrusion Line |
||
Product Description
SBG250 Horizontal Structure Corrugated Pipe Extrusion Line For Making PE Wire Conduit Pipes
|
NO. |
Internal Diameter( mm) |
Outside Diameter ( mm) |
Remark |
| 1 | 90 | ||
| 2 | 110 | ||
| 3 | 160 | ||
| 4 | 200 | ||
| 5 | 250 |
|
Extruder |
Motor |
Max. Output |
Note |
| SJ90/30 | 75kw | 150-260kg/h | |
| SJ65/30 | 37kw | 60-120kg/h |
|
No.
|
Name & Model
|
Quantity
|
|

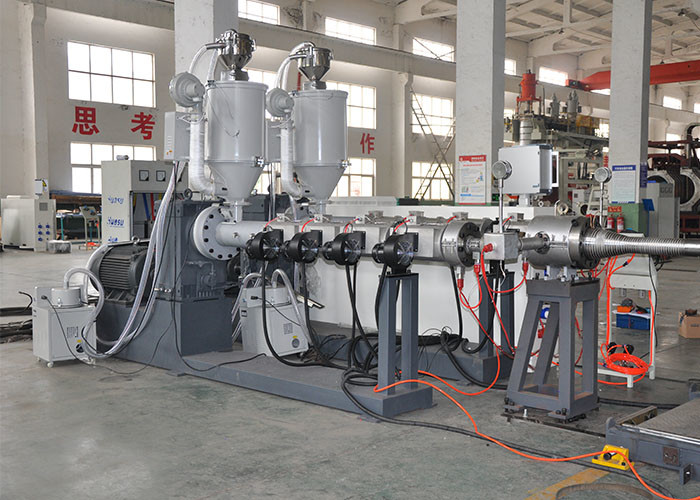

| 01 | Single Screw Extruder SJ90X30 | 1 set | |
| 02 | Single Screw Extruder SJ65X30 | 1 set | |
| 03 | Molds |
90mm die head water sleeve mould block 90mm |
5sets |
|
110mm die head water sleeve mould block 110mm |
|||
|
160mm die head water sleeve mould block 160mm |
|||
|
200mm die head water sleeve mould block 200mm |
|||
|
250mm die head water sleeve mould block 250mm |
|||

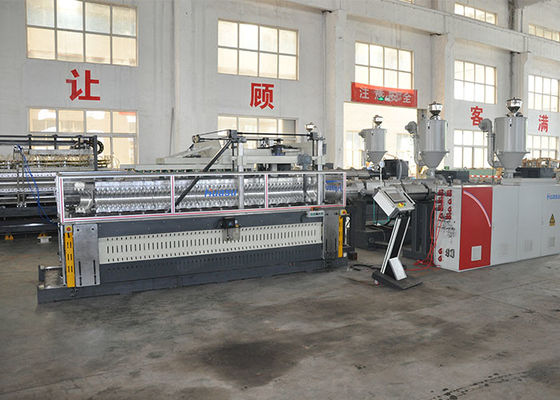

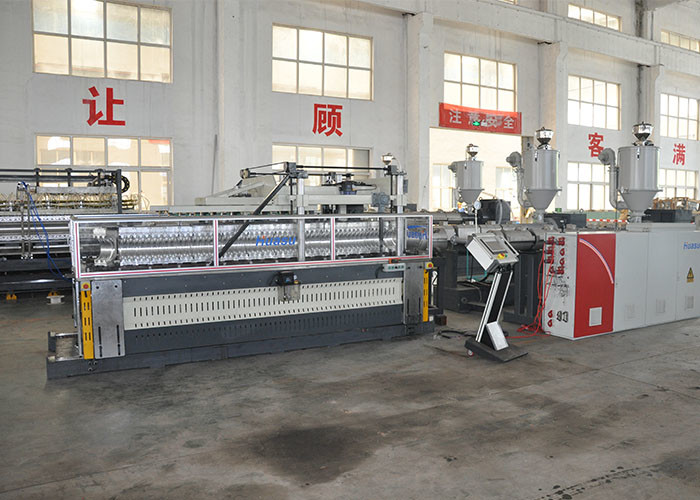

| 04 | Forming Machine SBCJ-315 | 1 set | |
| 05 | Cutting Machine STG-315 | 1 set | |
| 06 | Unloading Bracket | 1 set | |
| 07 | PLC Control System SBG 315 | 1 set | |
