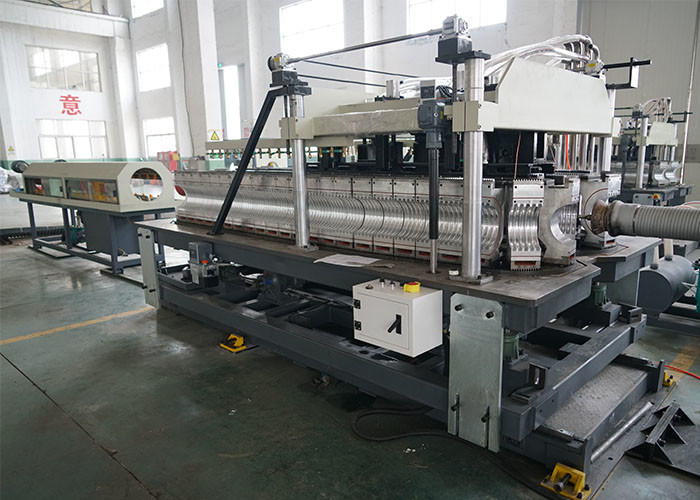

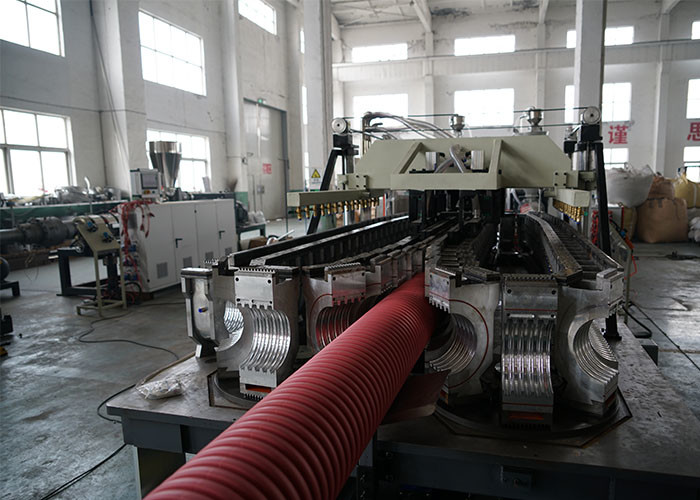

250mm Diameter Horizontal Structure Double Wall Corrugated Pipe Extrusion Line

Cofiguration List

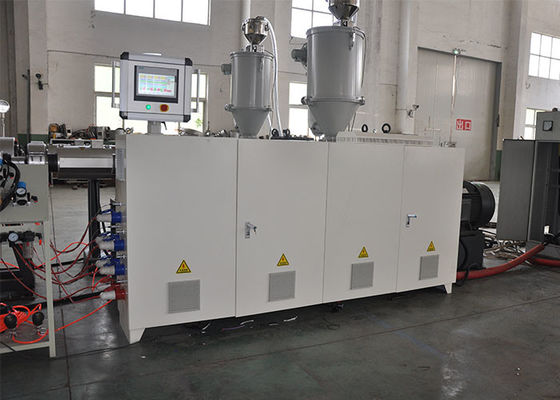

1. Single Screw Plastic Extruder SJ90X30

--Barrel screw Hardness of screw HV>740

--Material 38CrMoAlA Hardness of barrel HV>940

--Depth of barrel nitriding 0.4--0.7mm

--Depth of screw nitriding 0.3--0.6mm

--Diameter of screw 90mm

--L:D 30︰1

Heating& cooling

--Barrel heating zone 5 zones x 3kw

--Barrel cooling zone 5 zones x 0.18kw

--Power of barrel heating 15kw

Driving

--AC Motor 150—1500 r.p.m75kw

--Inverter ABB

--Wheel Box Gear driving

--Gear Material 20CrMnTi

--Gear Type Helical Gear

--Max. Output 260kg/h

Auto Material - feeding System

--Dryer 1pcs

--Vacuum Feeder 1pcs

2. Single Screw Plastic Extruder SJ65X30

--Material 38CrMoAlA Hardness of barrel HV>940

--Nitriding handling

--Depth of barrel nitriding 0.4--0.7mm

--Depth of screw nitriding 0.3-0.6mm

--Diameter of screw 65mm

--L:D 30︰1

Heating& cooling

--Barrel heating zone 4 zones x 3kw

--Barrel cooling zone 4 zones x 0.18kw

--Power of barrel heating 12kw

Please contact Ellen for more details. We could make the equipment as your requirements.

Spare Part

1. Rack 2 pcs/ spec

2. Sealing strip 5 m/ spec

3. Thermocouple 1 pce/ spec

4. Heating Zone Plug 1 pce/ spec

5. Vacuum Board Rubber 1 set

6. Link Plate 20 pcs

7. Pin 10 pcs

8. Heating Wire for die head& mouth mold 20 m
