300kg/H 150mm DWC Pipe Extrusion Line PLC Control
| Place of Origin | CHINA |
|---|---|
| Brand Name | SD Huasu Brand |
| Certification | CE, ISO9001:2008, UL, QS, GMP |
| Model Number | PE/PP pipe extrusion line |
| Minimum Order Quantity | 1 SET |
| Packaging Details | STANDARD PACKAGE |
| Delivery Time | 30 WORKING DAYS |
| Payment Terms | T/T |
| Supply Ability | 50 SETS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Molds | 150mm And 250mm | Extruder 1 | SJ-75/33 90KW |
|---|---|---|---|
| Extruder 2 | SJ-65/33 55KW | Max. Output | 300kg/Hour |
| Forming Machine | SBCJ-250 | Spraying Water Tank | SBSC-250 |
| Highlight | DWC Pipe Extrusion Line,150mm Corrugated Pipe Extrusion Line,300kg/H Corrugated Pipe Extrusion Line |
||
Product Description
Inner Diameter 150mm 250mm DWC Pipe Extrusion Line Machine Making Double Wall Corrugated Pipe
Pipe list and pressure grade:
| Internal Diameter( mm) | Outside Diameter ( mm) | Remark |
| 150 | ||
| 250 |

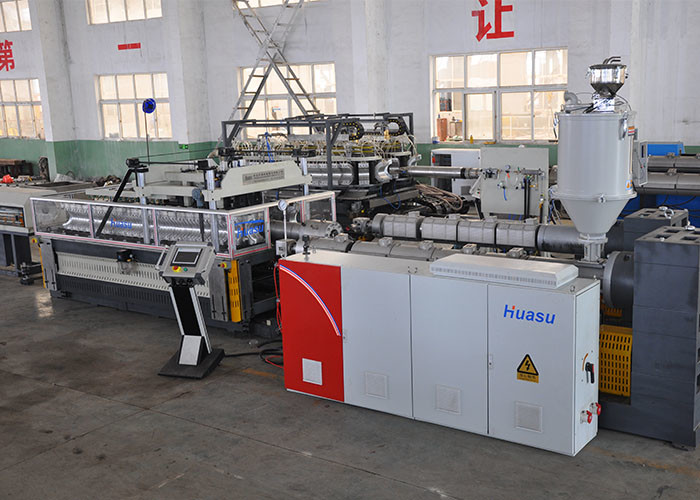

Production Line List
| No. | Name & Model | Quantity | |

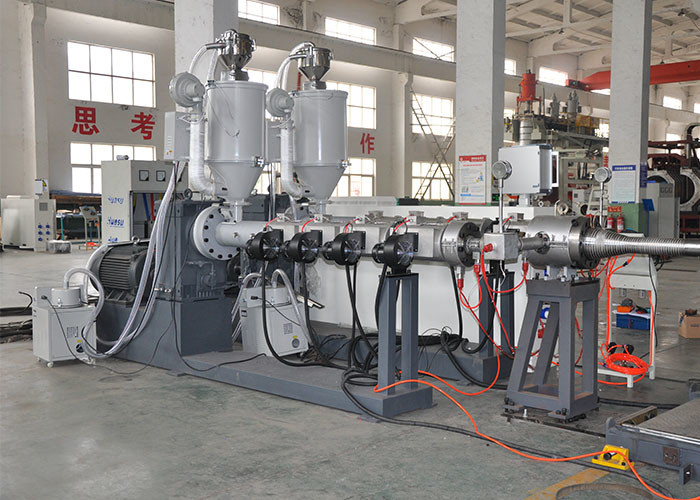

| 01 | Single Screw Extruder SJ75X33 | 1 set | |
| 02 | Single Screw Extruder SJ65X33 | 1 set | |
| 03 |
Molds
|
150mm die head water sleeve mould block | 2 sets |
| 250mm die head water sleeve mould block | |||
| 04 | Forming Machine SBCJ-250 | 1 set | |
| 05 | Spraying water tank SBSC-250 | 1 set | |
| 06 | Hauling-Off Machine | 1 set | |
| 07 | Cutting Machine SBQG-250 | 1 set | |
| 08 | Overturn Bracket SBXL-250 | 1 set | |
| 09 | PLC Control System | 1 set | |
Application: water drainage pipe or electric wire conduit pipe
Pipe length: 6m or according the customer’s inquiry
Recommended raw material: new PE material
More spec is available. Please contact Ellen Liu for more info.

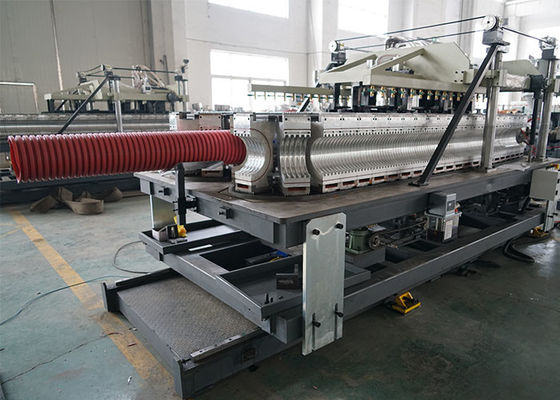

Forming machine adopts close forming mould chains, the opening design can make moulds and mould bracket matches exactly and each pair of moulds can be interchanged.
The mold base is made of high-quality alloy and tempered and nitrided. The dovetail groove is used for accurate positioning between the mold base and the module, mechanically locked, and easy to change specifications.
The gliding part on the work-table made by 40Cr, and it adopts iron nitriding technology to strengthen the surface, which has long time use life.
