Place of Origin: | CHINA |
Brand Name: | SD Huasu Brand |
Certification: | CE, ISO9001:2008, UL, QS, GMP |
Model Number: | PE/PP pipe high speed extrusion line |
Minimum Order Quantity: | 1 SET |
---|---|
Packaging Details: | STANDARD PACKAGE |
Delivery Time: | 30 WORKING DAYS |
Payment Terms: | T/T |
Supply Ability: | 50 SETS/MONTH |
Molds: | 250mm-1000mm | Extruder 1: | SJ-120/33 315KW |
---|---|---|---|
Extruder 2: | SJ-90/33 132KW | Max. Output: | 450kg/Hour |
Forming Machine: | SBCJ-1000 | Spraying Water Tank: | SBSC-1000 |
High Light: | 800mm HDPE Pipe Extrusion Machine,450kg/H HDPE Pipe Extrusion Machine,120mm Screw Pipe Extrusion Machine |

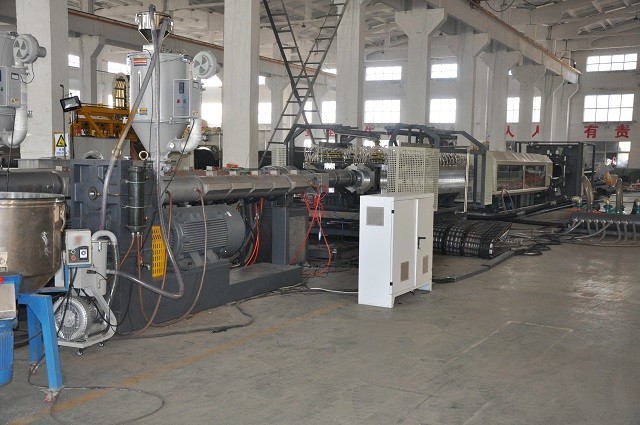

800mm Water Drainage And Electrical Conduit PE/PP Pipe Making Line Production Line
No. | Name & Model | Quantity | |
01 | Single screw extruder SJ-120/33 | 1 set | |
02 | Single screw extruder SJ-90/33 | 1 set | |

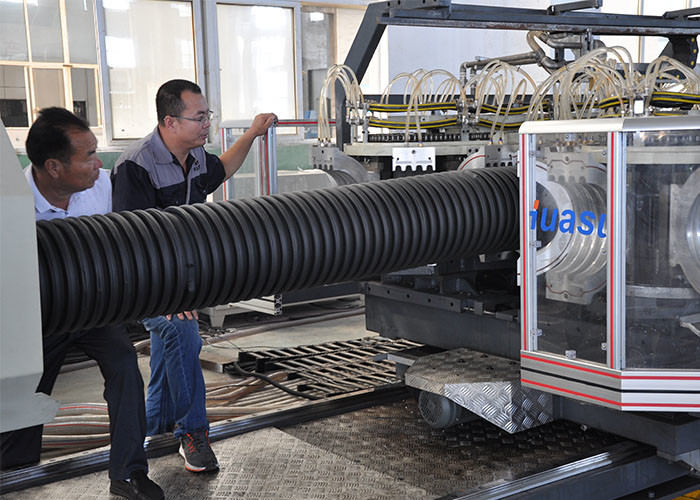

03 | Forming machine SBCJ-800H | 1 set | |
04 | Spray water tank SBSC-800H with haul-off machine | 1 set | |

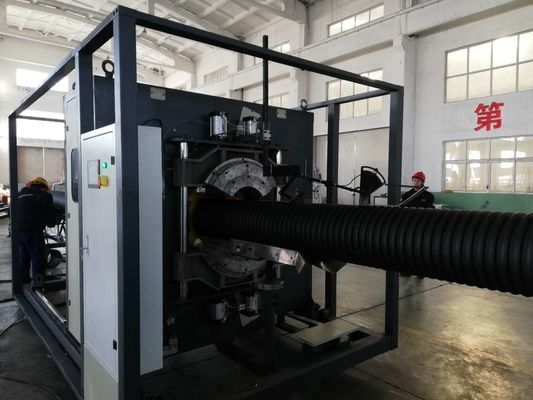

05 | Planetary chip free cutting machine SBQG-800H | 1 set | |
06 | Unloading bracket SBXL-800H | 1 set | |
07 | PLC control system | 1 set | |
08
|
Molds including double-layer online expansion module |
OD 250mm die head water sleeve mould block | 1 set |
OD 450mm die head water sleeve mould block | 1 set | ||
OD 800mm die head water sleeve mould block | 1 set | ||
OD 1000mm die head water sleeve mould block | 1 set | ||
09 | Spare parts | 1 set |
Below is the configuration for part of the extrusion line, for more details please contact Ellen Liu.
1.0 Single Screw Extruder SJ-120/33
Screw structure: Spiral barrier type screw with mixing section, which greatly improves the plasticizing quality and output; especially suitable for high-efficiency extrusion of materials such as PEPP, and has a wide range of material adaptability;
Barrel structure: Segmented, asymmetrical slotting barrel design, the feed inlet has a water cooling system with automatic temperature control, which greatly improves the conveying efficiency of the feeding section;
Gearbox: The gearbox adopts a vertical structure, the cooling method is forced circulating oil cooling, with a circulating water cooling system. High torque, low noise, hard-tooth surface gear, gear grinding process, heavy-duty thrust bearing;
Automatic feeder, dryer: Automatic feeder inductive design, with material shortage alarm function. The dryer adopts an integrated design of drying and storage, automatic temperature control and intelligent display with all stainless steel lining;
Temperature control: Imported PLC control system, dual PID parameter temperature control, temperature control accuracy ±1℃;
Technical parameter
--Screw hardness of screw HV>740
--Barrel hardness of barrel HV>940
--Material 38CrMoALA, nitriding handling
--Barrel nitriding depth 0.4~0.7mm
--Screw nitriding depth 0.3~0.6mm
--Barrel feeding section Slotted barrel with water-cooled forced feeding
--Screw diameter 120mm
--L: D 33:1
Heating & Cooling
--Barrel heating zone 7 zones × 5kw
--Barrel cooling 7zones×0.37kw
--Barrel heating power 37.59kw
Driving
--AC motor 315kw
--Inverter Hitachi or ABB
--Gearbox Hard gear surface
--Gear material 20CrMnTi,
--Gear type helical gear
Feeding - Dryer System
--Automatic vacuum feeding machine 1pc
--Automatic hopper dryer 1pc
2.0 Single Screw Extruder SJ-90/33
Technical parameter
--Screw hardness of screw HV>740
--Barrel hardness of barrel HV>940
--Material 38CrMoAlA
--Depth of barrel nitriding 0.4--0.7mm
--Depth of screw nitriding 0.3-0.6mm
--Barrel feeding section Slotted barrel with water-cooled forced feeding
--Screw diameter 90mm
--L: D 33:1
Heating & cooling
--Barrel heating zone 5zones × 4kw
--Barrel fan cooling 5zones × 0.25kw
--Barrel power 22.5kw
Driving
--AC Motor 132kw
--Inverter Hitachi or ABB
--Gearbox Hard gear surface
--Gear material 20CrMnTi
Feeding - Dryer System
--Automatic vacuum feeding machine 1pc
--Automatic hopper dryer 1pc
