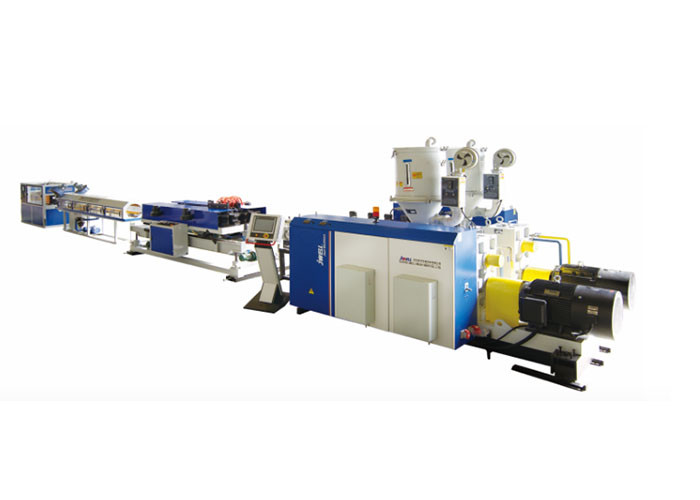

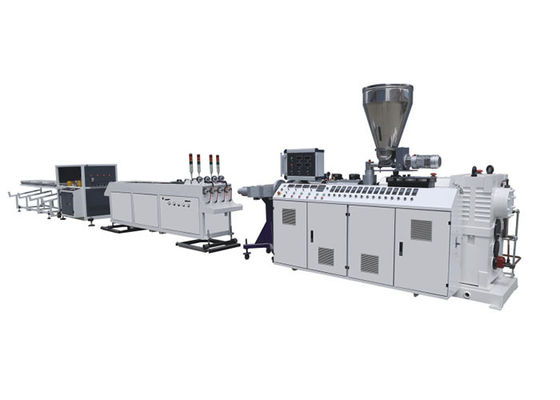

50mm 400kg/H U Shape PVC HDPE Pipe Extruder Machine

50mm 400kg/H U Shape PVC HDPE Pipe Extruder Machine

400kg/H HDPE Pipe Extruder Machine

PVC HDPE Pipe Extruder Machine

U Shape HDPE Pipe Extruder Machine

Place of Origin:

CHINA

Brand Name:

SD Huasu Brand

Certification:

CE, ISO9001:2008, UL, QS, GMP

Model Number:

PVC pipe extrusion line

Contact Us
Request A Quote
50mm 400kg/H U Shape PVC HDPE Pipe Extruder Machine 50mm 400kg/H U Shape PVC HDPE Pipe Extruder Machine 50mm 400kg/H U Shape PVC HDPE Pipe Extruder Machine 50mm 400kg/H U Shape PVC HDPE Pipe Extruder Machine
Product Details
Molds:
50mm-200mm
Extruder:
Conical Twin--Screw Extruder
Vacuum Calibration Water Cooling Tank:
6000mm
Printer:
Available
Automatic Flaring Machine:
Available
Highlight:

400kg/H HDPE Pipe Extruder Machine

,

PVC HDPE Pipe Extruder Machine

,

U Shape HDPE Pipe Extruder Machine

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
US $ 749,000 /set
Packaging Details
STANDARD PACKAGE
Delivery Time
30 WORKING DAYS
Payment Terms
T/T
Supply Ability
50 SETS/MONTH
RELATED PRODUCTS
Good price High Productivity Energy Saving Automatic HDPE Pipe Extrusion Line for Corrugated Plastic Pipes online Video

High Productivity Energy Saving Automatic HDPE Pipe Extrusion Line for Corrugated Plastic Pipes

Get Best Price
Good price Automatic HDPE Pipe Extrusion Line with Siemens PLC Control for High Productivity Corrugated Pipe Production online Video

Automatic HDPE Pipe Extrusion Line with Siemens PLC Control for High Productivity Corrugated Pipe Production

Get Best Price
Good price 32mm - 1600mm Pipe Diameter HDPE Corrugated Pipe Making Machine with Siemens PLC Control and 100-2000kg/h Output online Video

32mm - 1600mm Pipe Diameter HDPE Corrugated Pipe Making Machine with Siemens PLC Control and 100-2000kg/h Output

Get Best Price
Good price 32mm to 1600mm Pipe Diameter Range HDPE Pipe Extrusion Line with Air Cooling and Water Cooling Featuring Siemens PLC Control online Video

32mm to 1600mm Pipe Diameter Range HDPE Pipe Extrusion Line with Air Cooling and Water Cooling Featuring Siemens PLC Control

Get Best Price
CONTACT US
Contact Now
Product Description

U Shape Belling Online PVC Plain Wall And Solid Wall Pipe Extrusion Line Production Line

Outside Diameter(mm) 50 75 110 115 140 160
180 200
Work Condition
Power 380 V x 50 Hz x 3 Phase (according to customer requirement)
Cooling Water Recycling water. ≤20℃, ≥0.3Mpa, ～8M³/h
Compressed air 0.3m3/min,＞1.2MPa
Extruder Motor Max. Output Note
SJSZ-80/156 55kw 400kg/h Extrusion for pipe
1.0 Conical Twin--Screw Extruder SJSZ-80/156
Screw Hardness of screw HV＞740
Material 38CrMoAlA nitriding handling hardness of barrel HV＞940
Diameter of screw 80/156mm
Depth of barrel nitriding 0.5-0.7mm
Depth of screw nitriding 0.4-0.6mm
Slotted barrel with water cooling forced material feeding
Driving
AC motor 55kw
Inverter ABB
Gear Box
Material Hard surface, helical gear
Material of gear 20CrMnTi
Feature Nitriding, quenching and gear grinding , water cooling
Max. Out put 400kg/h
Material Feeding System
Feeding Spiral

Above is some details about the PVC pipe extrusion line. For more details, please contact Ellen Liu.

50mm 400kg/H U Shape PVC HDPE Pipe Extruder Machine 0

50mm 400kg/H U Shape PVC HDPE Pipe Extruder Machine 150mm 400kg/H U Shape PVC HDPE Pipe Extruder Machine 2

Shandong Huasu Plastic Technology Co., Ltd. is one of the most advanced company in plastic machinery industry. After over 20 years experience in this industry, Huasu accomplished great achievements including more than 10 invention patents and cooperating with more than 100 noble customers all over the world. For plastic pipe extrusion, we are always serious. Join and cooperate with Huasu, let's make money together!
