Place of Origin: | CHINA |
Brand Name: | SD Huasu Brand |
Certification: | CE, ISO9001:2008, UL, QS, GMP |
Model Number: | PE single wall corrugated pipe extrusion line |
Minimum Order Quantity: | 1 SET |
---|---|
Packaging Details: | standard package or as required |
Delivery Time: | 30 working days |
Payment Terms: | T/T |
Supply Ability: | 50 sets/month |
Product: | Die Head | Plastic Processed: | PE, PP, PVC, HDPE/PP, PE/PP, LDPE |
---|---|---|---|
Screw Material: | 38CrMoALA | Screw L/D Ratio: | 33:1 |
Frequency Control: | ABB | ||
High Light: | HDPE Corrugated Extrusion Die Head,Single Wall Extrusion Die Head,50mm Extrusion Die Head |

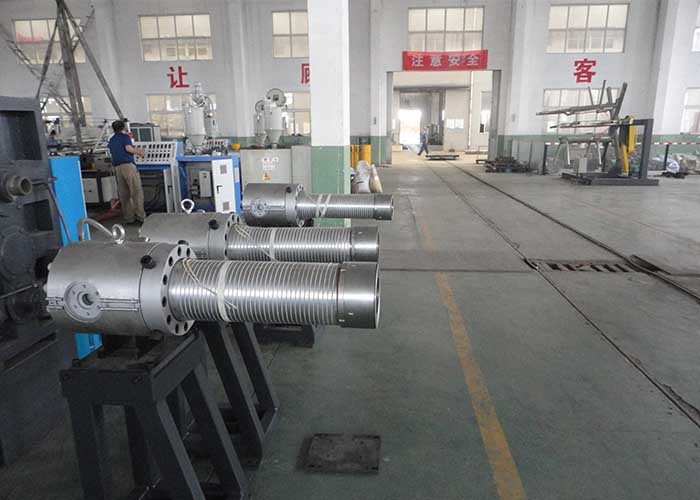

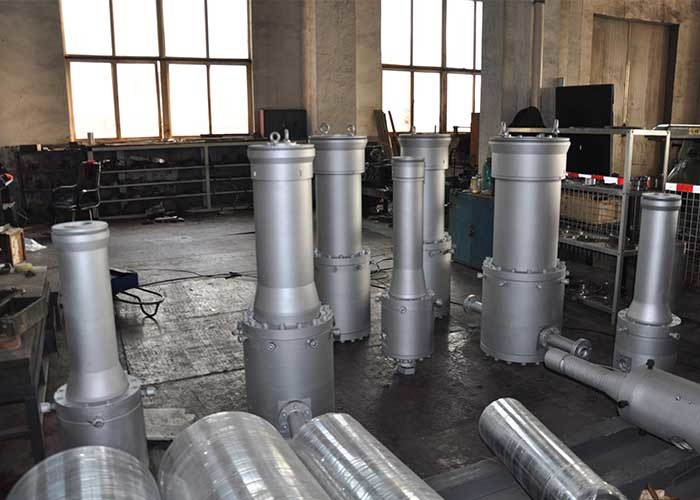

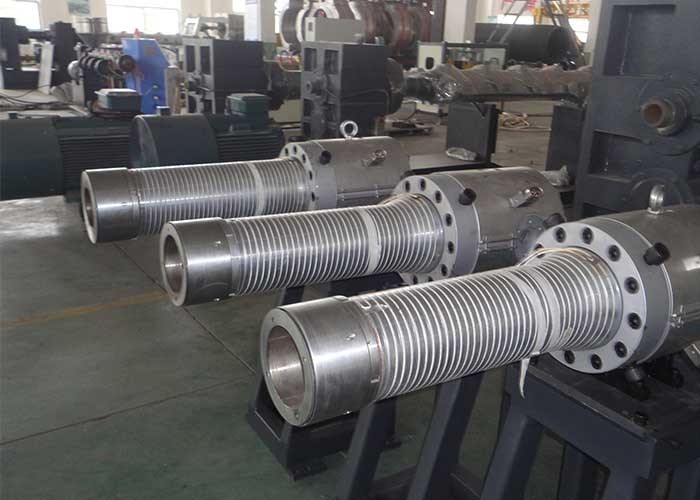

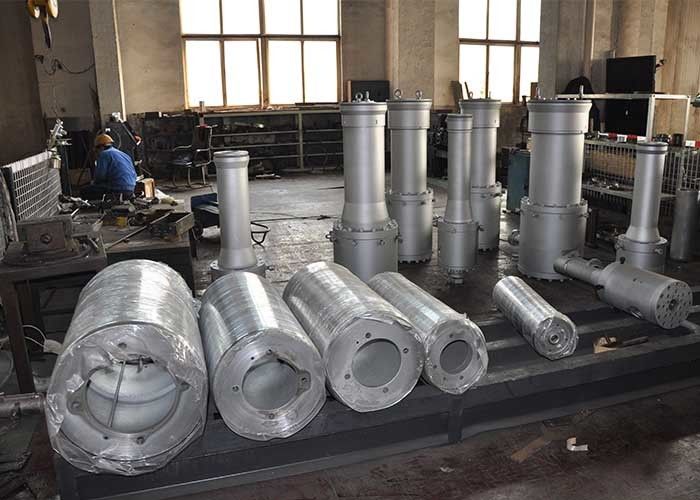

Die Head For Single Wall HDPE Corrugated Extrusion Line SBG315
Process Flow:
PP/PE/PVC/PA/PB/EVA raw materials→Automatic loader →Electrical control system→Single screw extruder→Die head and mould blocks →Forming machine→Cutting machine→Stacker
It's made of extruder, die head, forming module, forming machine, cutter, stacker, etc.
We can make the machine according to your requirements.
Technical Parameter:
Composition of the production line | OD50-110mm | OD120-250mm |
Main extruder | SJ65/30 and SJ65/30 | SJ90/30and SJ65/30 |
Main motor power(kw) | 37/37 | 55/37 |
Max output(kg/h) | 80 | 120/80 |
Machine die head/mould block | 48 pairs/set | 48 pairs/set |
Pipe forming machine | BW-II | BW-III |
Pipe cutting machine | Saw blade cutter | Planetry cutter |
Pipe stacking shelf | Length 6000mm | Length 6000mm |
Hopper drier | STG-U160 | STG-U160 |
Automatic feeding machine | ZJ200 | ZJ200 |
Plastic mixing machine | SH50 | SH100 |
Plastic crushing machine | SWP360 | SWP360 |
Main Electricity Brand:
Main Motor: SIEMENS
Frequency control: ABB
Contactor: SIEMENS
Temperature controler: Omron
