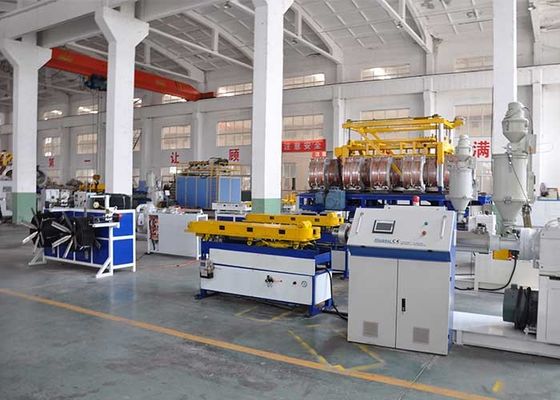

75mm PE PVC Single Wall Corrugated Pipe Extrusion Line
| Place of Origin | CHINA |
|---|---|
| Brand Name | SD Huasu Brand |
| Certification | CE, ISO9001:2008, UL, QS, GMP |
| Model Number | single wall corrugated pipe extrusion line |
| Minimum Order Quantity | 1 SET |
| Packaging Details | standard package or as required |
| Delivery Time | 30 working days |
| Payment Terms | T/T |
| Supply Ability | 50 sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Pipe | Voltage | Choose Freely |
|---|---|---|---|
| Screw Design | Single Screw | After-sales Service | Engineers Available To Service Machinery Overseas |
| Temperature | Omron | ||
| Highlight | 75mm Corrugated Pipe Extrusion Line,PE PVC Corrugated Pipe Extruder,Anti Corrosion Corrugated Pipe Extruder |
||
Product Description
9mm-75mm PE PVC Single Wall Corrugated Pipe Extrusion Line High Credit Manufacturer
Application
1.Single wall corrugated pipe machine can be used to product single wall corrugated pipe.
2.Plastic single wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility.
3.The single wall corrugated pipe are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine.
Main Technical Parameters
| Model | Pipe Diameter | Main Extruder | Forming Machine |
| GZ35A | Φ 9mm-35mm | SJ45/28 | 2 m |
| GZ35B | Φ9mm - 35mm | SJ45/30 | 3 m |
| GZ55 | Φ35mm- 55mm | SJ55/28 | 3 m |
| GZ75 | Φ55mm -75mm | SJ65/28 | 3 m |
More configuration is available, please contact Ellen Liu for more details.
Process flow
Raw material(PP/PE granule)→ Plastic extruder → Mould→ Forming machine →Winder → Finished product
