| Place of Origin: | CHINA |
| Brand Name: | SD Huasu Brand |
| Certification: | CE, ISO9001:2008, UL, QS, GMP |
| Model Number: | PE single wall corrugated pipe extrusion line |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Packaging Details: | standard package or as required |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets/month |
| Product: | PE Plain Wall Pipe Making Machine | Plastic Processed: | LDPE, HDPE |
|---|---|---|---|
| Screw Material: | 38CrMoALA | Screw L/D Ratio: | 33:1 |
| Extruder: | SJ 120/33 | Max. Pipe Diameter: | 630mm |
| High Light: | PCC Corrugated Pipe Extrusion Line,PE Pipe Extrusion Equipment,Nitriding Corrugated Pipe Extrusion Line |
||
PE Pipe Extrusion Machine Line / PE Plastic Pipe Extrusion Equipment
Pipe extrudering equipment design concepts and features:
1. Based on high-quality, get high-speed and high-output extrusion.
2. Screw and barrel material is 38CrMoALA, nitriding treatment, good wear-resistant.
3. High temperature control accuracy, combination of air-cooling and water cooling. Unique design of feeding mouth, with perfect water cooling device. Professional symmetric trapezoidal groove bushing.
4. Hardened gear reducer box, high-strength alloy steel shaft, grinding gear with nitriding treatment, inner built splash lubrication and forced lubrication system, external circulation cooling system.
5. Automatic hopper dryer to prevent metrial dampen.
6. Automatic feeder effectively reduce the labor intensity.
7. Automatic weighing and feeding device is optional, to control the weight per meter of product.

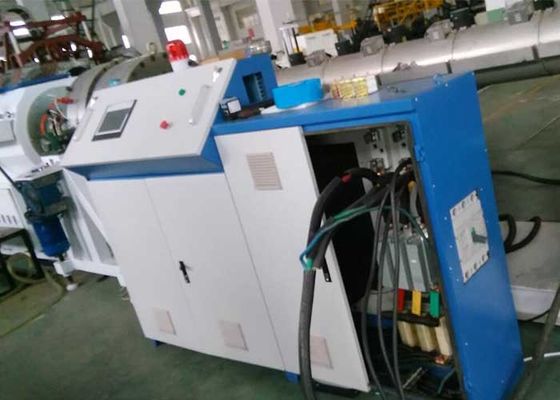

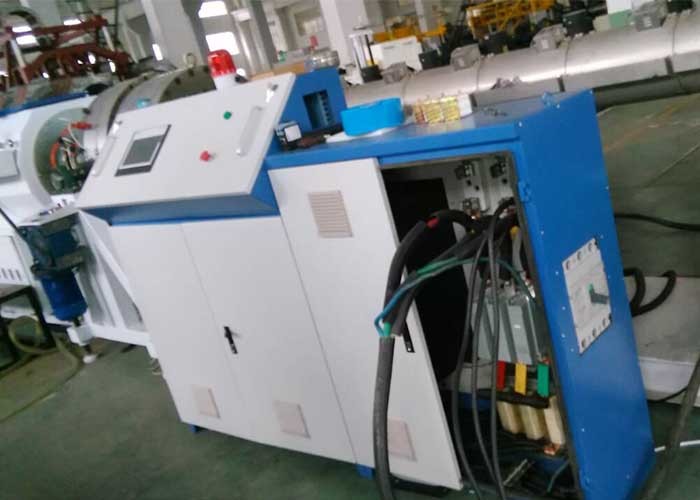

8. PLC/PCC intelligent control system realized the linkage of extruder and assistant devices, the man-machine interface of the HMI is easy to monitor the working process. In accordance with different control requirment, PID control is also avaliable.
9. ZSSJ25/25 co-extruder is optional, the co-extruded with a roller, easy to move, and the ride height and angle can be adjusted,so it''s easy to connect with the mold. This co-extruder can be controlled separately, also synchronous control with the main extruder and auxiliary devices, or connected to the PLC/PCC control system. The mainly usage of the co-extruder is color stripe tube, multi-layer tube, composite profile, and other plastic extrusion production line with special marking requirements. Also based in customer''s requirement, custom-made extruder with special function is also avaliable. L/D range: 13:1 - 37:1.
10. To screw, barrel and reducer, if customer need higher performance, European products are also avaliable.
We are welcome you visit to our company.
| Configuration | Quantity |
| Single screw extruder SJ120/33 | 1 set |
| Single screw extruder SJ30/25 | 1 set |

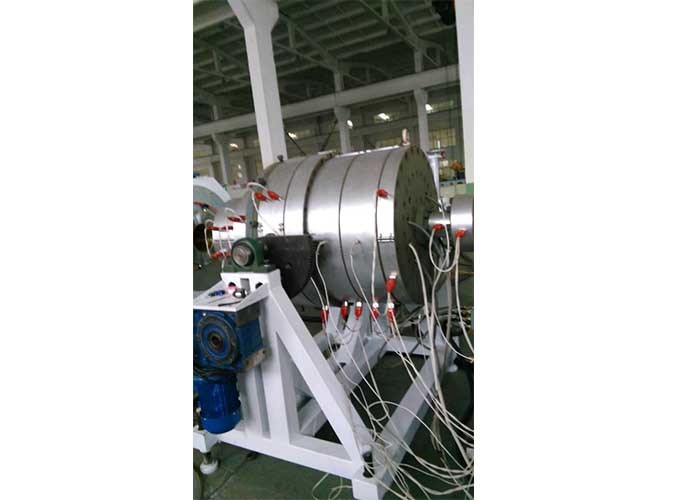

| Molds | 1 set |

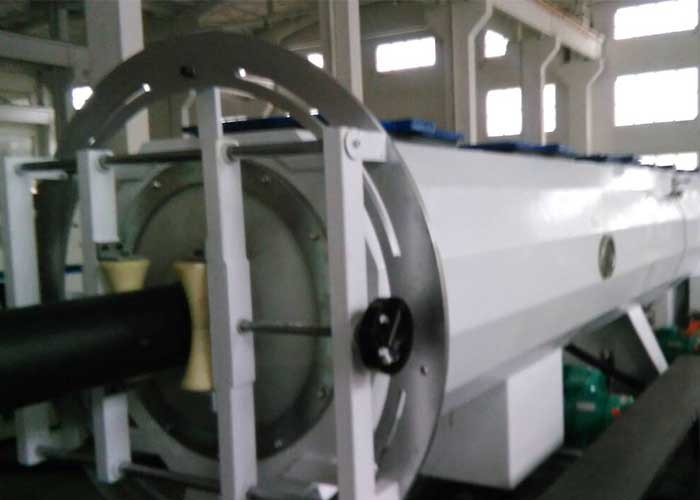

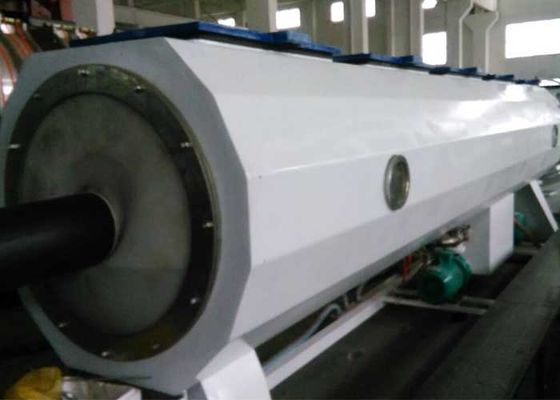

| Vacuum tank 3000mm+6000mm | 1 set |
| Spray tank | 1 set |
| Haul off machine | 1 set |
| Cutting machine | 1 set |
| Control system | 1 set |
For more details, please contact Ellen Liu.
Please notice that each equipment can be customized as your requirements, so please feel free to contact us.
