Corrugated Cable Protection Pipe Extrusion Machine 16mm Diameter

Place of Origin CHINA
Brand Name SD Huasu Brand
Certification CE, ISO9001:2008, UL, QS, GMP
Model Number corrugated pipe extrusion machine
Minimum Order Quantity 1 SET
Packaging Details standard package or as required
Delivery Time 30 working days
Payment Terms T/T
Supply Ability 50 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Wire Conduct Pipes Screw Design Single Screw Or Conical Twin
Warranty 12 Months Screw Material 38CrMoAla
Advantage Nitriding Treatment Cooling Type Air Cooling And Water Cooling Available
Highlight

16mm Pipe Extrusion Machine

,

DWC Cable Protection Pipe Extrusion Machine

,

HDPE Corrugated Pipe Extrusion Machine

Leave a Message
Product Description

16mm Diameter PE PVC PP Single Wall/Double Wall Corrugated Pipe Cable Protection Pipe Extrusion Machine

Double wall corrugated pipe is mature product which has the advantage of low weight, low cost, anti-corrosion, good ring stiffness and flexibility. Our company has developed PE double wall corrugated pipe extrusion line for more than 15 years. We have the whole series of double wall corrugated pipe machine: horizontal type, vertical type and shuttle type. Our machine can process wide range of material, including HDPE, PP, PVC, etc.

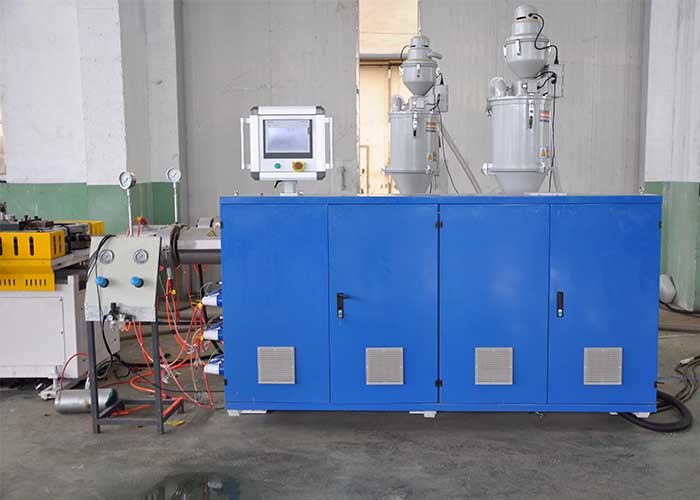

The fully automatic plastic double wall corrugated drain pipe extrusion making machine uses two high-speed single-screw extruders. Single-screw extruder: We use PE high-speed high-efficiency single-screw extruder. Its barrel is slotted type design.It is also equipped with a low-noise fan and a high-speed hard-surface gear box. The inner and outer layers of the double wall corrugated pipes are independently fed by two extruders. It achieves the use of different colors and different raw materials production, and ensures efficient extrusion.
This double wall corrugated pipe extrusion line can produce from inner diameter of 110mm to 250mm.

Corrugated Cable Protection Pipe Extrusion Machine 16mm Diameter 0

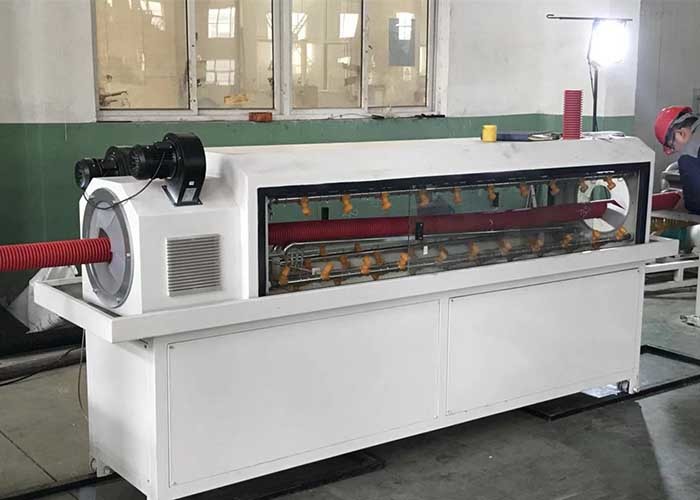

Automatic production line (Ø110-Ø250) contains two parts.One is mechinal part:SIEMENS motors, gearbox,single screw barrel, heating area,another is electric part:ABB frequency changer,OMRON temperature control, SCHNIDER contactor. It has features of high and stable output capacity as well as highly automatic operation. According to the material situation, for HDPE, you can choose high efficient single screw extruder. For PVC, you can choose conical twin screw extruder. The forming system of this line consists of mould and corrugator. The mould blocks can be easily changed and they are equipped with air or water cooling system.



Other models are availbale

Model
SGB800
SGB500
SGB250
Structure Form
Vertical
Horizontal
Horizontal
Pipe Diameter Range
225-800mm
200-500mm
110-250mm
Max Extrusion Output
850kg/h
700kg/h
500kg/h
Expansion Mode
Belling-on-line,double-wall socket joint
Belling-on-line,double-wall socket joint
Belling-on-line,double-wall socket joint
Forming Speed
0.25-3m/min
0.25-4m/min
0.5-5m/min
Centre Height
1600mm
1150mm
1150mm
Number of Mold Blocks(pairs)
32
40
48
