Name: PP PE DWC Corrugated Pipe Making Machine Air Cooling Plastic Pipe Extruder Machine
Brand: Shandong Huasu Plastic Technology Co., Ltd
SKU: corrugated pipe extrusion machine
Availability: InStock

Home > Products > Cable Protection Pipe Extrusion Line >

PP PE DWC Corrugated Pipe Making Machine Air Cooling Plastic Pipe Extruder Machine

DWC Corrugated Pipe Making Machine

Corrugated Pipe Making Machine

Air Cooling Corrugated Pipe Machine

Place of Origin:

CHINA

Brand Name:

SD Huasu Brand

Certification:

CE, ISO9001:2008, UL, QS, GMP

Model Number:

corrugated pipe extrusion machine

Request A Quote

PP PE DWC Corrugated Pipe Making Machine Air Cooling Plastic Pipe Extruder Machine

Product Details

Application:

Wire Conduct Pipes

Screw Design:

Single Screw Or Conical Twin

Warranty:

12 Months

Screw Material:

38CrMoAla

Advantage:

Nitriding Treatment For Barrel And Secrw And Die Head

Cooling Type:

Air Cooling

Mould Blocks:

48 Pairs (Aluminum Molds)

Highlight:

DWC Corrugated Pipe Making Machine

Corrugated Pipe Making Machine

Air Cooling Corrugated Pipe Machine

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Packaging Details

standard package or as required

Delivery Time

30 working days

Payment Terms

T/T

Supply Ability

50 sets/month

Nitriding Treatment Screw Corrugated Pipe Machine with 32mm-1600mm Pipe Diameter Range and PLC Control Touch Screen Interface

Get Best Price

32mm-1600mm Pipe Diameter Range Cable Protection Pipe Extrusion Line with PLC Control Touch Screen Interface and Nitriding Treatment Screw

Get Best Price

Double Wall Corrugated Pipe Extrusion Line with 32mm-1600mm Pipe Diameter Range, Nitriding Treatment Screw, and PLC Control

Get Best Price

High Automation Cable Protection Pipe Extrusion Line With Nitriding Treatment Screw And 32mm-1600mm Pipe Diameter Range

Get Best Price

Contact Now

Product Description

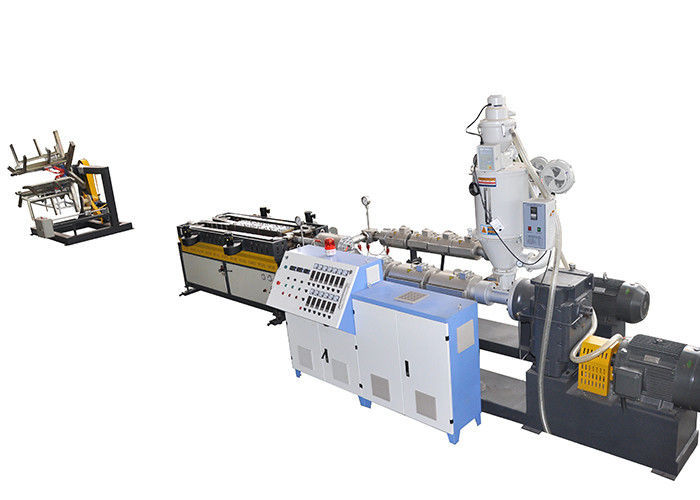

High Speed PP PE Single Wall Double Wall Corrugated Pipe Manufacture Extruder Making Machine DWC Corrugated Pipe Making

plastic single wall corrugated pipe machine

1. plastic single wall corrugated pipe machine can produce PP PE PA PVC EAV corrugated pipe which is widely used as wire harness protective pipe for car and machine tool2. equipped with vacuum pump, the machine can produce washing machine pipe, air conditioner pipe, hookah pipe, wash basin drain pipe,medical pipe
3.mold transmission by gear
4. water cooling, wind cooling

			model

			pipe diameter

			extruder model

			motor powder

			production speed

			mold pairs

			optional vacumm pump

			SBG-14

			5-14mm

			SJ-45

			11kw

			6-8m/min

			42

			SBG-32

			10-32mm

			SJ-50

			15kw

			5-12m/min

			50

			1.5kw

			SBG-50

			16-50mm

			SJ-65

			30kw

			3-10m/min

			50

			2.2kw

			SBG-63

			16-63mm

			SJ-65

			30kw

			3-10m/min

			50

			2.2kw

			SBG-110

			32-110mm

			SJ-75

			37kw

			3-6m/min

			72

			5.5kw

Molds
Die Head
--Specification IDΦ150, Φ250mm
--Structure Using spiral split structure design, uniform and stable discharge
--Head heating power 32kw heating zone 6
--Material 40 Cr
--Die adjustment method
Adopt circular bolt adjustment, convenient and quick adjustment
Mould Block
--Specification IDΦ150, Φ250mm
--Material LY12 High quality aluminum alloy
--Quantity 48 pairs (2 pairs additionally)
--Cooling type Water Cooling
