Air Cooling DWC Corrugated Pipe Extrusion Line With 75mm Screw
| Place of Origin | CHINA |
|---|---|
| Brand Name | SD Huasu Brand |
| Certification | CE, ISO9001:2008, UL, QS, GMP |
| Model Number | corrugated pipe extrusion machine |
| Minimum Order Quantity | 1 SET |
| Packaging Details | standard package or as required |
| Delivery Time | 30 working days |
| Payment Terms | T/T |
| Supply Ability | 50 sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Wire Conduit Pipes | Screw Design | Single Screw Or Conical Twin Available |
|---|---|---|---|
| Warranty | 12 Months | Screw Material | 38CrMoAla |
| Advantage | Nitriding Treatment For Barrel And Secrw And Die Head | Cooling Type | Air Cooling |
| Material For Mould Block | LY12 High Quality Aluminum Alloy | Die Head Structure | Spiral Split Structure Design, Uniform And Stable Discharge |
| Highlight | DWC Corrugated Pipe Extrusion Line,Air Cooling Corrugated Pipe Extrusion Line,75mm Screw Pipe Extrusion Line |
||
Product Description
Single and Double Wall Corrugated Pipe Extrusion Machine for Electrical Use
| No. | Name & Model | Quantity | |
| 01 | Single Screw Extruder SJ75X33 | 1 set | |
| 02 | Single Screw Extruder SJ65X33 | 1 set | |
| 03 |
Molds
|
150mm die head water sleeve mould block | 2 sets |
| 250mm die head water sleeve mould block | |||

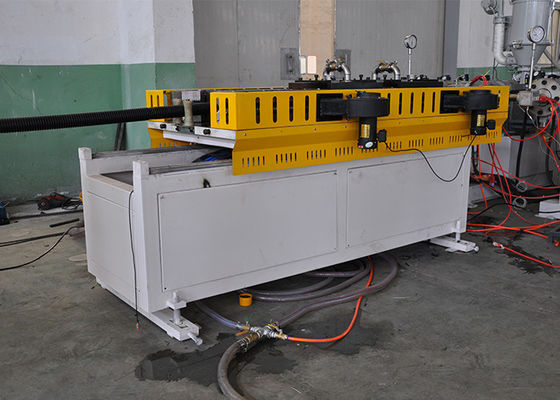

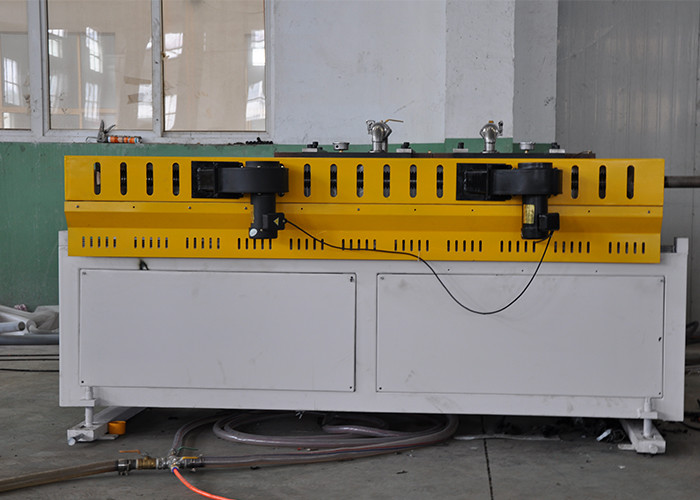

| 04 | Forming Machine SBCJ-250 | 1 set | |

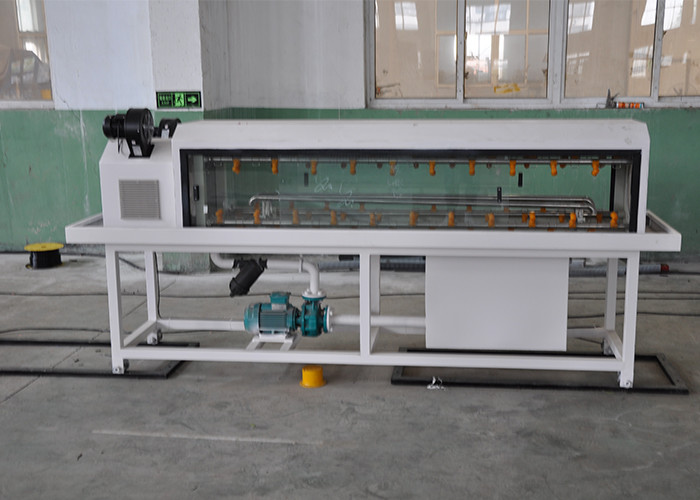

| 05 | Spraying water tank SBSC-250 | 1 set | |
| 06 | Hauling-Off Machine | 1 set | |

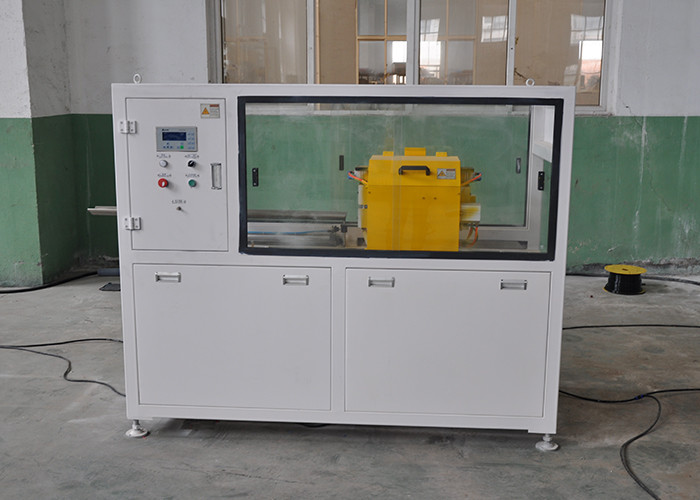

| 07 | Cutting Machine SBQG-250 | 1 set | |
| 08 | Overturn Bracket SBXL-250 | 1 set | |
| 09 | PLC Control System | 1 set | |
1.0 Single Screw Plastic Extruder SJ-75X33
--Barrel screw Hardness of screw HV>740
--Material 38CrMoAlA Hardness of barrel HV>940
--Nitriding handling
--Depth of barrel nitriding 0.4--0.7mm
--Depth of screw nitriding 0.3--0.6mm
--Diameter of screw 75mm
--L:D 33:1
Heating& cooling
--Barrel heating zone 4 zones x 4.2kw
--Barrel cooling zone 4 zones x 0.25kw
--Power of barrel heating 16.4kw
Driving
--AC Motor 90kw
--Inverter ABB
--Wheel Box Gear driving
--Gear Material 20CrMnTi
--Gear Type Helical Gear
--Max. Output 300kg/h
1.1 Auto Material - feeding System
--Dryer 1pcs
--Vacuum Feeder 1pcs
2.0 Single Screw Plastic Extruder SJ-65X33
--Barrel screw Hardness of screw HV>740
--Material 38CrMoAlA Hardness of barrel HV>940
--Nitriding handling
--Depth of barrel nitriding 0.4--0.7mm
--Depth of screw nitriding 0.3--0.6mm
--Diameter of screw 65mm
--L:D 33:1
Heating& cooling
--Barrel heating zone 4 zones x 4kw
--Barrel cooling zone 4 zones x 0.18kw
--Power of barrel heating 16kw
Driving
--AC Motor 55kw
--Inverter ABB
--Wheel Box Gear driving
--Gear Material 20CrMnTi
--Gear Type Helical Gear
--Max. Output 180kg/h
2.1 Auto Material - feeding System
--Dryer 1pcs
--Vacuum Feeder 1pcs
For more details, please contact Ellen Liu.
