| Place of Origin: | CHINA |
| Brand Name: | SD Huasu Brand |
| Certification: | CE, ISO9001:2008, UL, QS, GMP |
| Model Number: | SBG110 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Packaging Details: | standard package or as required |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets/month |
| Application: | Making Pipes | Screw Design: | Single-screw Plastic Pipe Making Machine |
|---|---|---|---|
| Screw Material: | 38CrMoALA | Brand Name: | Shandong Huasu |
| Showroom Location: | Russia, Korea, Japan Etc. | Voltage: | 380V 50HZ 3Phase(Customized) |
| Certification: | CE, ISO | ||
| High Light: | Cable Protection Pipe Extrusion Machine,Double Wall Pipe Extrusion Machine,Pipe Extrusion Machine 12m/Min |
||
Application:
The single wall corrugated pipe are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc
Features :

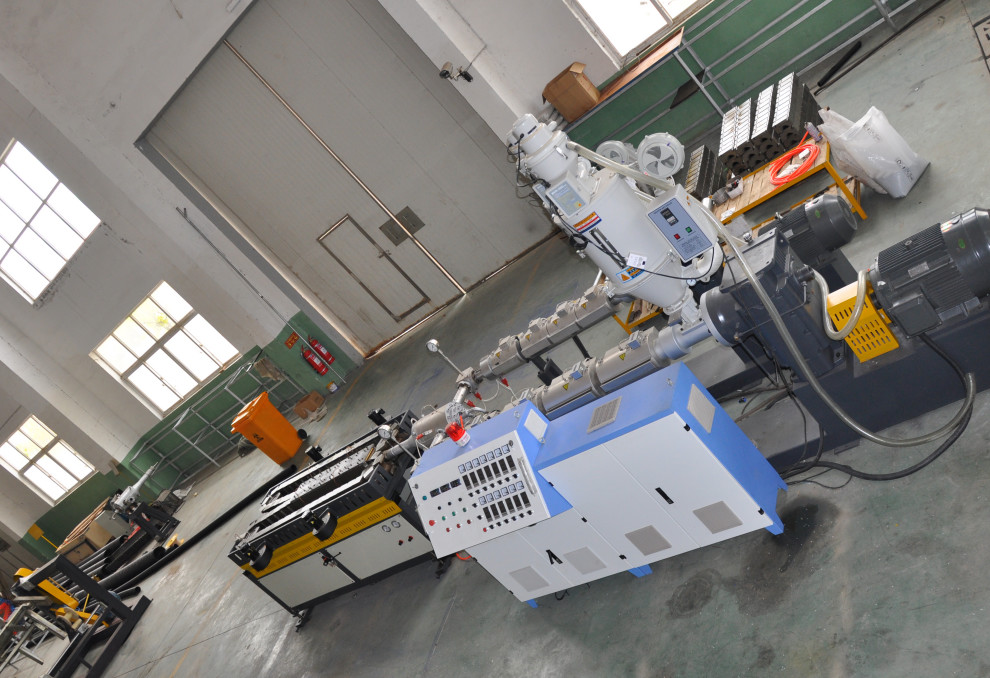

1.Extruder: high efficient screw, hard gear surface gearbox, uniformed raw material heating, good plasticization, high extrusion speed.

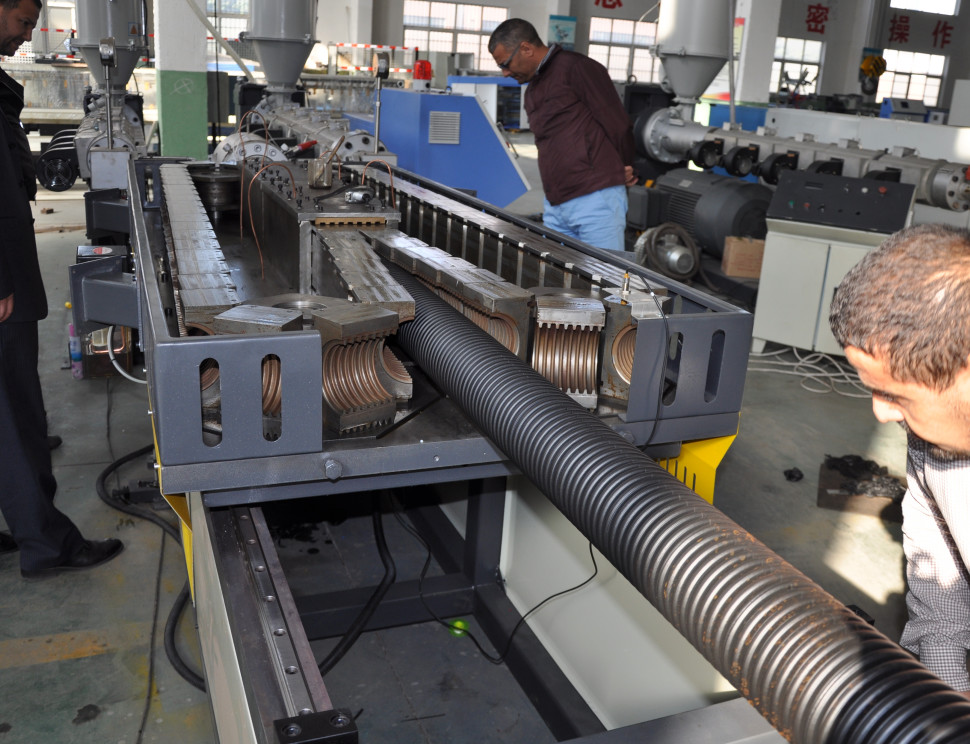

2.Corrugation forming machine: closed structure, module link in the overall closure base does round-trip running in the running tunnels.
3.Forming modules: it is made of hard steel, dealed with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the molding modules. These modules are easy and convenient to change
4.Coiler :Single position or double position with torque motor.
Technology data:
|
Model |
Pipe diameter range(mm) | Screw diameter(mm) |
Motor power (kw) |
Molding power (kw) |
Rewinder power (kw) |
Output (m/min) |
| SJ45 | 9-32 | 45 | 11 | 5.5 | 1.5 | 3-12 |
| SJ65 | 20-50 | 65 | 30 | 5.5 | 3 | 1.5-6 |
| SJ90 | 75-160 | 90 | 37 | 5.5 | 5.5 | 1-5 |
