300mm HDPE Pipe Extrusion Line 3m/Min Calbe Jacket Pipe Production Line
| Place of Origin | CHINA |
|---|---|
| Brand Name | SD Huasu Brand |
| Certification | CE, ISO9001:2008, UL, QS, GMP |
| Model Number | 600H |
| Minimum Order Quantity | 1 SET |
| Packaging Details | standard package or as required |
| Delivery Time | 30 working days |
| Payment Terms | T/T |
| Supply Ability | 50 sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Making Pipes | Screw Design | Single-screw Plastic Pipe Making Machine |
|---|---|---|---|
| Screw Material | 38CrMoALA | Brand Name | Shandong Huasu |
| Showroom Location | Russia, Korea, Japan Etc. | Voltage | 380V Or As Required |
| SJ-120/33 | 250KW | SJ-90/33 | 132KW |
| Highlight | 300mm HDPE Pipe Extrusion Line,HDPE Pipe Extrusion Line 3m/Min,Cable Jacket Pipe Production Line |
||
Product Description
300mm PE Corrugated Pipe Extrusion Line 3m/Min Production Speed Calbe Jacket Pipe Production Line
For high speed 600H production line, we recommend to use this line make pipe ID 200mm/300mm/400mm/500mm/600mm.
It can make ID 800mm pipe but the production speed will be slower a little bit.
And it also can make smaller size pipes, but the energy consuming will be large.
This production line adopts the high technology and experience of Germany and it has fater speed, which means it can produce 4m/min for 200mm spec, 3m/min for 300mm spec.
This line equipped with SJ 120/33 and SJ 90/33 extruder and the drive power is 250kw and 132kw.
The Max. output is 800kg/h.
| Extruder | Motor | Max. Output | Note |
| SJ120/33 | 250kw | 800kg/h | |
| SJ90/33 | 132kw | 450kg/h |
| No. | Name & Model | Quantity | |
| 01 | Single screw extruder SJ-120/33 | 1 set | |
| 02 | Single screw extruder SJ-90/33 | 1 set | |

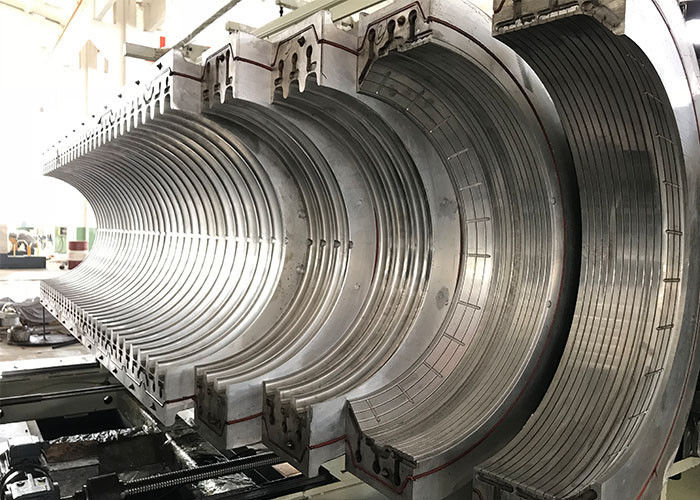

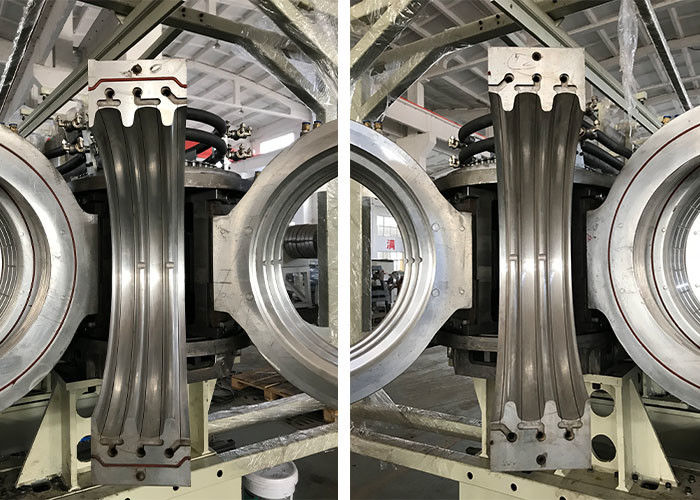

| 03 | Molds | OD 200mm die head water sleeve mould block | 1 set |
| OD 250mm die head water sleeve mould block | 1 set | ||
| OD 500mm die head water sleeve mould block | 1 set | ||
| OD 630mm die head water sleeve mould block | 1 set | ||

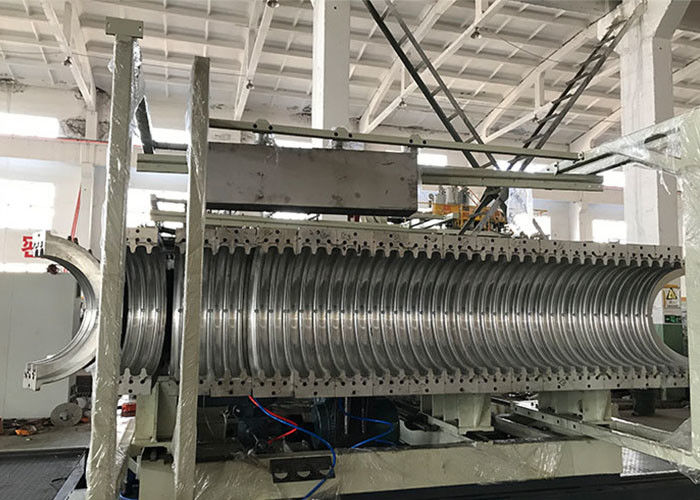

| 04 | Forming machine SBCJ-600 | 1 set | |
| 05 | Water cooling tank SBSC-600 with haul-off machine | 1 set | |
| 06 | Planetary chip free cutting machine SBQG-600 | 1 set | |
| 07 | Unloading bracket SBXL-600 | 1 set | |
| 08 | PLC control system | 1 set | |
| 09 | Spare parts | 1 set | |
For normal speed line, please contact Ellen Liu for more details.
