Horizontal HDPE Pipe Extrusion Line 200mm DWC PE Pipe Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | SD Huasu Brand |
| Certification | CE, ISO9001:2008, UL, QS, GMP |
| Model Number | high speed type |
| Minimum Order Quantity | 1 SET |
| Packaging Details | standard package or as required |
| Delivery Time | 30 working days |
| Payment Terms | T/T |
| Supply Ability | 50 sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Manufacture Pipes | Screw Design | Single-screw *2 Or Double Screw |
|---|---|---|---|
| Screw Material | 38CrMoALA | Showroom Location | Russia, Korea, Japan, Kazakhstan Etc. |
| Voltage | 380V Or As Required | Extruder SJ-120/33 | 250KW Motor |
| Extruder SJ-90/33 | 132KW Motor | ||
| Highlight | DWC PE Pipe Machine,Horizontal HDPE Pipe Extrusion Line,200mm HDPE Pipe Extrusion Line |
||
Product Description
Closed Water Cooling Double Wall Corrugated PE Pipe Machine Production Line

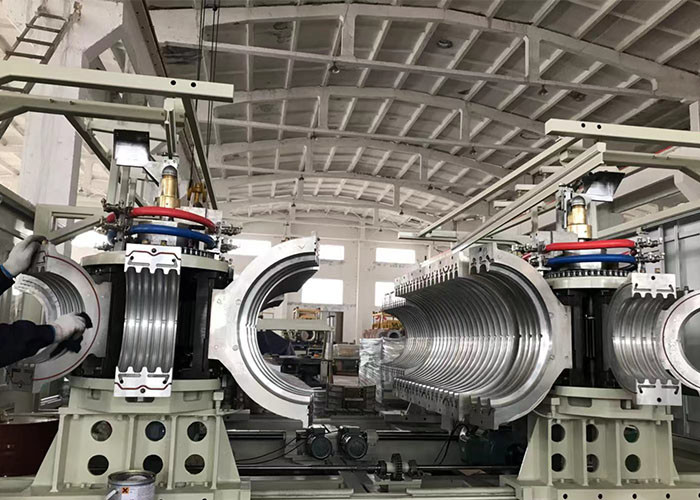

It is fully computer controlled, automatic production line (Ø200-Ø600mm). It has features of high and stable output capacity, and highly automatic operation. According to the material situation, for HDPE, you can choose high efficient single screw extruder. The forming system of this line consists of mould and corrugator. The mould blocks can bu easily changed and they are equipped with air AND water cooling system. The production line can also be equipped with Siemens company SIEMENS control system.
Storm water and sewerage; Drainage pipes for fields, streets, roads, squares and buildings; Conveyor pipes; Protection pipes for tv, glassfiber, telephone, electricity, IT and computer;Protection pipes for cables, district heating systems, domestic connection lines ,structural and civil engineering.
| Model | SGB800 | SGB500 | SGB300 | HGB500 | HGB300 |
| Structure Form | Vertical | Horizontal | Horizontal | Horizontal | Horizontal |
| Applicable Raw Materials | HDPE/PP/PVC | HDPE/PP/PVC | HDPE/PP/PVC | HDPE/PP/PVC | HDPE/PP/PVC |
| Pipe Diameter Range | 225-800 | 200-500 | 110-300 | 200-500 | 110-300 |
| Max Extrusion Output | 600-900 | 500-700 | 300-400 | 1000-1200 | 600-800 |
| Expansion Mode | Belling-on-line,double-wall socket joint | Belling-on-line,double-wall socket joint | Belling-on-line,double-wall socket joint | Belling-on-line,double-wall socket joint | Belling-on-line,double-wall socket joint |
| Cooling method | Air cooling | Air cooling | Air cooling | Water cooling | Water cooling |
| Forming Speed | 0.25-3 | 0.4-4 | 0.5-5 | 0.4-9 | 0.5-12 |
| Centre Height | 1600 | 1150 | 1100 | 1150 | 1100 |
| Number of Mold Blocks(pairs) | 32 | 40 | 48 | 36 | 36 |
| Total lnstalled power | 660 | 385 | 240 | 700 | 520 |
We have our own factory, technique team, CNC and please let me know if you have any special requirements.
We'll try our best to meet your demands.
