| Place of Origin: | CHINA |
| Brand Name: | SD Huasu Brand |
| Certification: | CE, ISO9001:2008, UL, QS, GMP |
| Model Number: | high speed type |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Packaging Details: | standard package or as required |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets/month |
| Application: | Water Drainage Pipes Manufacturing | Screw Design: | Single-screw *2 Or Double Screw |
|---|---|---|---|
| Screw Material: | 38CrMoALA | Showroom Location: | Russia, Korea, Japan, Kazakhstan, Algeria Etc. |
| Voltage: | 380V Or As Required | After-sales Service: | Field Installation, Commissioning And Training |
| High Light: | Water Drainage HDPE Pipe Extrusion Line,HDPE Pipe Extrusion Line 120kg/H,QS HDPE Pipe Extrusion Line |
||

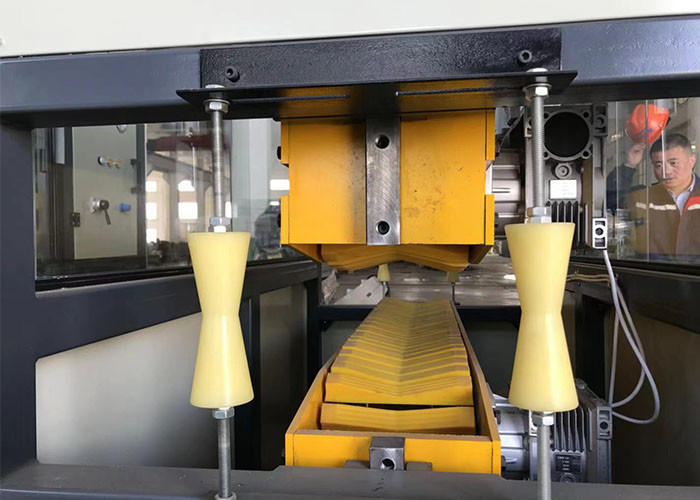

Plastic double wall corrugated pipe production line is made of extruder, die head, forming module, forming machine, cutter, stacker, etc.
The double-wall corrugated pipe is a new type cable jacket and water feeding and discharging pipe.
| Composition of the production line | OD50-110mm | OD120-200mm |
| Main extruder | SJ65/30 and SJ65/30 | SJ90/30 and SJ65/30 |
| Main motor power(kw) | 37/37 | 55/37 |
| Max output(kg/h) | 80 | 120/80 |
| Machine die head/mould block | 50pairs/set | 50pairs/set |

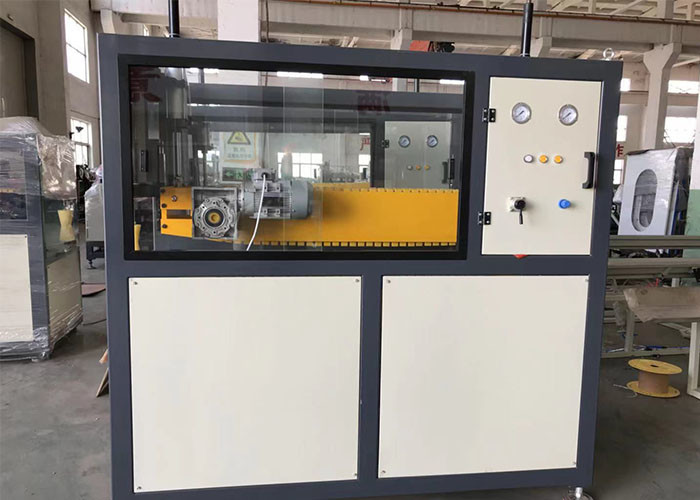

| Pipe forming machine | HS-II | HS-III |
| Pipe cutting machine | Saw blade cutter | Planetry cutter |
| Pipe stacking shelf | Length 6000mm | Length 6000mm |
| Hopper drier | STG-U160 | STG-U160 |
| Automatic feeding machine | ZJ200 | ZJ200 |
| Plastic mixing machine | SH50 | SH100 |
| Plastic crushing machine | SWP360 | SWP360 |
