Diameter 2000mm Single Screw Hdpe Pipe Extruder Machine 1500kg/H

Product Details:

Place of Origin:	CHINA
Brand Name:	SD Huasu Brand
Certification:	CE, ISO9001:2008, UL, QS, GMP
Model Number:	high speed type

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	$21,500.00/ Set
Packaging Details:	standard package or as required
Delivery Time:	30 working days
Payment Terms:	T/T
Supply Ability:	50 sets/month

Contact Now

Detailed Product Description

Screw Material:	38CrMoALA	Screw Diameter:	65mm
Weight:	6-8MT	Dimension:	25m2.5m3m (LWH)
After-sales Service Provided:	Video Technical Support, Free Spare Parts, Field Installation	PLC:	Simens
High Light:	Single Screw Hdpe Pipe Extruder Machine , Diameter 2000mm Pipe Extruder Machine , 1500kg/H Hdpe Pipe Extruder Machine

Low Price Diameter 16-2000mm HDPE PP PE PPR Multi-Layer Plastic Pipe Single Screw Extrusion Complete Line Machinery

Manufacturer Direct Selling High Quality HDPE Water Pipe Extruder Machine consists of the following seven parts:

NO.	Name	Quantity
1	Single screw extruder (with automatic feeding system)	1set
2	Die head (Molds)	1set
3	Calibrating and cooling tank	1set
4	Haul-off machine	1set
5	Cutting machine	1set
6	Stacker	1set

Extruder Model	Pipe Diameter (mm)	Production Capacity (kg/h)	Total Power (kw/h)
SJ50	16~63	100~150	75
SJ65	75~160	300~350	160
SJ75	200~400	600~700	280
SJ90	450~630	800~850	350
SJ120	710~1200	1200~1300	700
SJ150	1200~2000	1400~1500	1000

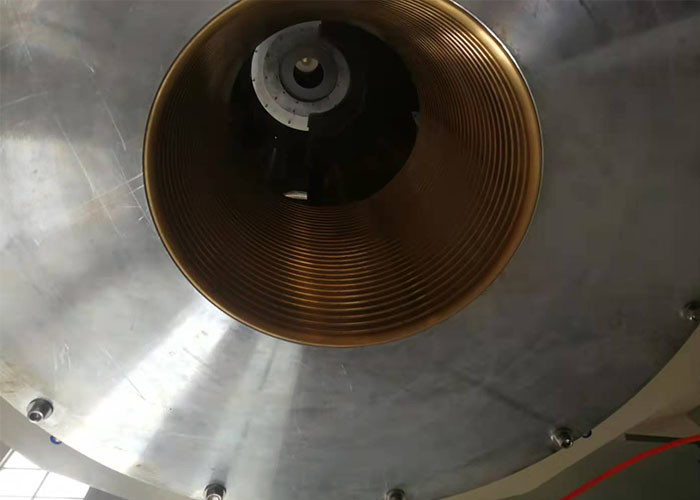

Diameter 2000mm Single Screw Hdpe Pipe Extruder Machine 1500kg/H 0

Diameter 2000mm Single Screw Hdpe Pipe Extruder Machine 1500kg/H 1

1.Single screw extruder (with automatic feeding system)

Motor: Siemens

Inverter: ABB

Contactor: Siemens

Relay: Omron

Breaker: Schneider

Heating method: Ceramic or cast aluminum heating

Material of screw and barrel: 38CrMoAlA

2.Mold

Material: 3GR17
Diameter: Customized
Pipe diameter:16-1200mm
Pipe specification grade:
0.6MPa,0.8MPa,1.0MPa,1.25MPa,1.6MPa
SDR26,SDR21,SDR17,SDR13.6,SDR11
