Place of Origin: | CHINA |
Brand Name: | SD Huasu Brand |
Certification: | CE, ISO |
Model Number: | standard type |
Minimum Order Quantity: | 1 SET |
---|---|
Packaging Details: | standard package or as required |
Delivery Time: | 30 working days |
Payment Terms: | T/T |
Supply Ability: | 50 sets/month |
Plastic Processed: | PE/PP/PVC | Voltage: | 380V/50HZ/3P |
---|---|---|---|
Screw: | 30:1 | Pipe Diameter: | 9-32mm |
Capacity: | 40kg/hour | Power: | 11 |
High Light: | PA Single Wall Corrugated Pipe Line,40kg/H Single Wall Corrugated Pipe Line,Extruded HDPE Corrugated Pipe Line |

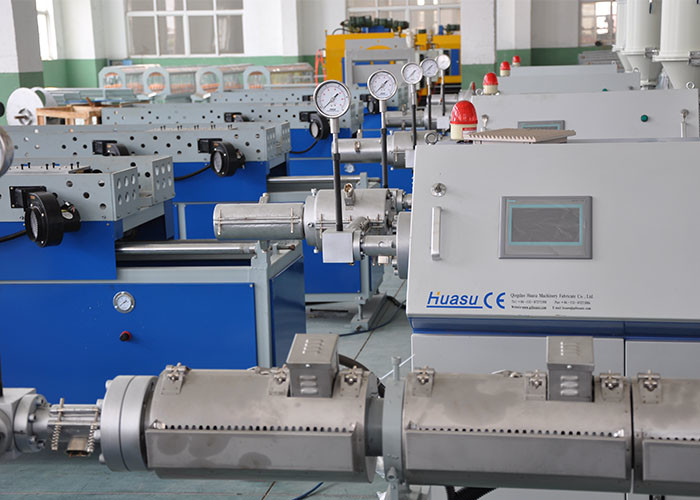

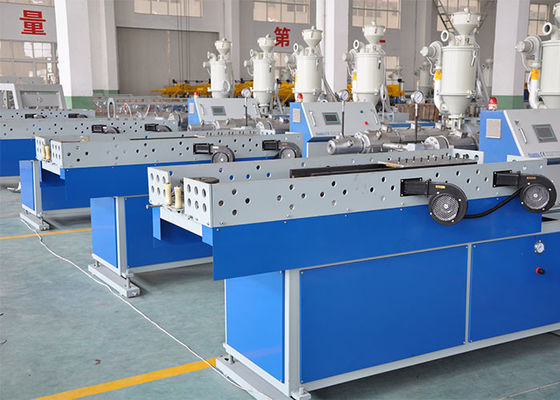

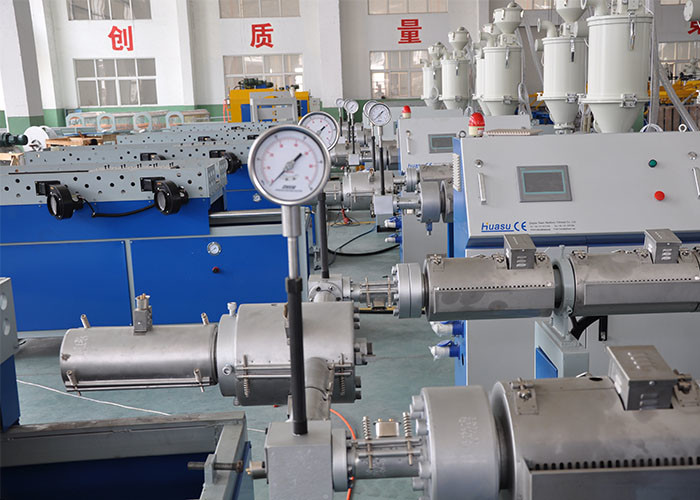

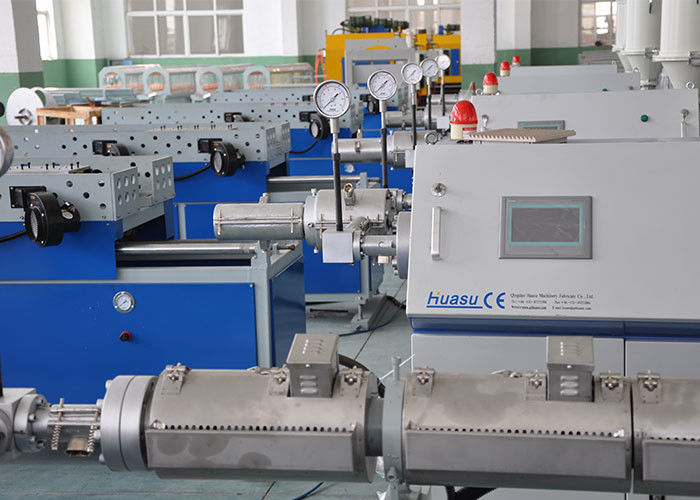

This line consists of SJ series of extruder, mould, moulding machine, air cooling unit , counter, winder, which can continually extrude corrugated pipes in different sizes.
Moulding unit adopts excellent steel modules, through heat processing, good wearability and high reliability, which ensures the hardness and precision of the modules; together with special gears make the modules more stable in performance.
It is mainly used for producing PP-R, PE pipes with diameter from 16mm~160mm, PE pipes with diameter from 16~32mm. Equipped with proper downstream equipment, it can also produce mufti-layer PP-R pipes, PP-R glass fiber pipes, PE and EVOH pipes. With years of experience for plastic pipe extrusion, we also developed high speed PP-R/PE pipe extrusion line, and the max production speed could be 35m/min (base on 20mm pipes).
model | pipe size | Extruder | motor power | Total length | max output |
HS 63 | 16~63mm | SJ65 | 37kw | 22m | 80~120kg |
HS 110 | 20~110mm | SJ75 | 55kw | 30m | 100~160kg |
HS 160 | 50~160mm | SJ75 | 90kw | 35m | 120~250kg |
Advantages:
This pipe extrusion line adopt energy efficient single screw extruder with special mould, production efficiency than single high-speed production line increased by 30%, energy consumption lower than 20%, also effectively reduced labor costs. The production of PE-RT or PE pipes can be realized by the appropriate transformation of the machine.
The machine could adopt PLC control and color large screen liquid crystal display screen composed of control system, the operation is simple, linkage across the board, machine adjustment, automatic fault alarm, the whole line appearance, stable and reliable production.
