Name: Single Screw 160MM HDPE Pipe Extrusion Line 300kg/H 90kW
Brand: Shandong Huasu Plastic Technology Co., Ltd
SKU: PE pipe extrusion line machinery
Availability: InStock

Home > Products > HDPE Pipe Extrusion Line >

Single Screw 160MM HDPE Pipe Extrusion Line 300kg/H 90kW

160MM HDPE Pipe Extrusion Line

HDPE Pipe Extrusion Line 300kg/H

Single Screw Pipe Extrusion Line

Place of Origin:

CHINA

Brand Name:

SD Huasu Brand

Certification:

CE, ISO

Model Number:

PE pipe extrusion line machinery

Request A Quote

Single Screw 160MM HDPE Pipe Extrusion Line 300kg/H 90kW

Product Details

Plastic Processed:

HDPE LDPE PP

Screw Design:

Single-screw

Key Selling Points:

Energy Saving

Output (kg/h):

80 - 180

Automatic Grade:

Automatic

Raw Material:

PPR PE Granules And Pellets

Highlight:

160MM HDPE Pipe Extrusion Line

HDPE Pipe Extrusion Line 300kg/H

Single Screw Pipe Extrusion Line

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Packaging Details

standard package or as required

Delivery Time

30 working days

Payment Terms

T/T

Supply Ability

50 sets/month

High Productivity Energy Saving Automatic HDPE Pipe Extrusion Line for Corrugated Plastic Pipes

Get Best Price

Video

Automatic HDPE Pipe Extrusion Line with Siemens PLC Control for High Productivity Corrugated Pipe Production

Get Best Price

Video

32mm - 1600mm Pipe Diameter HDPE Corrugated Pipe Making Machine with Siemens PLC Control and 100-2000kg/h Output

Get Best Price

Video

32mm to 1600mm Pipe Diameter Range HDPE Pipe Extrusion Line with Air Cooling and Water Cooling Featuring Siemens PLC Control

Get Best Price

Contact Now

Product Description

63-160MM HDPE PP PPR PE Pipe Production Line/Extrusion Machine/Making Machine

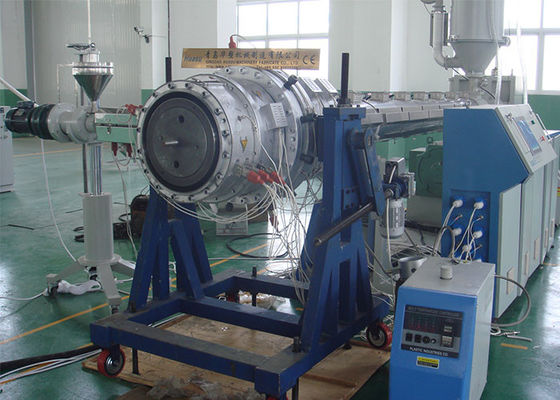

1. Distributed spiral composite extrusion die-head ensures the melting pressure and flux even and stable, the surface of pipe smooth and glossy.

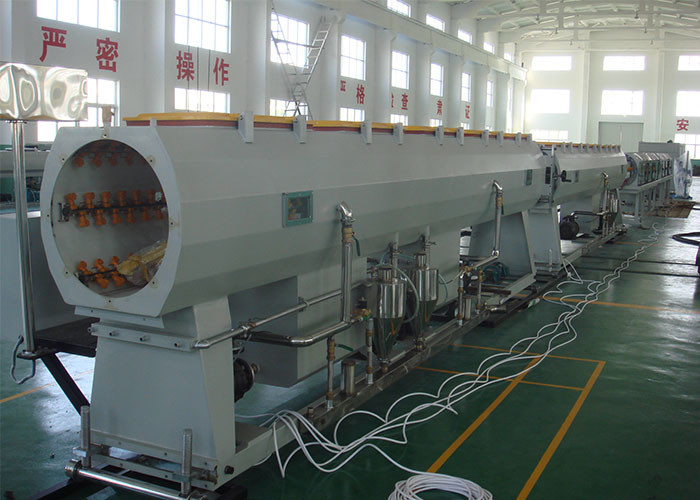

2. Vacuum calibration and spray water cooling tank made of stainless steel ensures precise calibration and fast cooling.

3. Adopts multi claws haul-off unit, speed adjusted by frequency inverter.

4. Equipped with planetary cutter. Be able to cut large diameter and thick wall pipe.

5. Equipped with pipe-making line.

6. Small diameter use winding machine. Large dimaeter pipe used stacker;

TECHNICAL PARAMETERS
Model	Pipe diameter	Extruder	Max. output	Haul-off speed	Motor power
PE63	16-63mm	SJ65/33	220kg/h	12m/min	55kW
PE110	20-110mm	SJ65/33	220kg/h	12m/min	55kW
PE160	50-160mm	SJ75/33	300kg/h	10m/min	90kW
PE250	90-250mm	SJ75/33	400kg/h	8m/min	110kW
PE450	160-450mm	SJ90/33	500kg/h	5m/min	160kW
PE630	315-630mm	SJ120/33	850kg/h	3.3m/min	280kW
PE800	500-800mm	SJ120/33	1000kg/h	1.8m/min	315kW
PE1200	710-1200mm	SJ150/33	1300kg/h	0.8m/min	355kW

The cofiguration is not unchangeable, please contact Ellen Liu for more details and make the special configuration based on your needs.
