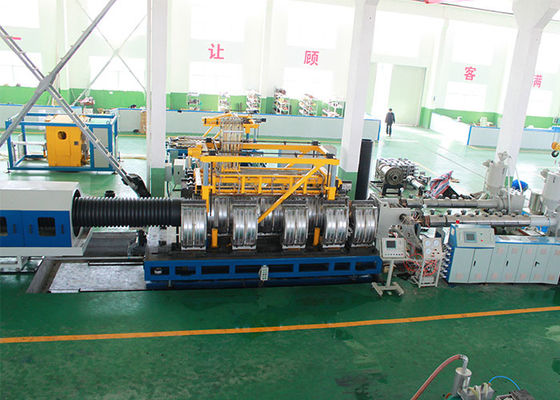

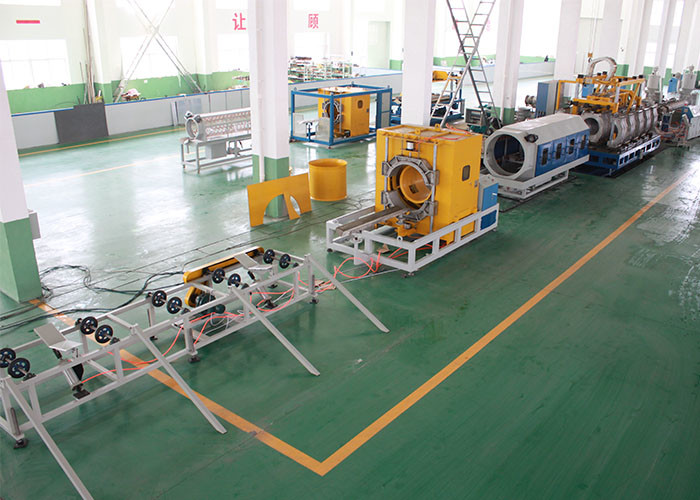

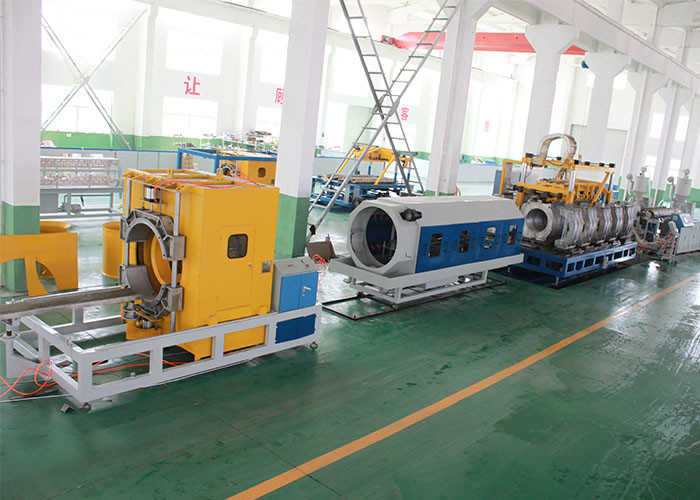

72rpm 75mm Screw DWC HDPE Tube Extrusion Line 5m/Min

Plastic Extruder Double Wall Corrugated PE PP HDPE Pipe Tube Production Line Making Machine

Double wall corrugated pipe is mature product which has the advantage of low weight, low cost, anti-corrosion, good ring stiffness and flexibility. Our company has developed PE double wall corrugated pipe extrusion line for more than 15 years. We have the whole series of double wall corrugated pipe machine: horizontal type, vertical type and shuttle type. Our machine can process wide range of material, including HDPE, PP, PVC, etc.

The fully automatic plastic double wall corrugated drain pipe extrusion making machine uses two high-speed single-screw extruders. Single-screw extruder: We use PE high-speed high-efficiency single-screw extruder. Its barrel is slotted type design.It is also equipped with a low-noise fan and a high-speed hard-surface gear box. The inner and outer layers of the double wall corrugated pipes are independently fed by two extruders. It achieves the use of different colors and different raw materials production, and ensures efficient extrusion.

This double wall corrugated pipe extrusion line can produce from inner diameter of 110mm to 250mm.

Our double wall corrugated pipe machine can use the aluminum module which with water cooling can vacuum cooling for high speed.We have professional designers and sophisticated processing machine to ensure the accuracy of the mold block.
