800mm HDPE DWC Corrugated Pipe Making Machine 80rpm

800mm HDPE DWC Corrugated Pipe Making Machine 80rpm

800mm HDPE DWC Corrugated Pipe Making Machine 80rpm
800mm HDPE DWC Corrugated Pipe Making Machine 80rpm
800mm HDPE DWC Corrugated Pipe Making Machine 80rpm
Product Details:
Place of Origin: CHINA
Brand Name: Shandong Huasu Brand
Certification: CE, ISO9001
Model Number: DWC pipe extrusion machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: standard package or as required
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description
Voltage: 380V 50HZ 3Phase (free Customized) Screw: Single Screw
Screw Speed (rpm): 80rpm Core Components: Motor, Gearbox, Screw
Motor Brand: Siemens Experience: 20 Years For Manufacturing DWC Pipe Production Line
High Light:

DWC Corrugated Pipe Making Machine

,

800mm Corrugated Pipe Making Machine

,

80rpm Corrugated Pipe Making Machine

Shandong Factory Price 200-800mm HDPE PE PP Plastic Double Wall Corrugated Pipe Making Machine 38CrMoALA Screw Material



Description of plastic double wall corrugated pipe making machine:

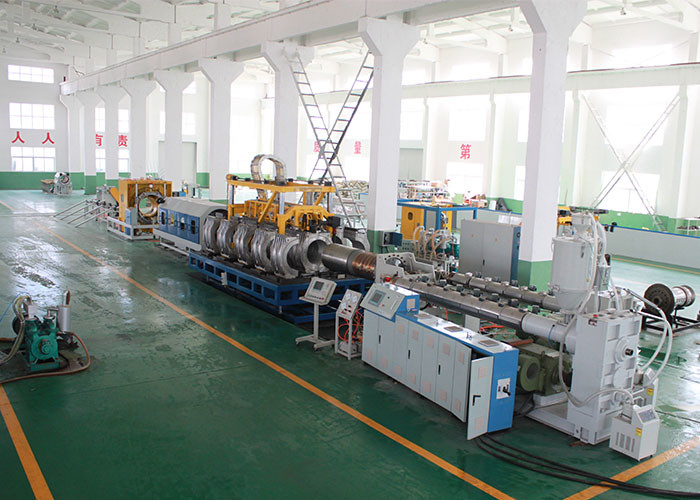

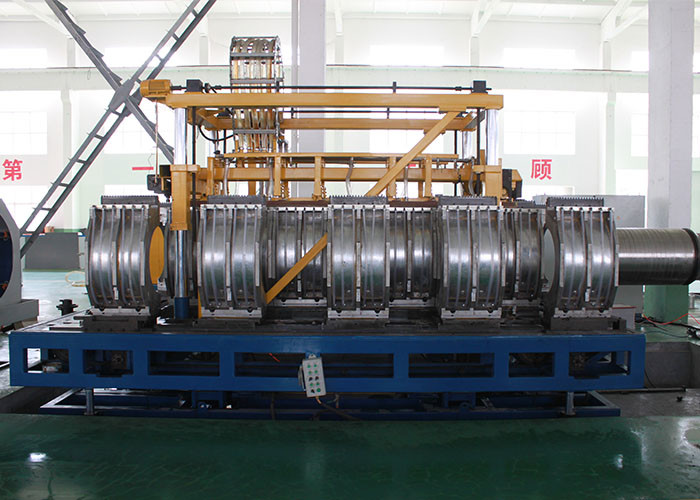

SGB800 (inner diameter Φ200-800mm) PE HDPE PP plastic double wall corrugated drainage pipe production machine has two single-screw extruders. The double wall corrugated pipe machine has a dual-channel structure and nitriding polishing head. The forming machine of this plastic pipe machine adopts horizontal structure, advanced water cooling system, vacuum forming system, automatic lubrication system and advanced double-layer on-line expansion function. The material of the molds is aluminum alloy. The complete production line uses the German Siemens production of professional PLC control system. It has a high degree of automation, reliable operation, easy operation and so on. The corrugated machine production speed is based on the extruder capacity.



The double wall corrugated pipe machine uses HDPE / PP as raw material. The inner wall of the double wall corrugated pipe produced by this corrugated pipe machine is very smooth and flat. And the outer wall is trapezoidal corrugated shape. This kind of double wall corrugated pipe has the characteristics of good corrosion resistance, high insulation, small flow resistance etc. as the ordinary plastic pipe, but also because of special inner and outer wall hollow ring structure, it has the advantages of high rigidity, light weight, high pressure resistance, good toughness, abrasion resistance, impact resistance, not easy damage, convenient construction, low installation cost, long service life etc.



The double wall corrugated pipe is generally connected by the expansion socket and the sealing ring. This can effectively prevent the impact of thermal expansion and contraction. The double wall corrugated pipe is widely used in the fields of highway, railway roadbed, subway engineering, waste landfill, tunnel, green belt, sports field and high water content caused by the slope protection and other drainage areas.

800mm HDPE DWC Corrugated Pipe Making Machine 80rpm 0800mm HDPE DWC Corrugated Pipe Making Machine 80rpm 1

Model SGB800 SGB600 SGB400 SGB250 SGB160
Structure Form Horizontal Horizontal Horizontal Horizontal Horizontal
Pipe Diameter Range 225-800mm 250-600mm 225-400mm 90-250mm 75-160mm
Max. Extrusion Output 1100kg/h 800kg/h 600kg/h 350kg/h 200kg/h
Expansion Mode Belling-on-line, double-wall socket joint

Belling-on-line,

double-wall socket joint

Belling-on-line,

double-wall socket joint

Belling-on-line,

double-wall socket joint

Belling-on-line,

double-wall socket joint
