| Place of Origin: | CHINA |
| Brand Name: | Shandong Huasu Brand |
| Certification: | CE, ISO9001 |
| Model Number: | DWC pipe extrusion line |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $20,000.00-350,000.00/SET |
| Packaging Details: | standard package or as required |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets/month |
| Single Screw Extruder 1: | 75/33 | Single Screw Extruder 2: | 65/33 |
|---|---|---|---|
| Moulds: | Each Size Has A Corresponding Set Of Moulds | Corrugator: | DWC 300 |
| Water Spraying Cooling Tank: | 1 Set | ||
| High Light: | PE Double Wall Corrugated Pipe Extruder,90mm Corrugated Pipe Extruder,HDPE Dwc Pipe Machine |
||
| Item | Name | Quantity |
| 1 | Single screw extruder SJ 75/33 | 1 set |
| 2 | Single screw extruder SJ 65/33 | 1 set |
| 3 | Mould (die head, mould blocks, water sleeve) | |

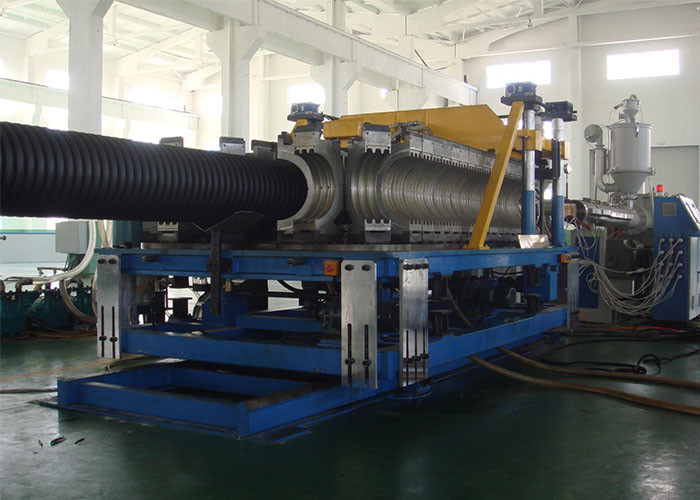

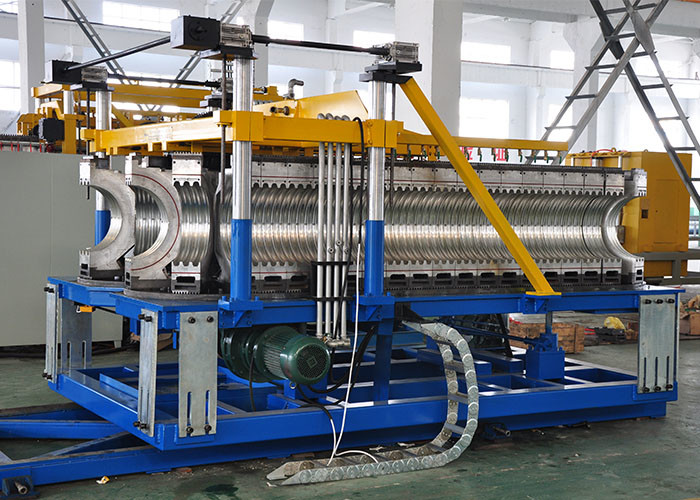

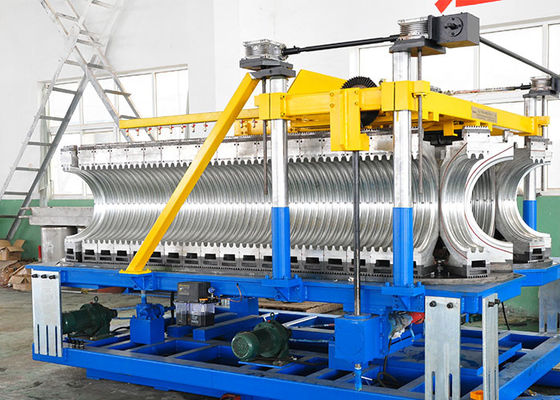

| 4 | Corrugator | 1 set |
| 5 | Water spraying cooling tank | 1 set |

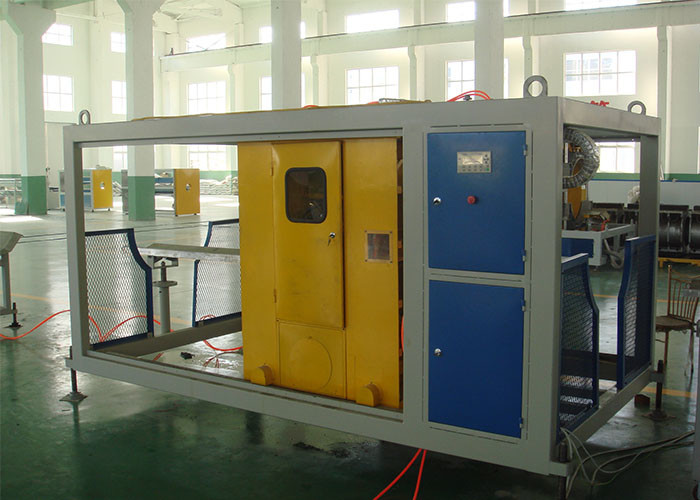

| 6 | Planetary cutting machine | 1 set |
| 7 | Pipe stacker | 1 set |
| 8 | PLC control system | 1 set |
Features of ID90-ID300mm HDPE Double Wall Corrugated Pipe Making Machine
The optimized configuration of the extruder not only meets the requirements of the production line for extrusion capacity, but also minimizes the power consumption of the production line. The buffer design of the feeding section of the extruder greatly reduces the power of the main drive motor; the extrusion system with a large L/D ratio (36:1) meets the requirements for high-speed, high-efficiency and high-quality extrusion of materials.
The well-developed mold running channel has a more compact structure and smoother operation, which makes the molding equipment run more smoothly and the equipment has a longer service life.
The surface of the mold running track is hardened with new technology, the hardened layer has high strength, does not fall off, and has a long service life.
The internal and external side wall adjustment structure of the extrusion die has completely reformed the traditional side wall adjustment structure (first loosen the fastening screw, then adjust the wall thickness adjustment screw, tighten the fastening screw, extrude the material to verify the adjustment effect, repeat Proceed until the requirements are met); there is no need to loosen any fastening screws first, and then directly adjust. Convenient operation, avoid leakage of melt, and extend the use of extrusion die.
