| Place of Origin: | CHINA |
| Brand Name: | Shandong Huasu Brand |
| Certification: | CE, ISO9001 |
| Model Number: | SBG 400 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard package or as required |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets/month |
| Model: | Huasu SBG 400 | Pipe Range: | 200mm-400mm |
|---|---|---|---|
| Production Speed: | 1.2m/min | Speed Type: | Normal Speed |
| Advantage: | Cheap And Good Quality | More Types: | High Speed Available |
| High Light: | HDPE Double Wall Corrugated Pipe Machinery,Siemens HMI Corrugated Pipe Machinery,PP Dwc Pipe Manufacturing Machine |
||

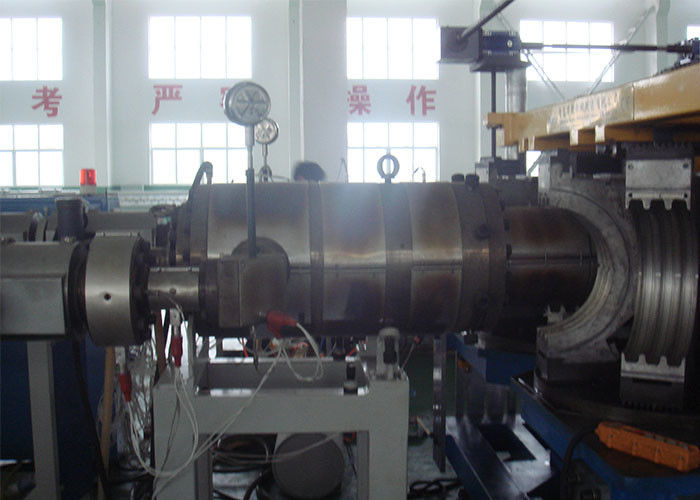

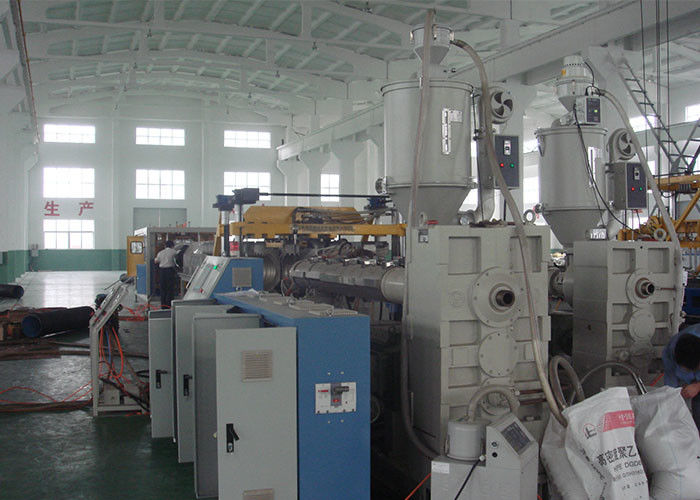

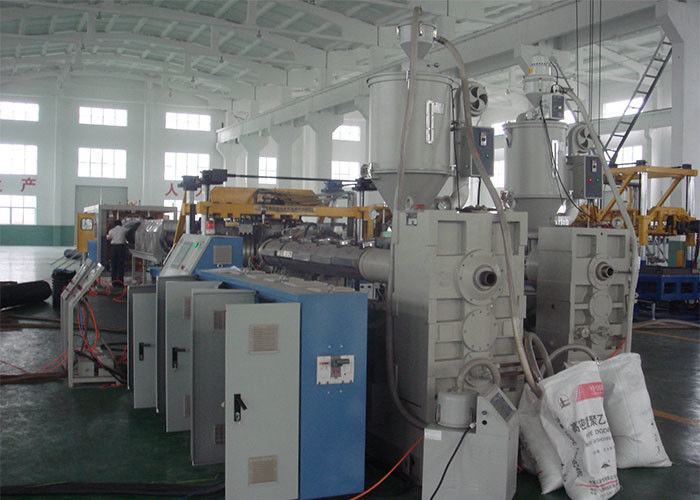

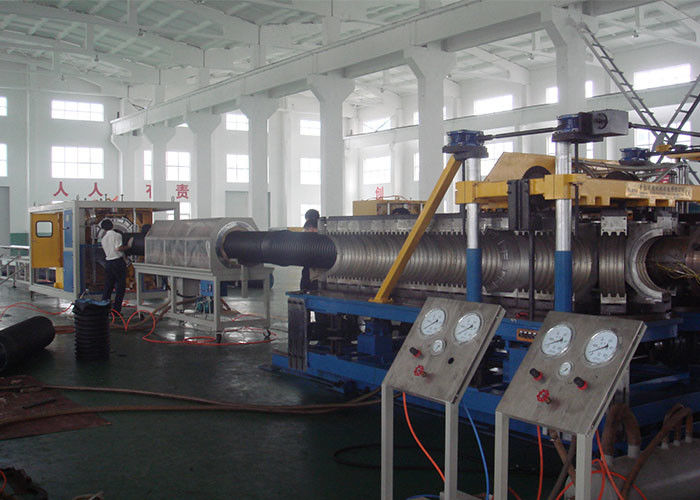

Siemens HMI HDPE PP DWC Double Wall Corrugated Pipe Machine Great Quality DWC Pipe Machinery
The corrugated pipe line is the 3rd generation of improved product of Shandong Huasu. The output of the extruder and the production speed of the pipe are greatly increased by 20-40% compared with the previous product. Online belling can be achieved to ensure the performance of the formed corrugated pipe products. Adopts Siemens HMI system.
Machine features:
1.The newly designed closed molding machine adopts a special high-efficiency cooling system for forming aluminum modules, which greatly improves the cooling efficiency in the production of corrugated pipe products;
2.High-speed, high-output single-screw extrusion machine supporting a professional design of the corrugated pipe extrusion mould to achieve large-scale stable extrusion;
3.Good interchangeability of the module; the aluminum forming module uses LY12 high-quality alloy aviation aluminum material with copper content ≥ 5%, precision pressure casting process, high density material, no light pores, long-term use is not easily deformed. Can customize various module waveform schemes according to the user's requirements;

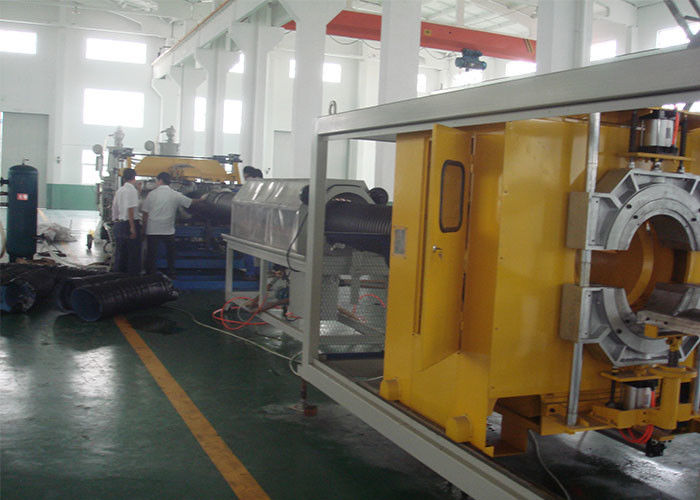

4.Supporting automatic DWC cutter, computer control, accurate cutting position, stable running and easy to operate.
Machine specification:
| No. | Machine model | Pipe diameter (mm) |
HDPE/PP Capacity(Kg/h) |
Max.Speed (m/min) |
| 1 | SBG-300 | 110-300 | 500 | 5.0 |
| 2 | SBG-800 | 200-600 | 600 | 5.0 |
| 3 | SBG-800 | 200-800 | 1000 | 3.0 |
| 4 | SBG-1000 | 200-1000 | 1200 | 2.5 |
| 5 | SBG-1200 | 800-1200 | 1400 | 1.5 |
