|Place of Origin:||CHINA|
|Brand Name:||Shandong Huasu Brand|
|Model Number:||SBG 300|
|Minimum Order Quantity:||1 SET|
|Packaging Details:||standard package or as required|
|Delivery Time:||40 working days|
|Supply Ability:||40 sets/month|
|Model:||Huasu SBG 300||Pipe Range:||150mm-300mm|
|Power:||135kw||Local Service Location:||Turkey, Russia, Kenya, Uzbekistan|
High Speed Dwc Pipe Extrusion Line,
ID100mm Dwc Pipe Extrusion Line,
135kw Dwc Pipe Manufacturing Machine
SBG300 dwc pipe extrusion line high speed corrugated pipe manufacturing machine - ID100mm to ID300mm

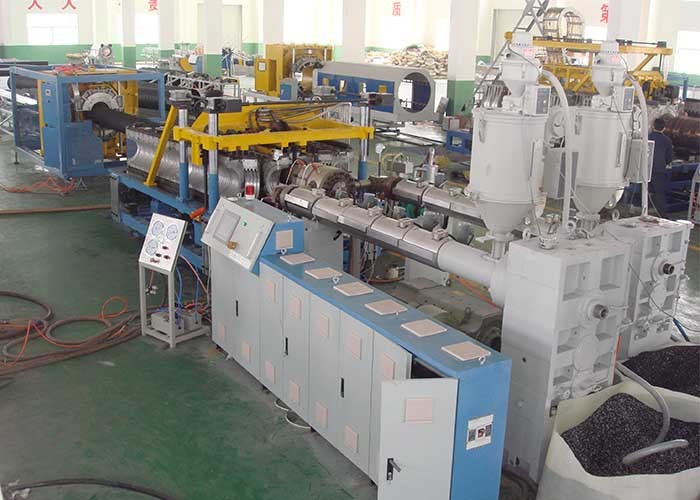

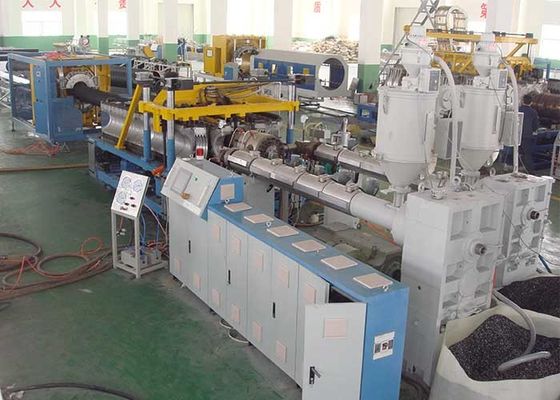

1. The double wall corrugated pipe extrusion line uses two high-speed single-screw extruders. Single-screw extruder: We use PE high-speed high-efficiency single-screw extruder. Its barrel is slotted type design. It is also equipped with a low-noise fan and a high-speed hard-surface gear box. The inner and outer layers of the double wall corrugated pipes are independently fed by two extruders. It achieves the use of different colors and different raw materials production, and ensures efficient extrusion.
2. Extrusion mold: It has dual flow channel structure. It goes through the nitriding and polishing process. The special design of the die is suitable for the production of different materials and different ring stiffness pipes. The special mold structure ensures that the inner and outer layers are evenly and stably formed.

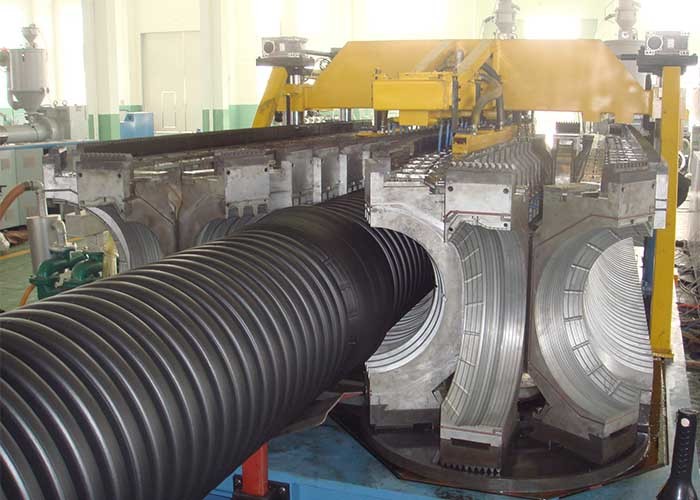

3. Forming machine: It adopts horizontal structure and chain drive design. At the same time, it is also equipped with an open water cooling system and a vacuum forming system. This ensures a high production rate for continuous production. The mold adopts the mechanical up and down synchronous drive and the advanced programmable lubrication system. These make the molds have a long service life, ensure the accuracy of the operation and ensure the quality of the pipe. Because of using advanced online expansion function, we can expand the double wall corrugated pipe online. This significantly reduces the investment and the improves production efficiency.
Focusing on R&D of plastic dwc corrugated pipe extrusion line, with years experience, we will keep on doing our best to provide you the best dwc pipe machine.
