PVC PE PP Single Wall Corrugated Pipe Making Machine 250mm Pipe Diameter

Special Design PVC PE PP Single Wall Corrugated Pipe Making Machine Corrugated Pipe Extruders For Sale

EXtruder .

Adopt L/D ratio 38:1 screw for virgin material. Adopt L/D 33:1 screw for recycled material. We also have choice of twin screw and barrel for other material such PVC powder, PP powder, etc. Provide suitable extruder for different customer requirements.

Die Head and Calibration sleeve.

Both outer layer and inner layer are extruded inside die head.
Each material flow channel inside die head is placed evenly. Each channel is after heat treatment and mirror
polishing to ensure material flow smoothly. Also die head provides compressed air between both layer. Calibration
sleeve is used to cool inner layer to form smooth and flat pipe inside. Pressure water flows inside calibration sleeve
to have good cooling effect. Vacuum is created on calibration sleeve surface when producing big diameter pipe,
ensure inner pipe roundness.

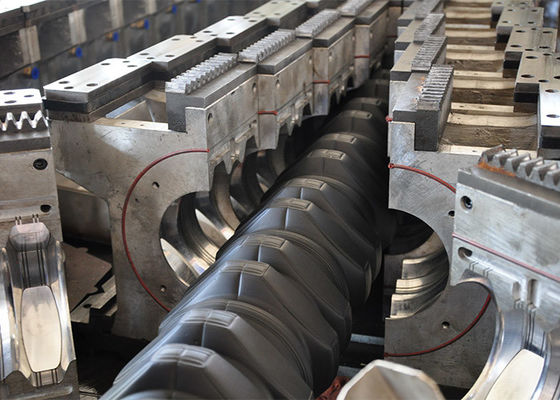

Corrugator.

Corrugator is used to place and move corrugated mould. Vacuum is created to absorb outer layer into
corrugated mould to form corrugate shape. By moving corrugated mould, pipe is also pulled out from corrugator.
