Sewerage Drainage Double Wall Corrugated Pipe Extrusion Line For Fields Streets
| Place of Origin | CHINA |
|---|---|
| Brand Name | Shandong Huasu Brand |
| Certification | CE, ISO9001 |
| Model Number | 250mm diameter spec |
| Minimum Order Quantity | 1 SET |
| Price | $200,000.00/set and negotiable |
| Packaging Details | standard package or as required |
| Delivery Time | 40 working days |
| Payment Terms | T/T |
| Supply Ability | 40 sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Advantage | Special Design For Japan | Pipe Diameter | 50-250mm |
|---|---|---|---|
| More Specification | Available | Company | Shandong Huasu Plastic Technology CO., Ltd. |
| Production Experience | 19 Years | ||
| Highlight | ISO9001 Sewerage Corrugated Pipe Extrusion Line,Streets Drainage Corrugated Pipe Extrusion Line,Double Wall Corrugated Pipe Machine |
||
Product Description

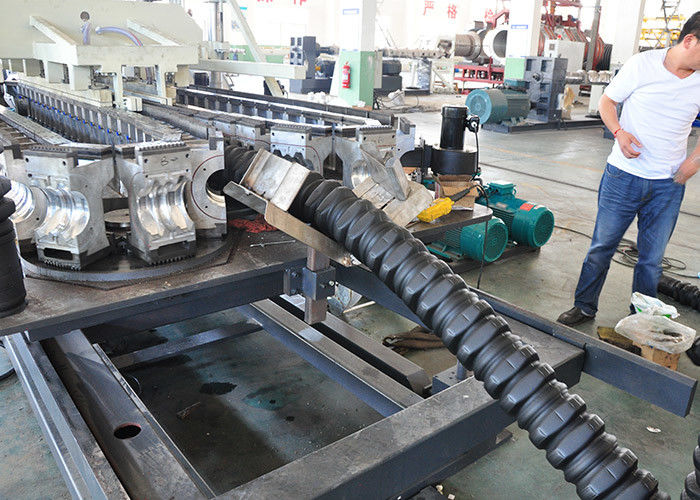

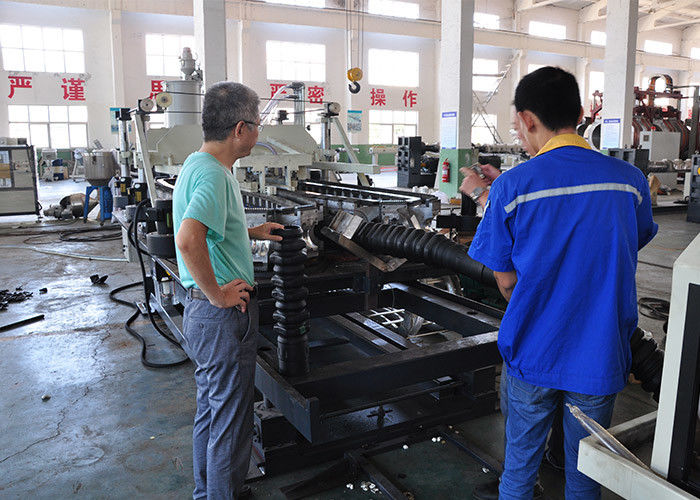

Double Wall Corrugated Pipe Extrusion Line For Making Sewerage, Drainage Pipes For Fields, Streets
It is fully computer controlled,automatic production line (Ø110-Ø250). It has features of high and stable output capacity as well as highly automatic operation. According to the material situation, for HDPE, you can choose high efficient single screw extruder. For PVC, you can choose conical twin screw extruder. The forming system of this line consists of mould and corrugator. The mould blocks can bu easily changed and they are equipped with air or water cooling system. The production line can also be equipment with siemens company SIEMENS control system.
The use of the final product:
Storm water and sewerage, drainage pipes for fields, streets, roads, squares and buildings,conveyor pipes, protection pipes for TV, glassfiber, telephone, electricity, IT and computer;protection pipes for cables, district heating systems, domestic connection lines ,structural and civil engineering.
| Model | SGB250 | SGB110 |
| Structure Form | Horizontal | Horizontal |
| Applicable Raw Materials | HDPE/PP/PVC | HDPE/PP/PVC |
| Pipe Diameter Range | 110-250mm | 50-110mm |
| Max Extrusion Output | 350kg/h | 300kg/h |
| Expansion Mode | Belling-on-line, double-wall socket joint |
No expander |
| Forming Speed | 0.5-5m/min | 0.5-5m/min |
| Centre Height | 1100mm | 1100mm |
| Number of Mold Blocks(pairs) | 48 | 50 |
