Product Details:
Place of Origin: CHINA
Brand Name: Shandong Huasu Brand
Certification: CE, ISO9001
Model Number: pvc extrusion line double wall type
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: US $120,000/set
Packaging Details: standard package or as required
Delivery Time: 45working days
Payment Terms: T/T
Supply Ability: 10 sets/month
Contact Now
Detailed Product Description
Production Capacity: 600kg/H Transport Package: Wooden
Payment Terms: L/C, T/T Product Type: PVC Pipe
Screw No: Double-screw Advantage: Strong Cooling Ability
High Light:

PVC Double Wall Corrugated Pipe Extrusion Line

,

PE Double Wall Corrugated Pipe Extrusion Line

,

PE Plastic Tube Machine

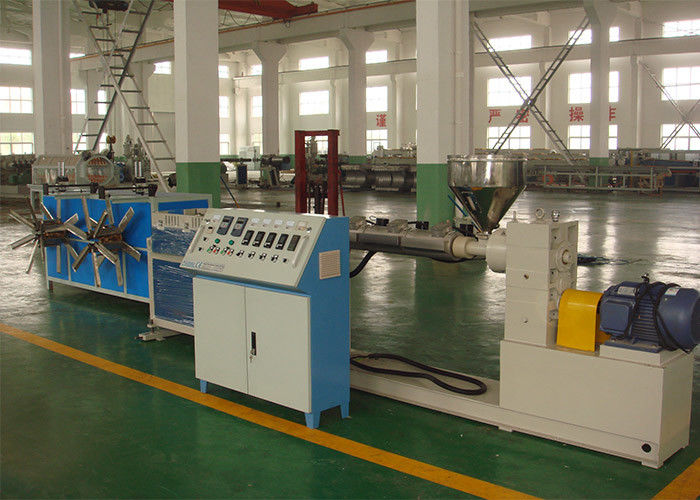

Plastic Machine PVC/PE Double Wall Corrugated Pipe Extrusion Production Line

Main Technical Parameters (double-wall)


Type

SBG400

SBG600

SBG800

Pipe OD

225-400

225-600

225-800

Mould Size (mm)

225, 300, 400

400, 500, 600

500, 600, 800

Extruder

SJ75/33

SJ90/33

SJ120/33

Output (kg/h)

600

800

1000

Max. Speed (m/min)

5

5

3

Installed Power (kw)

480

580

750



PE/PVC double wall corrugated pipe production line is our company collection for many years of experience in manufacturing corrugated pipe equipment, on the basis of absorbing foreign advanced technology and manufacturing processes, well designed developed. It is not afraid of acid, corrosion resistance and good sealing, no water seepage, high ring stiffness, friction coefficient, anti-aging, anti-electric erosion, softness and good features. Applications for wires, cables threading pipe, washing machine drains, vacuum cleaner tubes, ventilation tubes, etc.

Machine features PE/PVC double wall corrugated pipe production line:

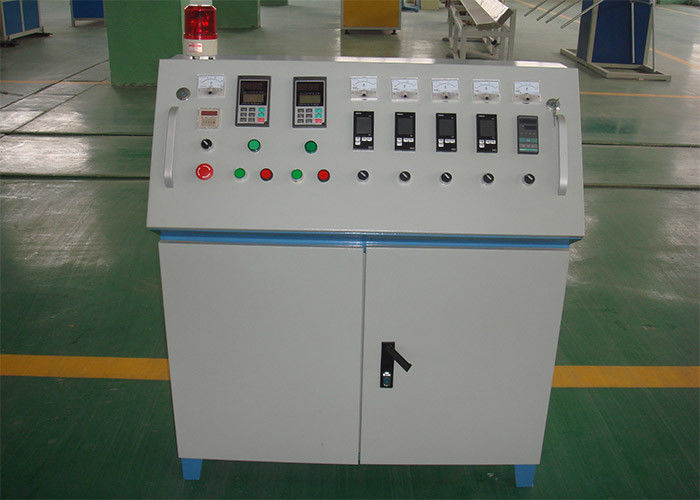

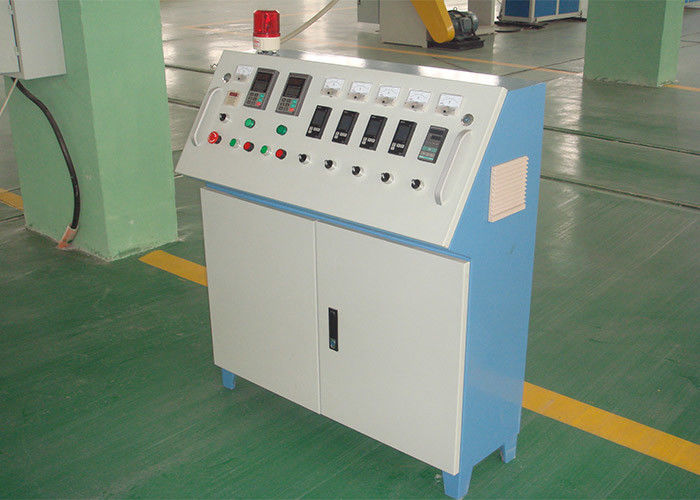

1, Adopt to PLC control system it is more accurate more intellectualize control order makes the operation more simple.

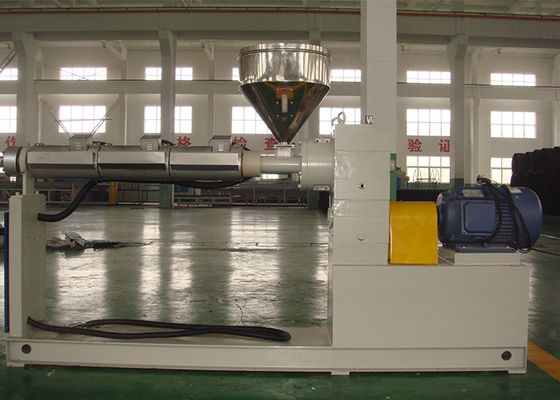

2, The production line is the single screw extruder in high efficiency, has the independent water and air circular system and form the double wall corrugated pipe by cooling water and compress air.

3, Corrugated forming system with strong cooling ability operation more simple efficiency;

4, The mould surface is nitrided, has the adjust equipment to adjust the wall thickness, it suitable for different diameters pipes.

5, Extruder has air cooling and water cooling function.
