Product Details:
Place of Origin: CHINA
Brand Name: Shandong Huasu Brand
Certification: CE, ISO9001
Model Number: pvc extrusion line double wall type
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: US $25,000/ Piece
Packaging Details: standard package or as required
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 10 sets/month
Contact Now
Detailed Product Description
Feeding System: Automatic Feeding System Production Type: PE/PP/PVC Corrugated Pipe
Pipe Range: 16mm-1500mm Pipe Application: Cable Casing And Protection
High Light:

16mm Single Wall Corrugated Pipe Extrusion Line

,

1500mm Single Wall Corrugated Pipe Extrusion Line

,

1500mm pvc pipe extrusion machine

Plastic PVC/PE/PP Single Wall Corrugated/Corrugation Pipe Tube/Hose Extrusion Production Line



Introduction of PE/PP & PVC Single Wall Corrugated Pipe Production Line

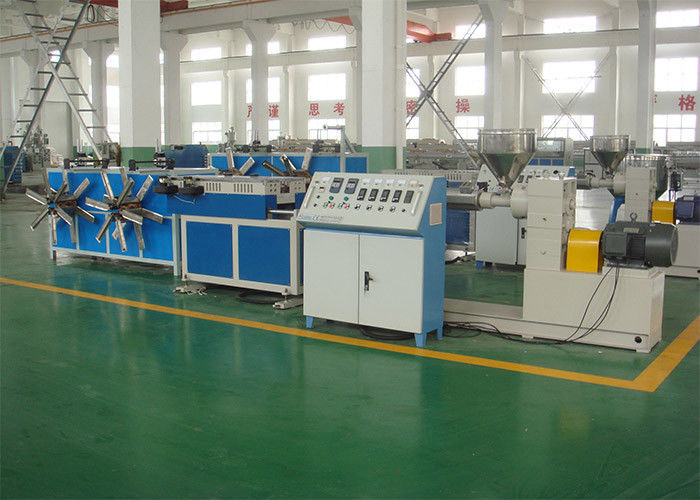

It consists of automatic feeding system/single screw extruder/die head/forming machine /winder. It is mainly produce PE/PP/PVC single corrugated pipe. The PE/PP/PVC single corrugated pipe is mainly used in the golf course, playgrounds as light load of drainage, floods; Interior decoration cable casing; Automotive wire casing; The washing machine, air conditioner drain; Prestressed concrete special pipe, etc.

Model Pipe Diameter (mm) Motor Power Speed (m/min) Max .Output (kg/h) Total Power
SJ-45X30 5-15 15 1-20 45 35
SJ-50X30 16-32 18.5 1-15 90 55
SJ-65X30 40-63 37 1-10 120 70

Characteristics and Application of Pipe:
Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.
They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine,These corrugated pipes are especially used as wires of the up-market cars, electric conduit pipe passing, washing machine, air conditioner pipe, lamp pipes, etc.
Machine's Features:
Plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall.
-----Production speed is 15m/min to 25m/min.
-----The forming machine has 38 pairs to 72 pairs forming block.

Machine parts list:

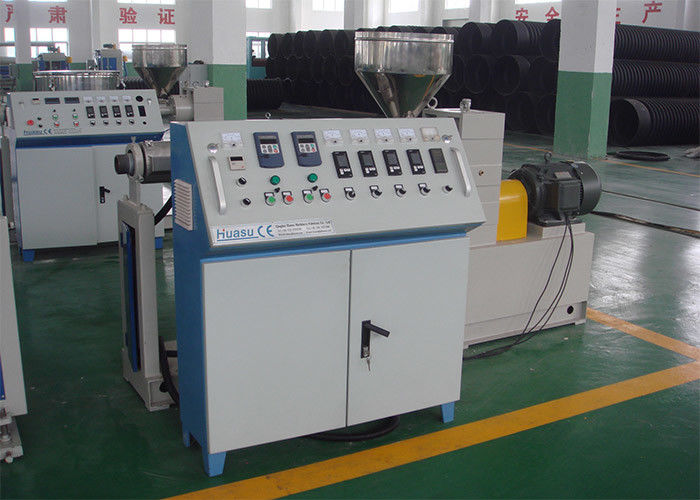

1. Single screw extruder: SJ-45/30, 65/30
2. Corruated pipe mold: 50-72pairs
3. Corrugated pipe forming machine

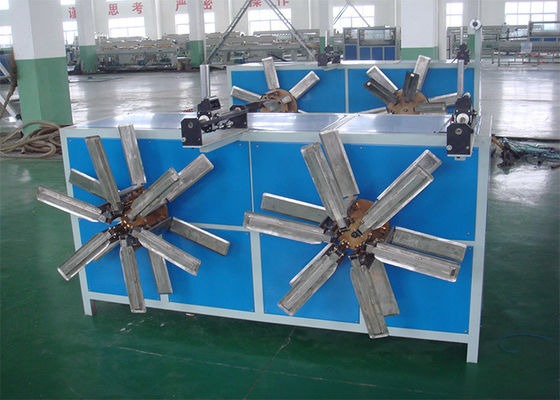

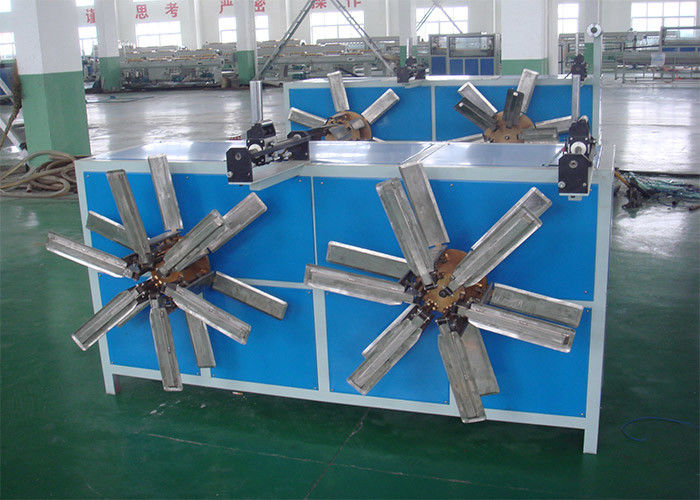

4. Double station winder
5. Electric control cabinet.
