Plastic 9-32mm Single Wall Corrugated Pipe Extrusion Line Tube Hose Making Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | Shandong Huasu Brand |
| Certification | CE, ISO9001 |
| Model Number | PE PP single wall corrugated pipe extrusion line |
| Minimum Order Quantity | 1 SET |
| Price | US $12,000-45,000/ SET |
| Packaging Details | standard package or as required |
| Delivery Time | 45 working days |
| Payment Terms | T/T, L/C, D/P |
| Supply Ability | 10 sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Type | Plastic Corrugated Pipe | Control System | PLC |
|---|---|---|---|
| Screw & Barral Material | 38CrMoAl,Bimetallic,Nitrogen Treatment | Electric Elements | Siemens Or Schneider |
| Material | 304 Stainless Steel | Voltage | 380V 50Hz 3phase (Customized) |
| Highlight | 32mm Single Wall Corrugated Pipe Extrusion Line,9mm Single Wall Corrugated Pipe Extrusion Line,32mm Tube Hose Making Machine |
||
Product Description

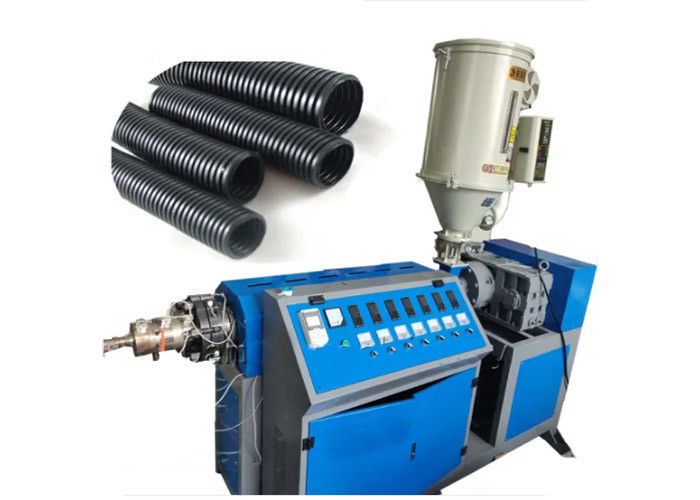

Plastic Corrugated Pipe Tube Hose Making Machine Single Corrugated Wall Tube Line
Product Description of single wall corrugated pipe making machine
Application OF Plastic Corrugated Pipe Tube Hose Making Machine Single Corrugated Wall Tube Line :
The single wall corrugated pipe are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc
Features OF Plastic Corrugated Pipe Tube Hose Making Machine Single Corrugated Wall Tube Line :

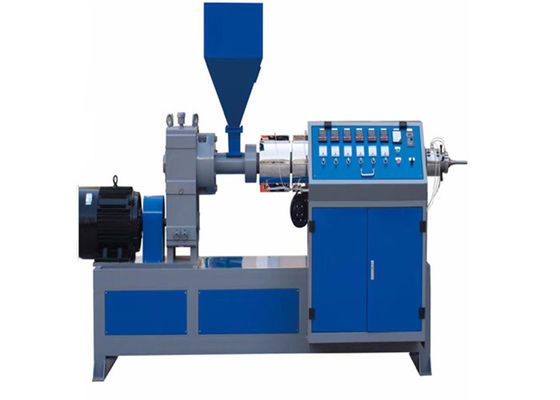

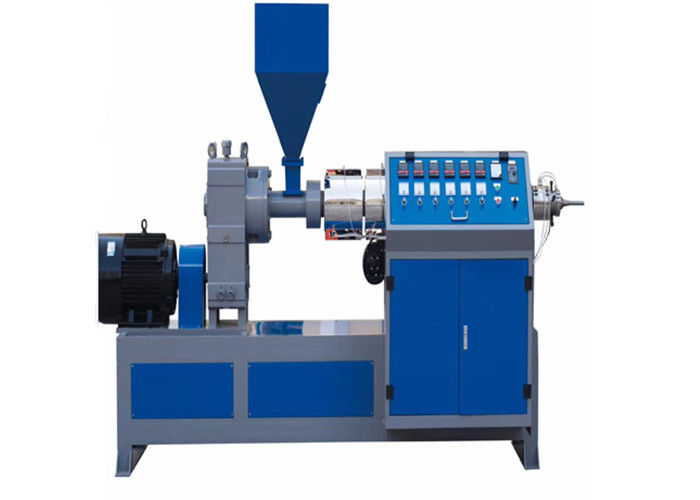

1.Extruder: high efficient screw, hard gear surface gearbox, uniformed raw material heating, good plasticization, high extrusion speed.

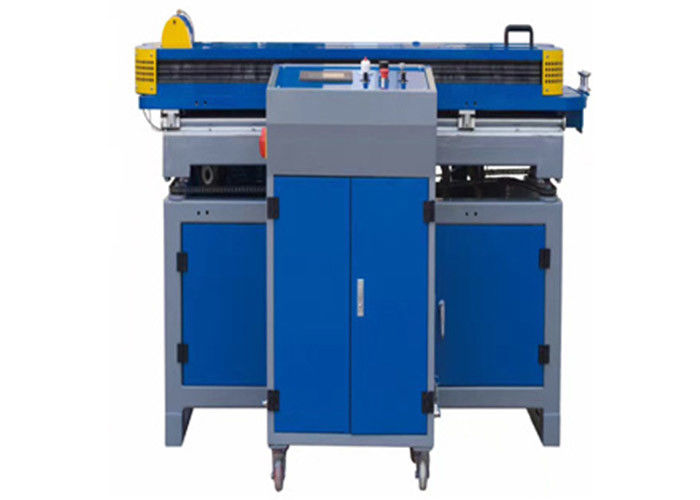

2.Corrugation forming machine: closed structure, module link in the overall closure base does round-trip running in the running tunnels.
3.Forming modules: it is made of hard steel, dealed with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the molding modules. These modules are easy and convenient to change
4.Coiler/Winder :Single position or double position with torque motor.
Technology data OF Plastic Corrugated Pipe Tube Hose Making Machine Single Corrugated Wall Tube Line:
Model |
Pipe diameter range(mm) | Screw diameter(mm) | Motor power (kw) |
Molding power (kw) |
Rewinder power (kw) |
Output (m/min) |
| SJ45 | 9-32 | 45 | 11 | 5.5 | 1.5 | 3-12 |
| SJ65 | 20-50 | 65 | 30 | 5.5 | 3 | 1.5-6 |
| SJ90 | 75-160 | 90 | 37 | 5.5 | 5.5 | 1-5 |
