Place of Origin: | CHINA |
Brand Name: | Shandong Huasu Brand |
Certification: | CE, ISO9001 |
Model Number: | Single-screw PE pipe extrusion line |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | US $39000/ Set |
Packaging Details: | standard package or as required |
Delivery Time: | 30 working days |
Payment Terms: | T/T |
Supply Ability: | 30 sets/month |
Product Type: | PPR Pipe | Screw No: | Single-screw |
---|---|---|---|
Trademark: | SD HUASU Or As Required | Transport Package: | Exporting Package |
Origin: | Qingdao, Shandong | Port: | Qingdao Port |
High Light: | Pe Pp Transportation Pipe Extrusion Line,Water Supplying Pipe Extrusion Line,Pe Pp plastic pipe extrusion line |

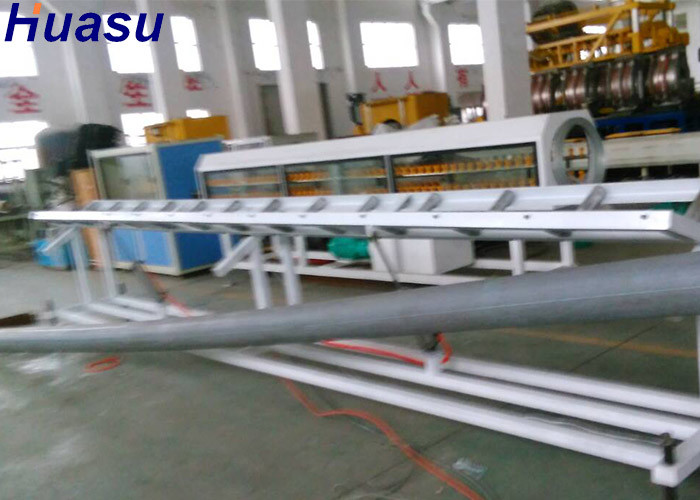

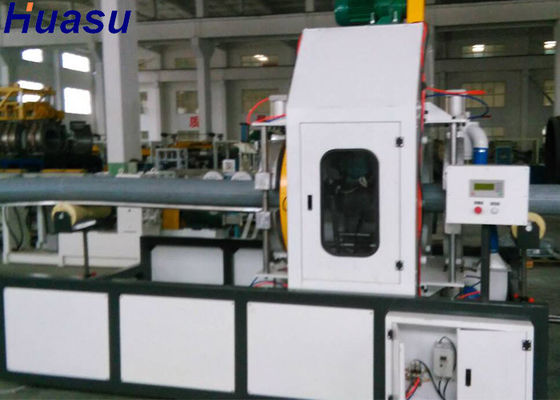

Pe/Pp Water Supplying And Transportation Pipe Extrusion Line
Brief Introduction of Pe/Pp Water Supplying And Transportation Pipe Extrusion Line:
PE pipe production line is primarily used in the manufacturing of PE pipes with diameters ranging from 16mm to 1200mm. The various thickness of the pipes produced can make them suitable for applications range from urban water supply to gas transportation. This line also excels in the production of anti-flammable and anti-static electricity pipes using a two or three layer spiral mould for use in mining industries. Pipes produced feature even wall-thickness and perfect roundness. Through switching or adding certain part of machine unit, this line can also be customized to extrude pipes of various other kinds.
Application of Pe/Pp Water Supplying And Transportation Pipe Extrusion Line:
Water supplying and transportation pipe
Gas distribution and transportation pipe
Main Features of Pe/Pp Water Supplying And Transportation Pipe Extrusion Line:
The optimum spiral structure-feeding throat highly improves the output of extruder;
Accurate temperature control system ensures materials melting performance;
Unique screw design achieves better plasticizing and high quality products;
Precisely designed gearbox with a high torsion guarantees stable running;
"H" shape frame to decrease vibrating of extruder;
Advanced PLC operation system realizes synchronization and automation;
Adopt automatic water temperature & level control and special independent filters on both vacuum and cooling tanks;
Offer stable haul-off unit with 2-12 caterpillars;
Provide saw & chip-free cutting options;
Low energy consumption, excellent performance, and easy maintenance.
Technical Specifications of Pe/Pp Water Supplying And Transportation Pipe Extrusion Line:
Item/Model | HS63 | HS110 | HS160 | HS250 | HS315 | HS630 | HS800 |
Diameter range (mm) | 16-63 | 16-110 | 50-160 | 50-250 | 110-315 | 315-630 | 400-800 |
Claw number of haul off (pcs) | 2 | 2 | 2 | 3 | 4 | 6 | 8 |
Pulling force (KN) | 6 | 8 | 11 | 20 | 30 | 40 | 50 |
Pulling speed (m/min.) | 15 | 12 | 8 | 9 | 4 | 2 | 2 |
