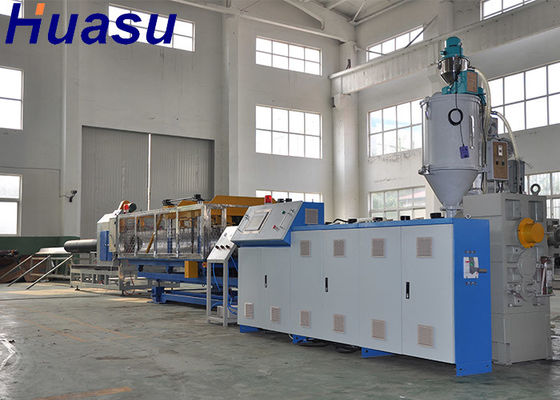

Plastic PE PP Double Wall Corrugated Pipe Extrusion Production Machine Line

  • Plastic PE PP Double Wall Corrugated Pipe Extrusion Production Machine Line
  • Plastic PE PP Double Wall Corrugated Pipe Extrusion Production Machine Line
Place of Origin CHINA
Brand Name Shandong Huasu Brand
Certification CE, ISO9001
Model Number Corrugated Pipe Extrusion Production Machine
Minimum Order Quantity 1 SET
Price US $98,500/ Set
Packaging Details standard package or as required
Delivery Time 30 working days
Payment Terms T/T
Supply Ability 30 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. ST-150 Co-Extrusion Technology HDPE Plastic Material
High Efficiency Single Screw Extruder High Efficiency Single Screw Extruder High Automation Reliable Running
High Speed Production Low Energy Consumption Specification CE
Highlight

Plastic PE corrugated pipe production line

,

Plastic PP corrugated pipe production line

,

400mm Double Wall corrugated pipe production line
Leave a Message
Product Description

Plastic PE PP Double-Wall Corrugated Pipe Extrusion Production Machine Line

Machine Features of Plastic PE PP Double-Wall Corrugated Pipe Extrusion Production Machine Line​:
1. Completely european standard, electric protection, heating protection, over load protection.
2. All electric parts are all internationally famous brand.
3. Machine size can be designed based on customer demands.
4. The electric control box can be replaced by PLC control.

The whole HDPE/PP double wall corrugated pipe production line is suitable for the high speed extrusion of HDPE, LDPE, and PP material.

It adopts high speed high efficiency single screw extruders directly extruding forming technology, special structure die head, forming stably. Corrugator adopts horizontal structure with chain type transmission. Aluminum alloy mold blocks equipped with open water cooling system and advanced self-lubrication system to improve production speed greatly. The whole production line adopts Germany Siemens professional PLC control system, high automation, reliable running, and easy operation.

PE double wall corrguated pipe production line adopts complicated mechanic head ,double combiated machine to production to provide material and spiral writhe .

For HDPE,you can choose high efficient single screw extruder.

For PVC,you can choose conical twin screw extruder or parallel twin downstream equipment

The forming system of this line consists of mould and corrugator.The mould blocks can be easily changed and they may have air or water cooling system.



Technical parameters of Plastic PE PP Double-Wall Corrugated Pipe Extrusion Production Machine Line​:

Model
ST-1500
ST-1000
ST-500
ST-250
ST-160
ST-90

Structure Form
Vertical
Vertical
Horizontal
Horizontal
Horizontal
Horizontal

Applicable Raw Materials
HDPE
HDPE
HDPE
HDPE
HDPE
HDPE

Pipe Diameter Range
400-1500
250-1000
160-500
90-250
75-160
40-90

Max Extrusion Output
1200
850
600
350
200
100

Expansion Mode
Belling-on-line,double-wall socket joint
Belling-on-line,double-wall socket joint
Belling-on-line,double-wall socket joint

Forming Speed
0.25-2.5
0.25-2.5
0.4-4
0.5-5
0.6-6
0.8-8

Axis Height
1600
1600
1150
1100
1000
1000

NumberofMoldBlocks(pairs)
42
42
40
48
57
48

Total lnstalled power
820
660
385
240
150
95

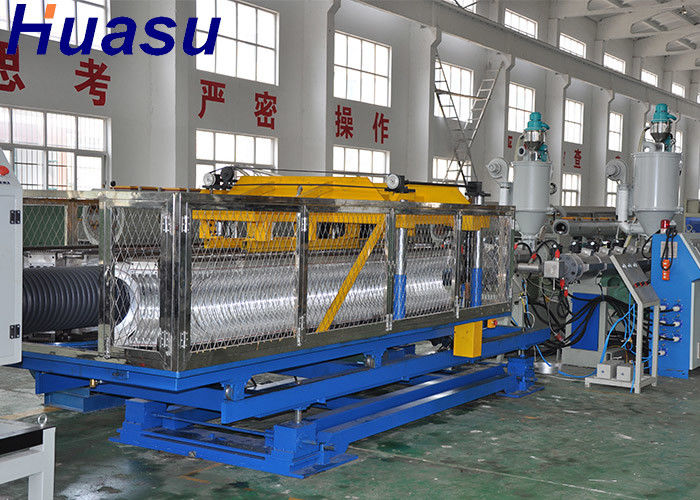

Plastic PE PP Double Wall Corrugated Pipe Extrusion Production Machine Line 0
