Place of Origin: | CHINA |
Brand Name: | Shandong Huasu Brand |
Certification: | CE, ISO9001 |
Model Number: | PVC Double Wall Corrugated Pipe Extrusion Machine |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | US $6,800-57,000/ Set |
Packaging Details: | standard package or as required |
Delivery Time: | 30 working days |
Payment Terms: | T/T |
Supply Ability: | 5 sets/month |
Plastic Processed: | PVC,PP,PE | L/D: | 30:1 |
---|---|---|---|
Pipe Range: | 8-75mm 75-160mm | Transport Package: | Film Package Or Woodcase Package |
Brand: | Shandong Huasu | Warranty: | 1 Year |
High Light: | PVC Double Wall Corrugated Pipe Extrusion Machine,HDPE Double Wall Corrugated Pipe Extrusion Machine,HDPE PVC corrugated pipe production line |

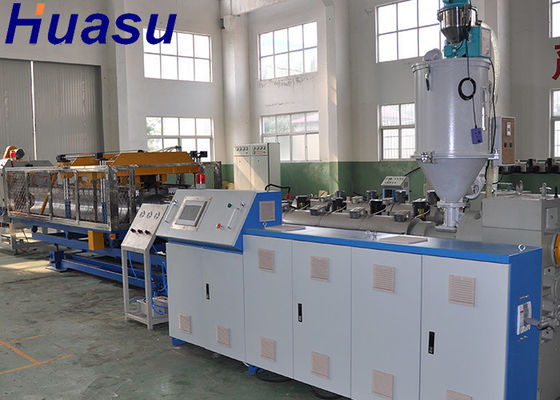

Features of Plastic HDPE/PVC Double Wall Corrugated Pipe Extrusion Machine:
1.Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.
2.Molding corrugation pipe with smooth inside and outside surface,and even ripple at one time by corresponding die
Product Application of Plastic HDPE/PVC Double Wall Corrugated Pipe Extrusion Machine:
1.The production line is suitable for producing small diameter single wall bellows with PP and PE raw materials. It can continuously produce polyethylene, polypropylene, polyvinyl chloride, Eva and other bellows and PA bellows.
2.It is used as wire and cable to wear pipe, washing machine drainage pipe, vacuum cleaner pipe and ventilator
3.It is widely used in automobile wire, electric wire pipe, machine tool circuit, lamp wire protection tube, air conditioner, washing machine and so on.
Process line of Plastic HDPE/PVC Double Wall Corrugated Pipe Extrusion Machine:
Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing

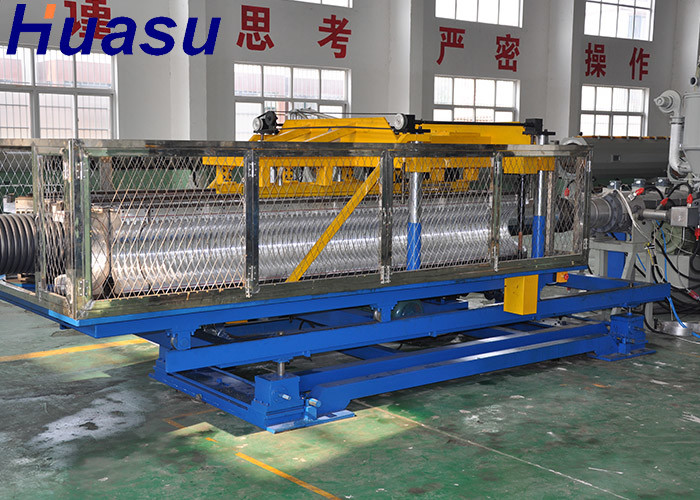

Single wall high speed corrugated pipe forming machine can produce two diameters or three diameters single wall corrugated pipe in the same mould blocks, which reduce the cost of the moulds and time for changing the mould blocks, increase the efficiency.
This kind of pipe is high temperature resistance, anti-erosion, anti-abrasion and with high strength, the pipe can be used as oil pipe in automobile braking system, and for high temperature egas, chemical liquid transferring.
