| Place of Origin: | CHINA |
| Brand Name: | Shandong Huasu Brand |
| Certification: | CE, ISO9001 |
| Model Number: | PVC Double Wall Corrugated Pipe Extrusion Machine |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $8,800-97,000/ Set |
| Packaging Details: | standard package or as required |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5 sets/month |
| Condition: | New Machine | Specification: | 10-50mm |
|---|---|---|---|
| Product Type: | PE Corrugated Pipe | Transport Package: | Standard Packing |
| Min. Order: | 1 SET | Computerized: | Yes |
| High Light: | HDPE DWC Pipe Extrusion Line,PVC DWC Pipe Extrusion Line,Irrigaation corrugated pipe extrusion line |
||

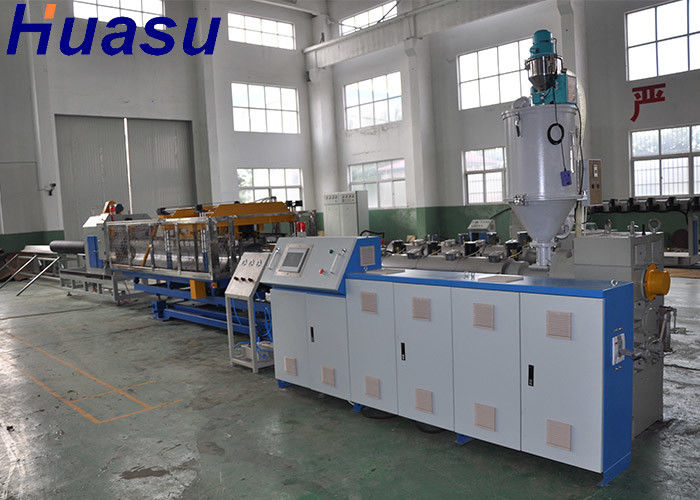

PVC|PE|PP|HDPE Water Gas Supply Irrigaation Single Double Wall Corrugated (DWC) Cable Line
The machine is used to produce single wall corrugated pipe by PE PVC PP or PA Nylon Materials. This kind of corrugated pipe normally size is 10-50mm diameters, popular used in machine tool, machine building, electric insulation protection system, electric automatic control system, public traffic equipment, motor, electric locomotive and air-conditioner equipment, etc.
Our machines is European design and meet 20m/min corrugated pipe extrusion in China market.
The high speed corrugated pipe machinery features are:
1. High speed high efficiency extruder, 20% less power than normal type but 20kg/h higher output. Our high speed efficiency extruder is enough to support 20m/min for 10-50mm diameter corrugated pipe.

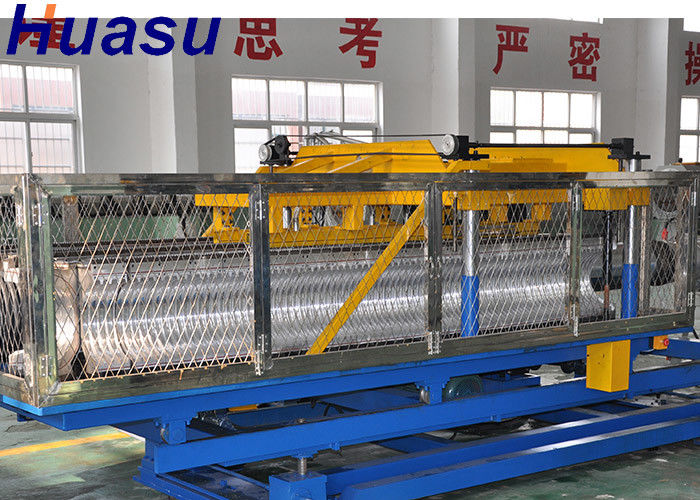

2. Good design and good quality forming machine. Gear driven and 100% covered water cooling system for forming machine to support high speed running.
3. Automatic winder, it could meets up to 25m/min speed coiling.
Single Wall plastic Corrugated pipe extruder machine, conduits corrugated pipe line Information:
Main technical parameter
| Model | SBG-50PVC | SBG-50PVC |
| Pipe range(mm) | Φ20-50 | Φ10-50 |
| Extruder model | SJ65/28 | SJ50/28 |
| Max. output(kg/h) | 80 | 60 |
| Main Motor power(kw) | 30 | 15-18kw |
| Length of production line(m) | 10 | 10 |
