| Place of Origin: | CHINA |
| Brand Name: | Shandong Huasu Brand |
| Certification: | CE, ISO9001 |
| Model Number: | LDPE tube making extruder machinery |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $15,000-300,000/ Set |
| Packaging Details: | standard package or as required |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets/month |
| Screw No.: | Multi-screw | Certification: | CE, ISO9001:2008, UL |
|---|---|---|---|
| Delivery Time: | 20-60days | Gurantee: | 1 Year |
| Motor: | Siemens | Specification: | 16-2000mm |
| High Light: | High Efficiency LDPE Tube Making Machine,LDPE Tube Making Machine Extruder,Pp Plastic Pipe Extruder |
||

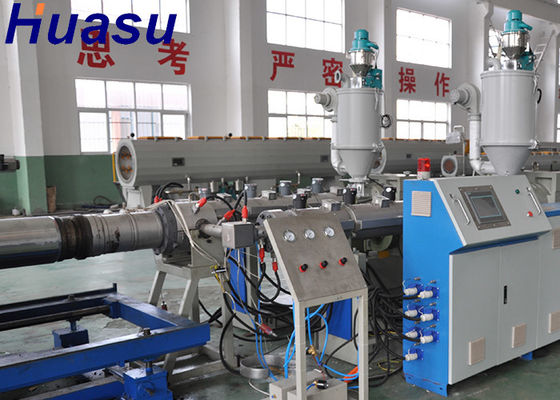

| Description of HDPE/PE pipe machine production line: |
| PE Pipe Extrusion/Production line is mainly used for producing gas supplying pipe, water supplying pipe, cable protection pipe etc. The pipe has some excellent features such as low temperature impact resistance, reliable connection, good stress crack resistance, good chemical resistance, good wear resistance, long using life, etc. our extrusion line is designed with high efficiency extruder and equipped with reducer which is high speed and low noise, Gravimetric dosing unit and ultrasonic thickness indicator can be assembled according to customer's demand to ascend the precise of the pipes . Turn key solution can be provided, like laser printer, crusher, shredder, water chiller, air compressor etc. to achieve high-grade and automatic tube production. |
Process flow of HDPE/PE pipe machine production line |
| Raw material+ Master Batches → Mixing → Vacuum Feeder →Plastic Hopper Drier→ Single Screw Extruder →Co-extruder for color string & Multi Layers → Mould → Vacuum Calibration Tank → Spray Cooling Water Tank → Haul-off → No Dust Cutter →Stacker → Final Product Inspecting &Packing |
