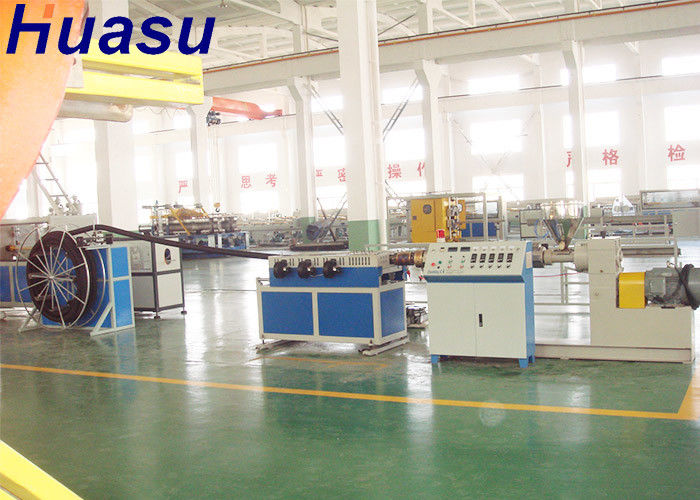

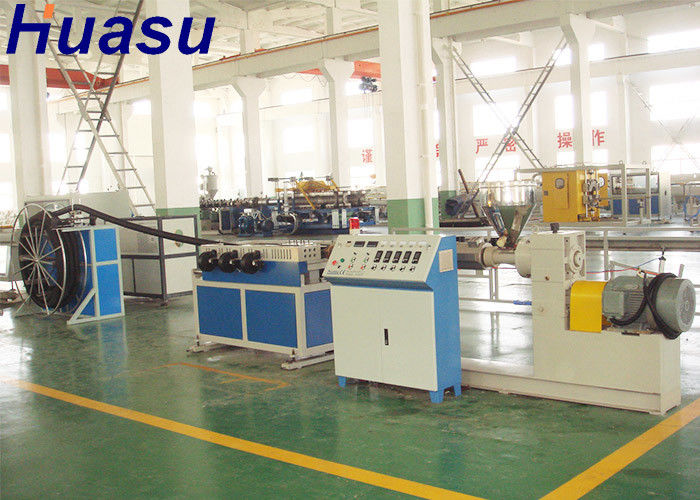

Single Screw HDPE Corrugated Pipe Machine With Pressure Water Cooling System

Single-Screw HDPE Corrugated Pipe Machine With Pressure Water Cooling System

Structure of ZC-180H corrugated pipe extrusion line

The ZC-180H double wall corrugated pipe extrusion line consists of five main parts: extruder, corrugator, cooling bath, automatic sawdust-free cutting machine and pipe unloading device.

Feature of corrugated pipe extrusion line

- Automatic feeder with Alarming on lacking of material,
- Harden treated screw and barrels for longer life span and durability.
- The complete extrusion line runs full-automatically.
- Pressure water-cooling for mould blocks greatly increase the production speed; the maximum speed is 17.5m/min.
- Efficient vacuum system for forming perfect pipes.
- Mould block temperature control system helps to optimize the pipe quality both appearance and inside.
- Easy and quick changeover between different sizes of moulds.
- Pipe Corrugator and extruders are synchronously controlled.
- Sawdust-free cutting, a hydraulic feed device with high precision can ensure flat and smooth cross-section of the pipes.
- The unloading device is equipped with automatic pipe weighting system.
