| Place of Origin: | CHINA |
| Brand Name: | Shandong Huasu Brand |
| Certification: | CE, ISO9001 |
| Model Number: | DWC Pipe Extrusion Pruduction Line |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $250,000/ Piece |
| Packaging Details: | standard package or as required |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets/month |
| Screw No.: | Single-screw | Customized: | Yes |
|---|---|---|---|
| Transport Package: | Wooden Package Or As Required | Trademark: | SD Huasu |
| High Light: | Horizontal Double Wall Corrugated Pipe Machine,PE Double Wall Corrugated Pipe Machine,Water Cooling pe pipe extrusion machine |
||
| Pipe Outer Diameter | ID40 mm Up to 1500mm (customized) |
| Model No. | Huasu SBG (customized) |
| Power Range | Up to 1000 (kW) (customized) |
| Production Capacity | Up to 2000 kg/h (customized) |
| Energy-Saving type | Available |
| Layers | SWC Single wall Corrugated Pipe or DWC Double Wall Corrugated pipe (customized) |
| Extruders | Single Screw Extruder or Conical screw Extruder (customized) |
| Material | HDPE PP PVC High density Polyethylene (customized) |
| Guarantee Time | 1 year (customized) |
| Certification | CE, TUV, SGS |
Properties of Plastic PE PP Horizontal Water Cooling High Speed Double Wall Corrugated Pipe Extrusion Machine
DWC pipe is mainly used for water drainage system. It is a fully computer controlled line. It features high and stable output capacity, and highly automatic operation. For HDPE, you can choose high efficient single screw extruder. For PVC, you can choose conical twin-screw extruder or parallel twin- screw extruder. Forming system consists mould and corrugator. Mould blocks can be easily changed and they have water cooling system. The belling process is on line. High precision cutting can be guaranteed by cutting machine. The production line can also be equipped with SIEMENS PLC system.This production line has nice appearance,higher automatic degree ,production reliable and stable.
Features of Plastic PE PP Horizontal Water Cooling High Speed Double Wall Corrugated Pipe Extrusion Machine:
1.The extrusion lines equipped with two extruders for two layer co-extrusion, stable extrusion, excellent plasticization.
2. Horizontal type high speed water cooling
3. Double flow channel spiral composite extrusion die head. the surface is Nitrided and polished.
4. Thickness regulating device for double wall.
5. Double wall belling on line.
6. Working table is three-dimensionally adjustable.
7. Automatic protection system starts and working table comes back when power off.
8. Automatic lubrication station.
9. Mould blocks are made of special aluminium alloy and features right weight, high strength, good wear resistant.
10. Air cooling and water cooling for well cooling corrugated moulds that forming pipe at higher speed.
11. The complete line adopts PLC micro-computer control system which can visually shows melt temperature and pressure, forming speed, error alarm and also has storage capacity of basic process.
12. High efficiency singe screw extruder (using granule material) and energy- saving twin- screw extruder (using powder or granule material) for your choice.
13. Imported ratio-adjusting valve adjusts forming pressure stable and reliable.

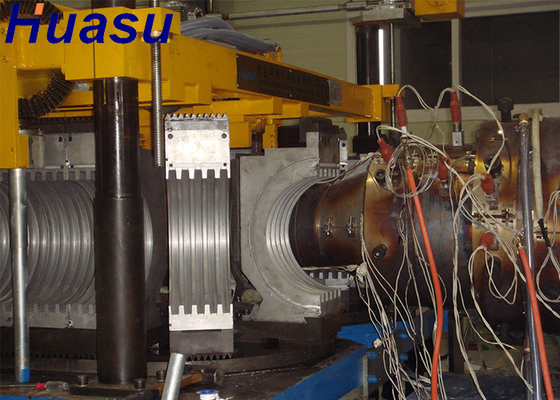

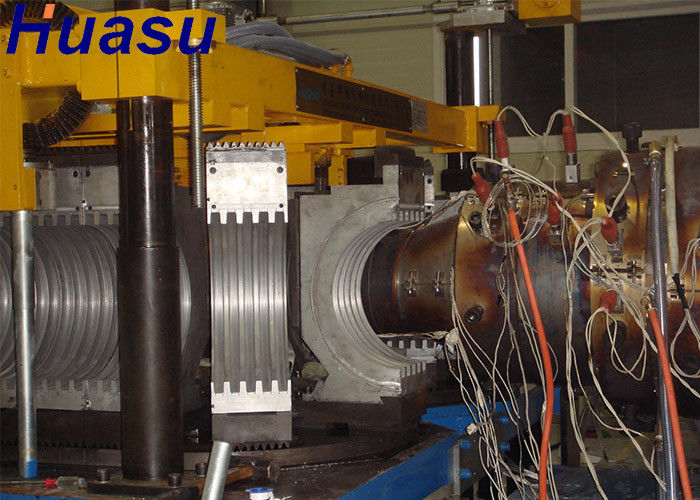

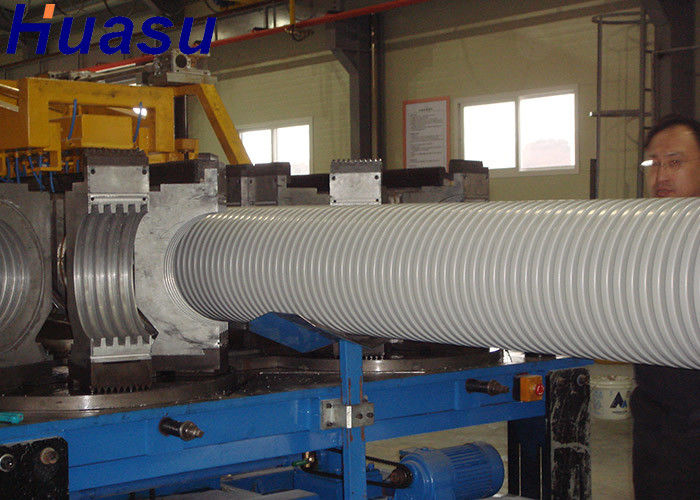

Photos of Plastic PE PP Horizontal Water Cooling High Speed Double Wall Corrugated Pipe Extrusion Machine
