Place of Origin: | CHINA |
Brand Name: | Shandong Huasu Brand |
Certification: | CE, ISO9001 |
Model Number: | DWC Pipe Extrusion Pruduction Line |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | US $100,000-800,000/ Set |
Packaging Details: | standard package or as required |
Delivery Time: | 30 working days |
Payment Terms: | T/T |
Supply Ability: | 5 sets/month |
Product Type: | HDPE PP Double-Wall Corrugated Pipes, Drainage Pipe | Screw No.: | Single-screw |
---|---|---|---|
Automation: | Automatic | Customized: | Customized |
Model NO.: | 200-800, 300-600, 600-1200/1500 | Output: | 20MT/day |
High Light: | Double Wall Corrugated Pipe Extrusion Lines,Triple Wall Corrugated Pipe Extrusion Lines,Triple Wall Corrugated Pipe Extruding Machinery |
No. | Name & Model | Quantity | |
01
|
Single screw extruder SJ-120/33 | 1 set | |
Single screw extruder SJ-120/33 | 1 set | ||
Single screw extruder SJ-120/33 | 1 set | ||
02 | Forming machine SBCJ-1200H | 1 set | |
03 | Spray water tank SBSC-1200H with haul-off machine | 1 set | |
04 | Planetary chip free cutting machine SBQG-1200H | 1 set | |
05 | Unloading bracket SBXL-1200H | 1 set | |
06 | PLC control system | 1 set | |
07
|
Molds 39 pairs(double-layer online expansion) | ID 700mm die head water sleeve mould block | 1 set |
ID 800mm die head water sleeve mould block | 1 set | ||
ID 900mm die head water sleeve mould block | 1 set | ||
ID 1000mm die head water sleeve mould block | 1 set | ||
ID 1100mm die head water sleeve mould block | 1 set | ||
ID 1200mm die head water sleeve mould block | 1 set | ||
08 | Spare parts | 1 set |
1.0 Single Screw Extruder SJ-120/33 (3 sets)
Screw structure: Spiral barrier type screw with mixing section, which greatly improves the plasticizing quality and output; especially suitable for high-efficiency extrusion of materials such as PEPP, and has a wide range of material adaptability;
Barrel structure: Segmented, asymmetrical slotting barrel design, the feed inlet has a water cooling system with automatic temperature control, which greatly improves the conveying efficiency of the feeding section;
Gearbox: The gearbox adopts a vertical structure, the cooling method is forced circulating oil cooling, with a circulating water cooling system. High torque, low noise, hard-tooth surface gear, gear grinding process, heavy-duty thrust bearing;
Automatic feeder, dryer: Automatic feeder inductive design, with material shortage alarm function. The dryer adopts an integrated design of drying and storage, automatic temperature control and intelligent display with all stainless steel lining;
Temperature control: Imported PLC control system, dual PID parameter temperature control, temperature control accuracy ±1℃;
Technical parameter
--Screw hardness of screw HV>740
--Barrel hardness of barrel HV>940
--Material 38CrMoALA, nitriding handling
--Barrel nitriding depth 0.4~0.7mm
--Screw nitriding depth 0.3~0.6mm
--Screw diameter 120mm
--L: D 33:1
Heating & Cooling
--Barrel heating zone 7 zones × 5kw
--Barrel cooling 7zones×0.37kw
--Barrel heating power 37.59kw
Driving
--AC motor 250kw
--Inverter ABB
--Gear material 20CrMnTi,
--Max. Out put 850kg/h
Auto Material - Feeding System
--Dryer 1pc
--Vacuum Feeder 1pc

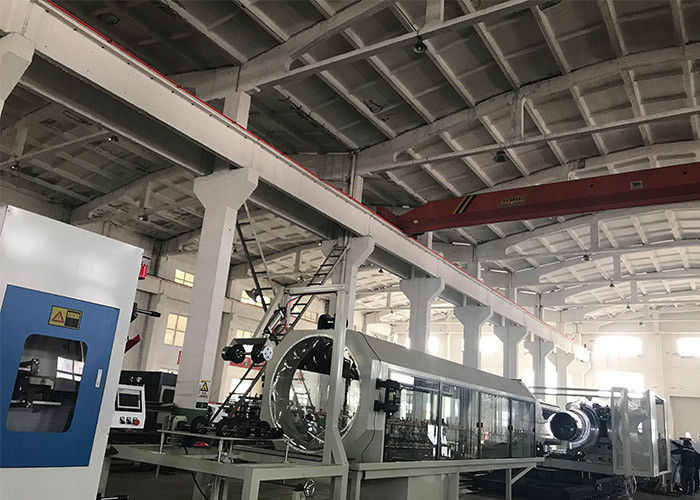

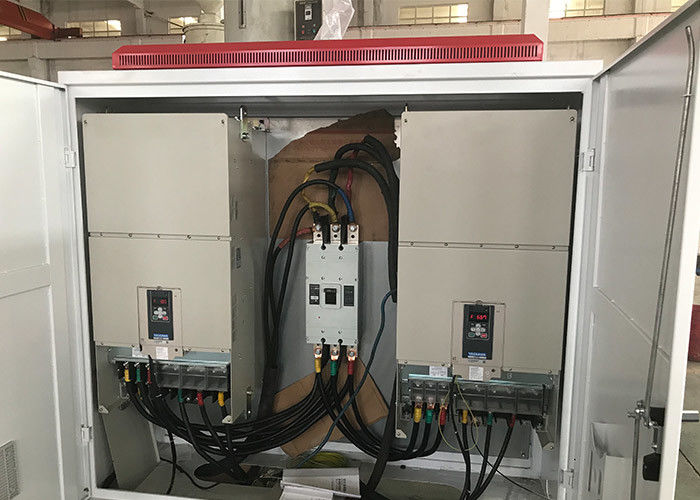

Photo of Double-Wall Corrugated Pipe Extrusion Lines
