PVC/PE Double Wall Corrugated Pipe Extrusion Line Production Line

  • PVC/PE Double Wall Corrugated Pipe Extrusion Line Production Line
  • PVC/PE Double Wall Corrugated Pipe Extrusion Line Production Line
Place of Origin CHINA
Brand Name Shandong Huasu Brand
Certification CE, ISO9001
Model Number DWC Pipe Extrusion Pruduction Line
Minimum Order Quantity 1 SET
Price US $61,500/ Set
Packaging Details standard package or as required
Delivery Time 30 working days
Payment Terms T/T
Supply Ability 5 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Type Large PE Pipes Automation Automatic
Advanced Design Low Energy Consumption Compact Structure Steady Operation
Transport Package Wooden Specification CE
Highlight

PE Double Wall Corrugated Pipe Extrusion Line

,

PVC Double Wall Corrugated Pipe Extrusion Line

,

PVC Corrugated Pipe Production Line
Leave a Message
Product Description

High Performance Extruder Machine PVC/PE Double Wall Corrugated Pipe Extrusion Production Line

Large diameter High Performance Extruder Machine PVC/PE Double Wall Corrugated Pipe Extrusion Production Line

No. Name & Model Quantity

01



 Single screw extruder SJ-120/33 1 set
Single screw extruder SJ-120/33 1 set
Single screw extruder SJ-120/33 1 set
     02 Forming machine SBCJ-1200H 1 set
     03 Spray water tank SBSC-1200H with haul-off machine 1 set
     04 Planetary chip free cutting machine SBQG-1200H 1 set
     05 Unloading bracket SBXL-1200H 1 set
     06 PLC control system 1 set

07



 Molds 39 pairs(double-layer online expansion) ID 700mm die head water sleeve mould block 1 set
ID 800mm die head water sleeve mould block 1 set
ID 900mm die head water sleeve mould block 1 set
ID 1000mm die head water sleeve mould block 1 set
ID 1100mm die head water sleeve mould block 1 set
ID 1200mm die head water sleeve mould block 1 set
     08 Spare parts 1 set



Forming Machine SBCJ-1200H

The molding machine adopts a closed molding module chain with a closed design. The modules and the mold base are accurately matched, so that each pair of molding modules can be interchanged, vacuum molded, and cooled by water. The mold base is made of high-quality alloy and tempered and nitrided. The dovetail groove is used for accurate positioning between the mold base and the module, mechanically locked, and easy to change specifications. The sliding part of the worktable is made of 40Cr, and the surface is strengthened by ion nitriding process, which has a long service life.

Technical Parameter of High Performance Extruder Machine PVC/PE Double Wall Corrugated Pipe Extrusion Production Line:

-- Production pipe range ID Φ700--Φ1200 mm

-- Max. moving speed of mould 2m/min

--Inverter ABB

--Quantity of mold blocks 39 pairs (Aluminum module)

--Molds track material 40Cr surface nitriding treatment

-- Driving motor 11/7.5kw

-- Vacuum pump 15kw*4sets

--Automatic lubrication system Automatic guide rail lubrication

--Working station adjustment Upper and lower electric adjustment separately or at the same time

--Forming machine adjustment 3D adjustment

--Automatic power cut protection system the worktable will automatically return to separate the molds and the water sleeve when the power suddenly cut off

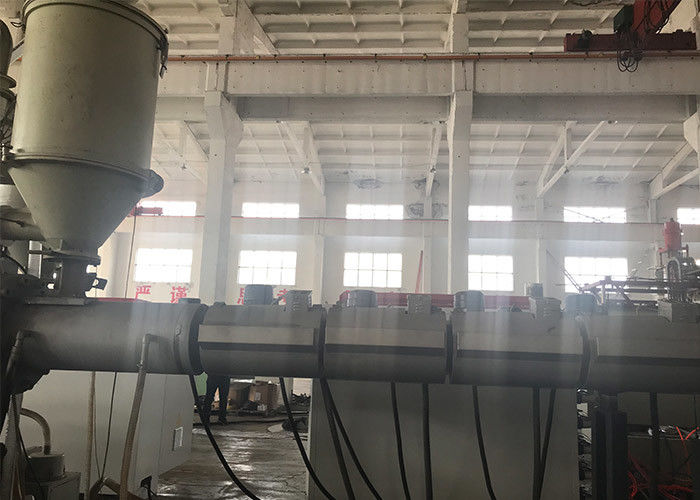

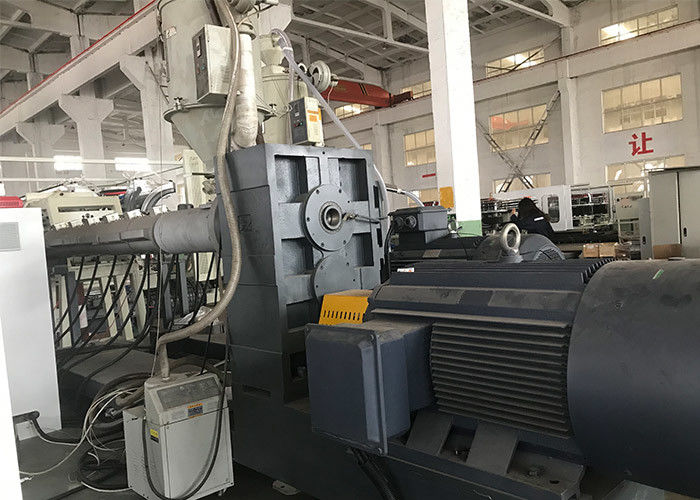

Photo of High Performance Extruder Machine PVC/PE Double Wall Corrugated Pipe Extrusion Production Line

PVC/PE Double Wall Corrugated Pipe Extrusion Line Production Line 0
