Plastic/PE/PP/PVC Double Wall Corrugated Pipe Extrusion Line Production Machine

Plastic/PE/PP/PVC Double Wall Corrugated Pipe Extrusion Line Production Machine

  • Plastic/PE/PP/PVC Double Wall Corrugated Pipe Extrusion Line Production Machine
  • Plastic/PE/PP/PVC Double Wall Corrugated Pipe Extrusion Line Production Machine
Plastic/PE/PP/PVC Double Wall Corrugated Pipe Extrusion Line Production Machine
Product Details:
Place of Origin: CHINA
Brand Name: Shandong Huasu Brand
Certification: CE, ISO9001
Model Number: DWC Pipe Extrusion Pruduction Line
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: US $55,000/ Piece
Packaging Details: standard package or as required
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 5 sets/month
Contact Now
Detailed Product Description
Single Screw Extruder: SJ-120/33 Forming Machine: SBCJ-1200H
Spray Water Tank: SBSC-1200H Planetary Chip Free Cutting Machine: SBQG-1200H
Unloading Bracket: SBXL-1200H PLC Control System: 1 Set
High Light:

PE Double Wall Corrugated Pipe Extrusion Line

,

PP Double Wall Corrugated Pipe Extrusion Line

,

PVC Double Wall Corrugated Pipe Production Machine

Plastic/PE/PP/PVC Double Wall Corrugated Pipe Extrusion Production Machine Line

Main Technical Performance of Plastic/PE/PP/PVC Double Wall Corrugated Pipe Extrusion Production Machine Line



Extruder Motor Max. Output Note
SJ120/33 250kw 850kg/h
SJ120/33 250kw 850kg/h
SJ120/33 250kw 850kg/h

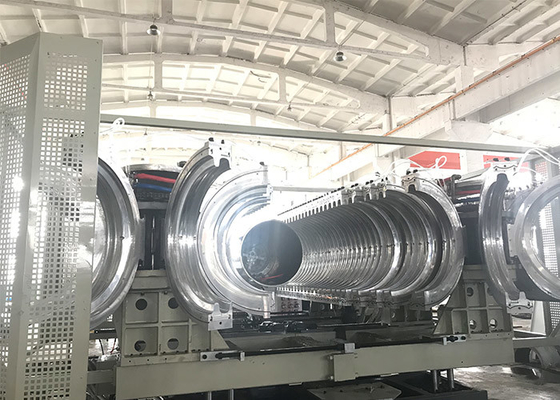

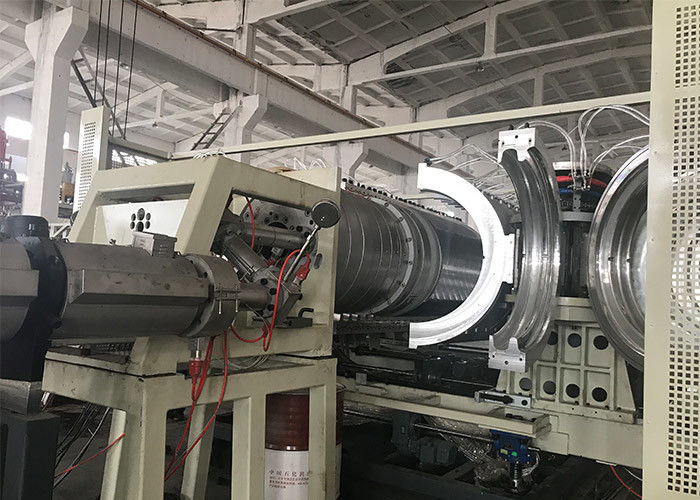

Photo of Plastic/PE/PP/PVC Double Wall Corrugated Pipe Extrusion Production Machine Line

Plastic/PE/PP/PVC Double Wall Corrugated Pipe Extrusion Line Production Machine 0



Single Screw Extruder SJ-120/33 (3 sets)

Screw structure: Spiral barrier type screw with mixing section, which greatly improves the plasticizing quality and output; especially suitable for high-efficiency extrusion of materials such as PEPP, and has a wide range of material adaptability;

Barrel structure: Segmented, asymmetrical slotting barrel design, the feed inlet has a water cooling system with automatic temperature control, which greatly improves the conveying efficiency of the feeding section;

Gearbox: The gearbox adopts a vertical structure, the cooling method is forced circulating oil cooling, with a circulating water cooling system. High torque, low noise, hard-tooth surface gear, gear grinding process, heavy-duty thrust bearing;

Automatic feeder, dryer: Automatic feeder inductive design, with material shortage alarm function. The dryer adopts an integrated design of drying and storage, automatic temperature control and intelligent display with all stainless steel lining;

Temperature control: Imported PLC control system, dual PID parameter temperature control, temperature control accuracy ±1℃;
