1.0 Single Screw Extruder SJ-120/33

Screw structure: Spiral barrier type screw with mixing section, which greatly improves the plasticizing quality and output; especially suitable for high-efficiency extrusion of materials such as PEPP, and has a wide range of material adaptability;

Barrel structure: Segmented, asymmetrical slotting barrel design, the feed inlet has a water cooling system with automatic temperature control, which greatly improves the conveying efficiency of the feeding section;

Gearbox: The gearbox adopts a vertical structure, the cooling method is forced circulating oil cooling, with a circulating water cooling system. High torque, low noise, hard-tooth surface gear, gear grinding process, heavy-duty thrust bearing;

Automatic feeder, dryer: Automatic feeder inductive design, with material shortage alarm function. The dryer adopts an integrated design of drying and storage, automatic temperature control and intelligent display with all stainless steel lining;

Temperature control: Imported PLC control system, dual PID parameter temperature control, temperature control accuracy ±1℃;

Technical parameter

--Screw hardness of screw HV>740

--Barrel hardness of barrel HV>940

--Material 38CrMoALA, nitriding handling

--Barrel nitriding depth 0.4～0.7mm

--Screw nitriding depth 0.3～0.6mm

--Barrel feeding section Slotted barrel with water-cooled forced feeding

--Screw diameter 120mm

--L: D 33:1

Heating & Cooling

--Barrel heating zone 7 zones × 5kw

--Barrel cooling 7zones×0.37kw

--Barrel heating power 37.59kw

Driving

--AC motor 315kw

--Inverter ABB

--Gearbox Hard gear surface

--Gear material 20CrMnTi,

--Gear type helical gear

Feeding - Dryer System

--Automatic vacuum feeding machine 1pc

--Automatic hopper dryer 1pc

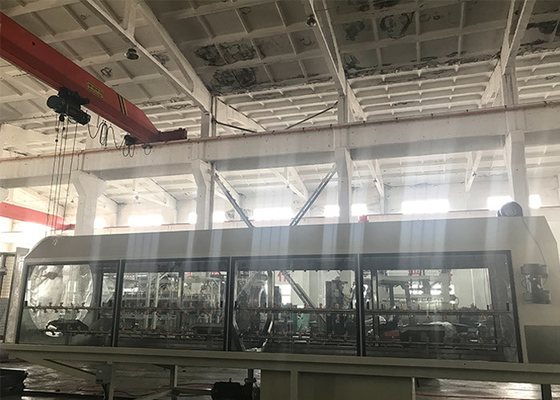

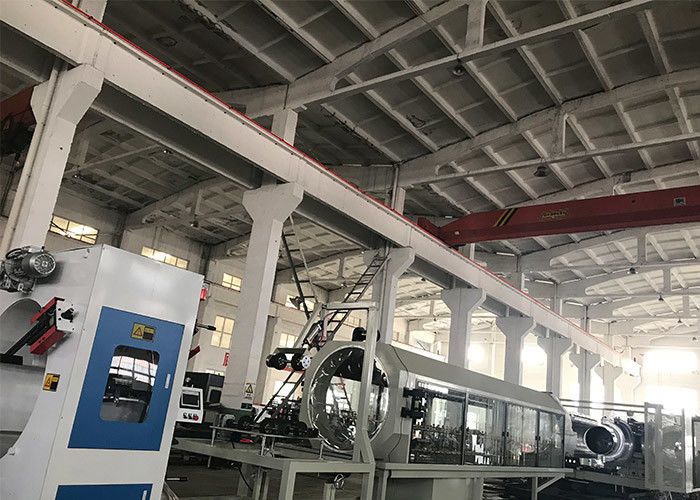

Photo of PE HDPE PVC Single Double Wall Corrugated Pipe Making Extrusion Production Line Machine
