600mm 800mm 100mm Plastic Double Wall Corrugated Pipe Making Machine Production Line
| Place of Origin | CHINA |
|---|---|
| Brand Name | Shandong Huasu Brand |
| Certification | CE, ISO9001 |
| Model Number | DWC Pipe Extrusion Pruduction Line |
| Minimum Order Quantity | 1 SET |
| Price | US $125,000-500,000/ Set |
| Packaging Details | standard package or as required |
| Delivery Time | 30 working days |
| Payment Terms | T/T |
| Supply Ability | 5 sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Screw Diameter (mm) | 120mm And 90mm | Motor | 250kw And 132kw |
|---|---|---|---|
| Machinery Test | Before Delivery | Molds | 200-600mm Available |
| Cutting Machine | Chip Free | Spare Parts | Free |
| Highlight | 600mm Double Wall Corrugated Pipe Making Machine,800mm Double Wall Corrugated Pipe Making Machine,100mm Double Wall Corrugated Pipe Making Machine |
||
Product Description
Plastic Double Wall Corrugated Pipe Making Machine/Pipe Production Line
Detailed technical information of Plastic Double Wall Corrugated Pipe Making Machine/Pipe Production Line
| No. | Name & Model | Quantity | |
| 01 | Single screw extruder SJ-120/33 | 1 set | |
| 02 | Single screw extruder SJ-90/33 | 1 set | |

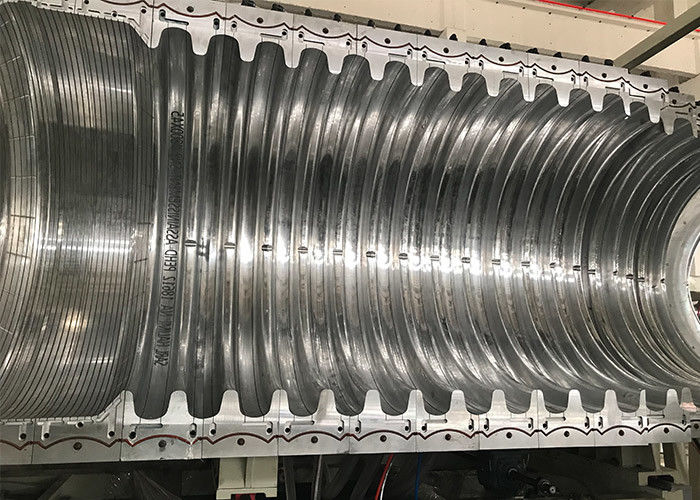

| 03 | Molds | ID200mm die head water sleeve mould block | 1 set |
| ID315mm die head water sleeve mould block | 1 set | ||
| ID400mm die head water sleeve mould block | 1 set | ||
| ID500mm die head water sleeve mould block | 1 set | ||
| 04 | Forming machine SBCJ-600 | 1 set | |
| 05 | Water cooling tank SBSC-600 with haul-off machine | 1 set | |
| 06 | Planetary chip free cutting machine SBQG-600 | 1 set | |
| 07 | Unloading bracket SBXL-600 | 1 set | |
| 08 | PLC control system | 1 set | |
| 09 | Spare parts | 1 set | |

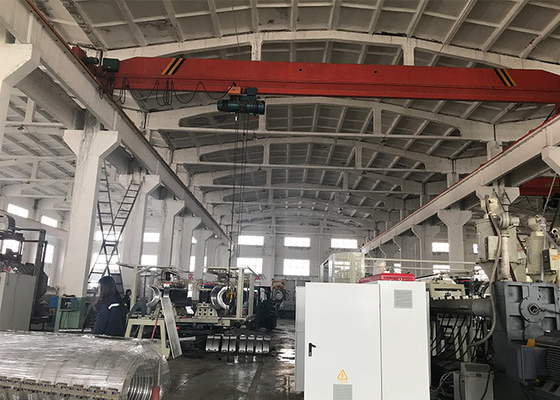

Photo of Plastic Double Wall Corrugated Pipe Making Machine/Pipe Production Line
Single Screw Extruder SJ-120/33
Screw structure: Spiral barrier type screw with mixing section, which greatly improves the plasticizing quality and output; especially suitable for high-efficiency extrusion of materials such as PEPP, and has a wide range of material adaptability;
Barrel structure: Segmented, asymmetrical slotting barrel design, the feed inlet has a water cooling system with automatic temperature control, which greatly improves the conveying efficiency of the feeding section;
Gearbox: The gearbox adopts a vertical structure, the cooling method is forced circulating oil cooling, with a circulating water cooling system. High torque, low noise, hard-tooth surface gear, gear grinding process, heavy-duty thrust bearing;
Automatic feeder, dryer: Automatic feeder inductive design, with material shortage alarm function. The dryer adopts an integrated design of drying and storage, automatic temperature control and intelligent display with all stainless steel lining;
Temperature control: Imported PLC control system, dual PID parameter temperature control, temperature control accuracy ±1℃;
Technical parameter
--Screw hardness of screw HV>740
--Barrel hardness of barrel HV>940
--Material 38CrMoALA, nitriding handling
--Barrel nitriding depth 0.4～0.7mm
--Screw nitriding depth 0.3～0.6mm
--Screw diameter 120mm
--L: D 33:1
Heating & Cooling
--Barrel heating zone 7 zones × 5kw
--Barrel cooling 7zones×0.37kw
--Barrel heating power 37.59kw
Driving
--AC motor 250kw
--Inverter Hitachi or ABB
--Gear material 20CrMnTi,
--Max. Out put 800kg/h
Auto Material - Feeding System
--Dryer 1pc
--Vacuum Feeder 1pc
For more info, please contact Ellen Liu.
