Water Drainage HDPE Double Wall Corrugated Pipe Line High Speed

High Speed Water Drainage HDPE Double Wall Corrugated Pipe Line SBG 600 For Russian Customer

Molds

Die Head and water sleeve

--Specification IDΦ200, Φ315, Φ400,Φ500

--Structure Using spiral split structure design, uniform and stable discharge

--Head heating power 45kw heating zone 10

--Material 40 Cr, Runner polishing, roughness up to 0.8

--Die adjustment method

Adopt circular bolt adjustment, convenient and quick adjustment

--Cooling sizing water sleeve A kind of water sleeve with ring stiffness

Mould Blocks

--Specification IDΦ200, Φ315, Φ400,Φ500

--Material LY12 High quality aluminum alloy

--Quantity 36 pairs including double-layer online expansion module

--Cooling type Water Cooling

Forming Machine SBCJ-600

The molding machine adopts a closed molding module chain with a closed design. The modules and the mold base are accurately matched, so that each pair of molding modules can be interchanged, vacuum molded, and cooled by water. The mold base is made of high-quality alloy and tempered and nitrided. The dovetail groove is used for accurate positioning between the mold base and the module, mechanically locked, and easy to change specifications. The sliding part of the worktable is made of 40Cr, and the surface is strengthened by ion nitriding process, which has a long service life.

Technical Parameter of High Speed Water Drainage HDPE Double Wall Corrugated Pipe Line SBG 600

-- Center height: 1250mm±50mm

-- Production pipe range ID Φ200--Φ600 mm

-- Max. moving speed of mould 6.5m/min

--Quantity of mold blocks 36 pairs(Aluminum module)

-- Driving motor 7.5/5.5kw

-- Vacuum pump 15kw*3sets

--Working station adjustment Upper and lower electric adjustment separately or at the same time

-Forming machine adjustment 3D adjustment

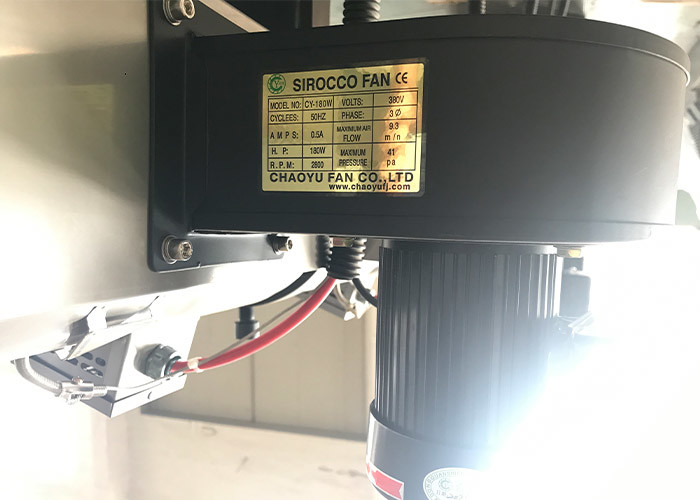

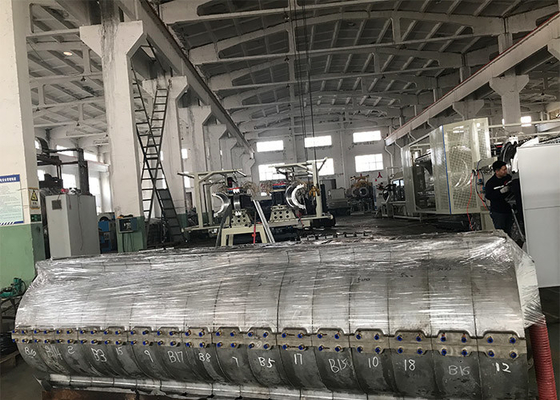

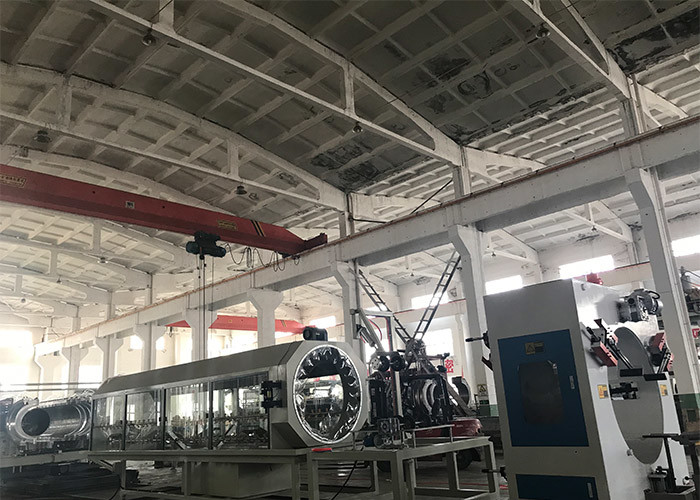

Photo of High Speed Water Drainage HDPE Double Wall Corrugated Pipe Line SBG 600
