Customized 200-800mm HDPE Pipe Extrusion Line Double Wall Corrugated Pipe Machine

Place of Origin CHINA
Brand Name Shandong Huasu Brand
Certification CE, ISO9001
Model Number DWC Pipe Extrusion Pruduction Line
Minimum Order Quantity 1 SET
Price US $20,000-390,000/ Set
Packaging Details standard package or as required
Delivery Time 30 working days
Payment Terms T/T
Supply Ability 5 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Applicable Industries Building Material Shops Production Speed 4m/min
Pipe Diameter 200mm /300mm/ 400mm Voltage 380V 50Hz
Motor Siemens Brand Transport Package Standard Or As Required
Highlight

800mm HDPE Pipe Extrusion Line

,

200mm HDPE Pipe Extrusion Line

,

800mm Double Wall Corrugated Pipe Machine

Leave a Message
Product Description

Factory Customized 200-800mm HDPE Double Wall Corrugated Pipe Making Equipment

Description of Factory Customized 200-800mm HDPE Double Wall Corrugated Pipe Making Equipment

SGB400(inner diameter Φ200-400mm) double wall corrugated pipe production line has two single-screw extruder. It has a dual-channel structure and nitriding polishing head. The forming machine adopts horizontal structure, chain drive design, advanced water cooling system, vacuum forming system, automatic lubrication system and advanced double-layer on-line expansion function. The material of the molds is aluminum alloy. The complete production line uses the German Siemens production of professional PLC control system. It has a high degree of automation, reliable operation, easy operation and so on.

The production line uses HDPE / PP as raw materials. The inner wall of the double wall corrugated pipe produced by this production line is very smooth and flat. And the outer wall is trapezoidal corrugated shape. This kind of double wall corrugated pipe has the characteristics of good corrosion resistance, high insulation, small flow resistance etc. as the ordinary plastic pipe, but also because of special inner and outer wall hollow ring structure, it has the advantages of high rigidity, light weight, high pressure resistance, good toughness, abrasion resistance, impact resistance, not easy damage, convenient construction, low installation cost, long service life etc.

The double wall corrugated pipe is generally connected by the expansion socket and the sealing ring. This can effectively prevent the impact of thermal expansion and contraction. The double wall corrugated pipe is widely used in the fields of highway, railway roadbed, subway engineering, waste landfill, tunnel, green belt, sports field and high water content caused by the slope protection and other drainage areas.

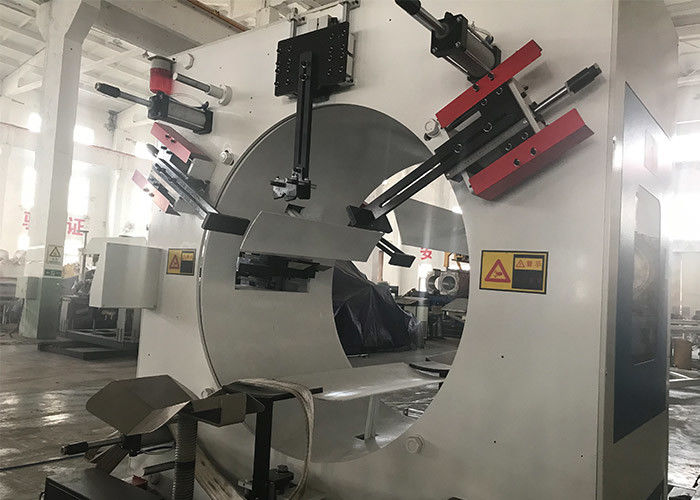

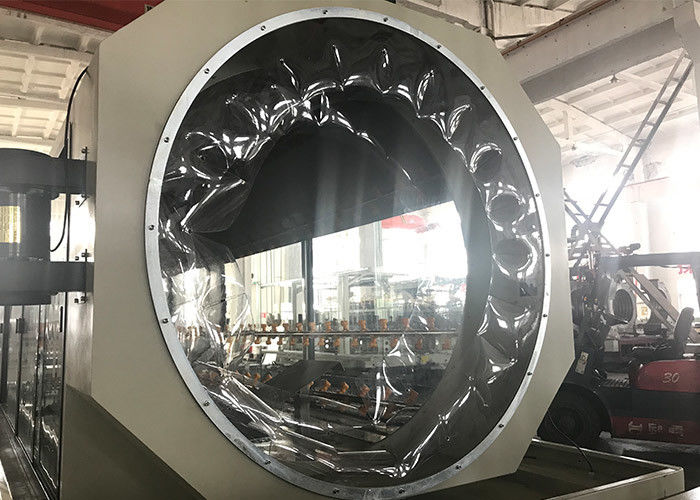

Photo of Factory Customized 200-800mm HDPE Double Wall Corrugated Pipe Making Equipment

Customized 200-800mm HDPE Pipe Extrusion Line Double Wall Corrugated Pipe Machine 0



Model SGB800 SGB600 SGB400 SGB250 SGB160
Structure Form Horizontal Horizontal
Materials Particle / powder
Raw Materials HDPE/FRPP/PVC
Pipe Diameter 225-800mm 250-600mm 225-400mm 90-250mm 75-160mm
Max Extrusion Output 850kg/h 700kg/h 600kg/h 350kg/h 200kg/h
Expansion Mode Belling-on-line,double-wall socket joint
Forming Speed 0.25-3m/min 0.25-4m/min 0.25-4m/min 0.5-5m/min 0.6-5m/min
Centre Height 1600mm 1600mm 1150mm 1150mm 1000mm
Mold Blocks 32pairs 32pairs 40pairs 48pairs 48pairs
