| Place of Origin: | CHINA |
| Brand Name: | Shandong Huasu Brand |
| Certification: | CE, ISO9001 |
| Model Number: | DWC Pipe Extrusion Pruduction Line |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $20,000-320,000/ Set |
| Packaging Details: | standard package or as required |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5 sets/month |
| Screw Channel Structure: | Deep Screw | Automation: | Automatic |
|---|---|---|---|
| Transport Package: | Film And Wood Package | Origin: | Qingdao |
| Qingdao: | SJ120/33 | Max. Output: | 800kg/h |
| High Light: | Two Extruders Double Wall Corrugated Pipe Making Machine,800kg/h Double Wall Corrugated Pipe Making Machine,Two Extruders Dwc Pipe Extrusion Machine |
||
Pipe list and pressure grade of Double Wall Corrugated Pipe Making Machine/Dwc Pipe Extrusion Machine
| NO. | Internal Diameter( mm) | Outside Diameter ( mm) | Remark |
| 1 | 200 | ||
| 2 | 315 | ||
| 3 | 400 | ||
| 4 | 500 |
Environment Condition of Double Wall Corrugated Pipe Making Machine/Dwc Pipe Extrusion Machine
| Location | Workshop |
| Power Supply | No dangerous area, No power stop area |
| Humidity degree | ≤85% |
| Temperature | 0-36℃ |
Work Condition of Double Wall Corrugated Pipe Making Machine/Dwc Pipe Extrusion Machine
| Power | 380 V x 50 Hz x 3 Phase (according to customer requirement) |
| Total Power | 515kw,energy consumption is about 250kw |
| Cooling Water | Recycling water. ≤20℃, ≥0.3Mpa, ～3T/h |
| Compressed air | 1.0m3/min, ＞0.5Mpa |
Main Technical Performance of Double Wall Corrugated Pipe Making Machine/Dwc Pipe Extrusion Machine
| Extruder | Motor | Max. Output | Note |
| SJ120/33 | 250kw | 800kg/h | |
| SJ90/33 | 132kw | 450kg/h |
Detailed technical information of Double Wall Corrugated Pipe Making Machine/Dwc Pipe Extrusion Machine
| No. | Name & Model | Quantity | |
| 01 | Single screw extruder SJ-120/33 | 1 set | |
| 02 | Single screw extruder SJ-90/33 | 1 set | |
| 03 | Molds | ID200mm die head water sleeve mould block | 1 set |
| ID315mm die head water sleeve mould block | 1 set | ||
| ID400mm die head water sleeve mould block | 1 set | ||
| ID500mm die head water sleeve mould block | 1 set | ||
| 04 | Forming machine SBCJ-600 | 1 set | |
| 05 | Water cooling tank SBSC-600 with haul-off machine | 1 set | |
| 06 | Planetary chip free cutting machine SBQG-600 | 1 set | |
| 07 | Unloading bracket SBXL-600 | 1 set | |
| 08 | PLC control system | 1 set | |
| 09 | Spare parts | 1 set | |

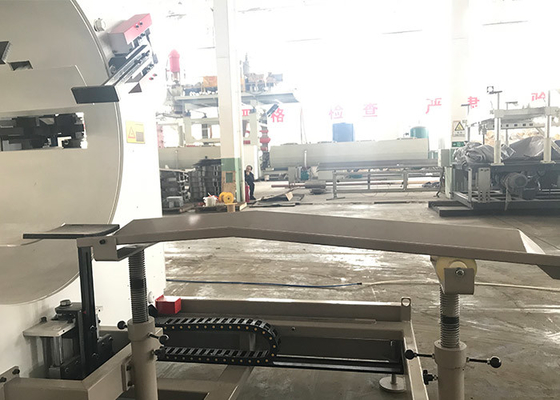

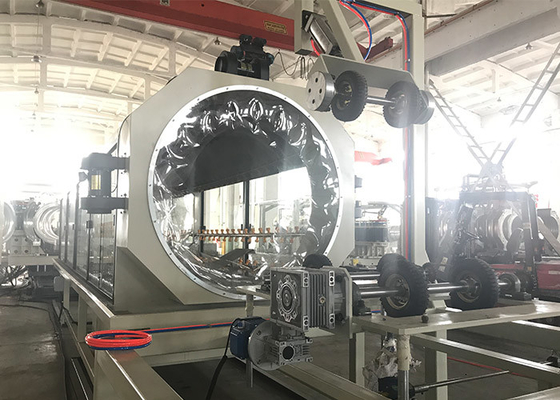

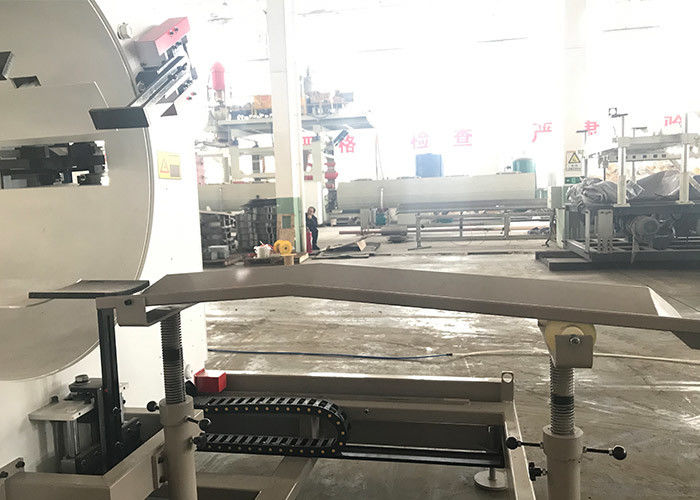

Photo of Double Wall Corrugated Pipe Making Machine/Dwc Pipe Extrusion Machine
